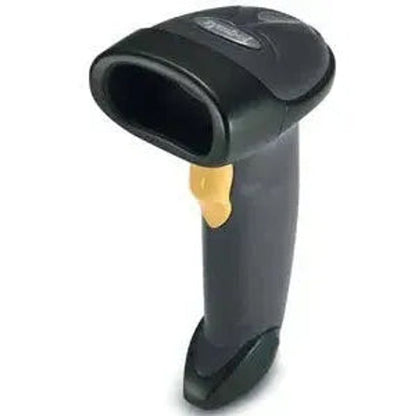

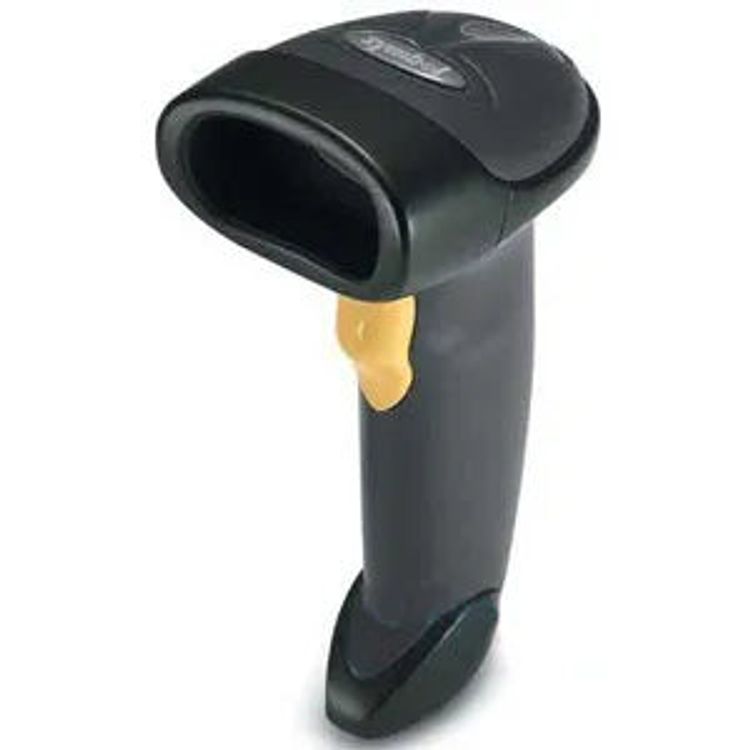

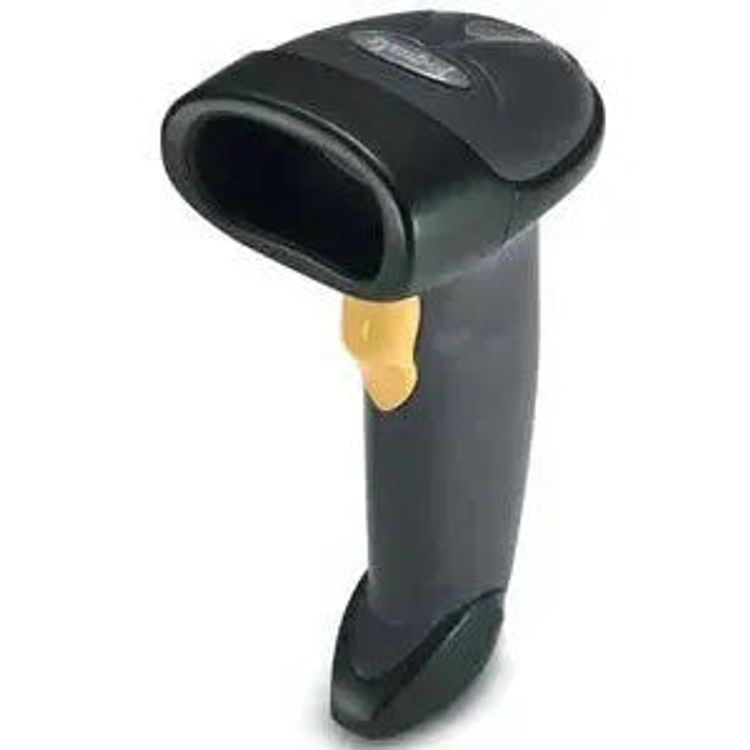

Zebra LS2208 1D USB Barcode Scanner Kit with Stand - LS2208-SR20007R-UR

The Zebra LS2208 LS2208-SR20007R-UR is a wired handheld 1D laser barcode scanner kit for retail tills, point-of-sale stations, stockrooms, libraries and general asset tracking. The LS2208 is designed around fast, familiar trigger scanning with broad 1D barcode support and a durable housing for high-use commercial environments.

The scanner reads at up to 100 scans per second using a 650 nm single-line laser. This configured USB kit includes the scanner, USB cable and stand, making it suitable for both handheld scanning and convenient counter-top placement.

Scanning performance

• Single-line 650 nm Class 2 laser scanning
• Scan rate: up to 100 scans per second
• Minimum Code 39 element resolution: 3 mil
• Minimum print contrast: 20%
• Supports major 1D symbologies including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, Interleaved 2 of 5 and GS1 DataBar families

Durability and environment

• Designed to withstand multiple 1.5 m drops to concrete
• Designed for 500 tumbles at 0.5 m
• IP30 environmental sealing
• Operating temperature: 0 to 50°C
• Storage temperature: -40 to 70°C
• Ambient-light tolerance up to approximately 86,000 lux

Physical details

• Scanner dimensions: approx. 152 x 64 x 85 mm
• Scanner weight: approx. 150 g
• Colour: Black
• Host interface for this kit: USB

Configured kit

• Zebra LS2208 1D scanner
• USB interface cable
• Scanner stand

Buying note: The LS2208 is a 1D laser scanner. Buyers needing QR codes or other 2D matrix codes should choose a compatible 2D imager instead.

MPN: LS2208-SR20007R-UR
