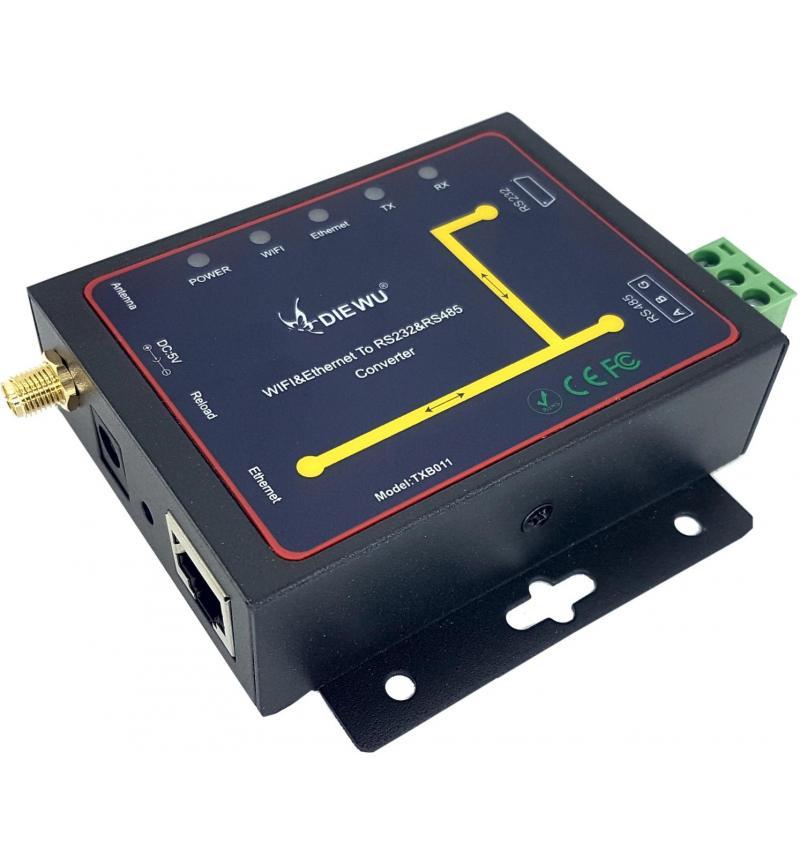

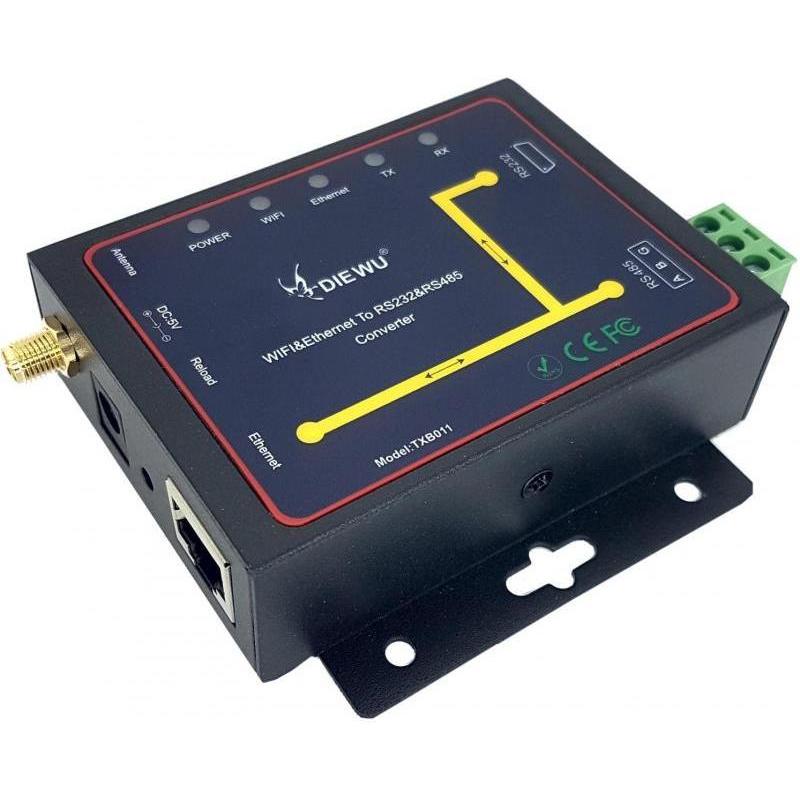

WIFI TO RS232/RS485

The WiFi to RS232/RS485 Serial Converter is a compact, reliable, and cost-effective solution for connecting legacy serial devices to modern wireless or Ethernet networks. Designed with an industrial-grade Ralink RT5350F chipset, this device ensures stable communication, flexible integration, and simplified remote management.

With support for TCP Server, TCP Client, UDP, and Virtual COM (VCOM) modes, the TXB011 provides seamless serial-to-IP connectivity. It supports both RS232 and RS485 ports simultaneously, making it ideal for automation, industrial control, POS systems, PLCs, energy monitoring, and other IoT applications.

Key Features

• Dual Serial Ports: 1 × RS232 and 1 × RS485 can work at the same time
• Flexible Networking: Supports WiFi (802.11 b/g/n, AP & Client mode) and Ethernet (10/100Mbps Auto MDI/MDIX)
• High Compatibility: Works with TCP/UDP protocols and virtual COM mapping
• Wide Baud Rate Support: From 110bps up to 115200bps
• LED Indicators: Clear status display for Power, WiFi, Ethernet, TX, and RX
• Low Power Consumption: Operates on DC 5V with max 1.5W power draw
• Rugged Design: Operating temperature −10°C to 55°C, storage −40°C to 85°C
• Easy Setup: Built-in reset/load default key and support for P2P control

Specifications

• Model: TXB011
• Chipset: Ralink RT5350F
• Ethernet Standards: IEEE 802.3, 802.3u, 802.3x, 802.3az
• WiFi Data Rates: 11b – 11Mbps, 11g – 54Mbps, 11n – 150Mbps
• Dimensions: 86 × 84 × 25mm
• Humidity Range: 10%–90% (operating, non-condensing)
