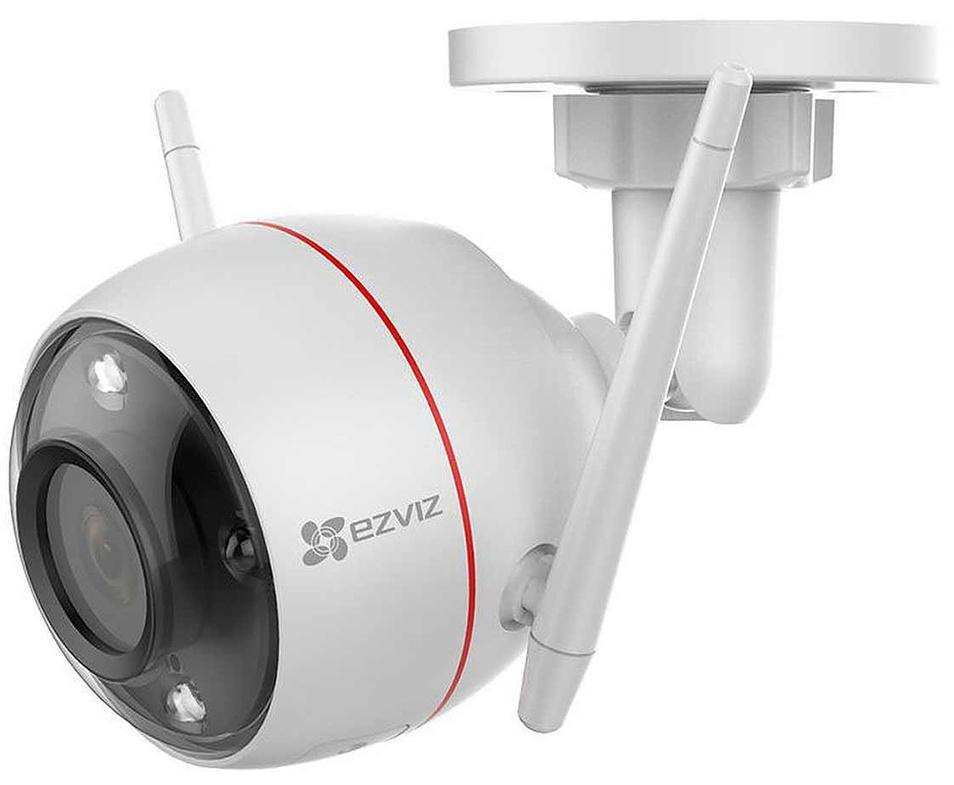

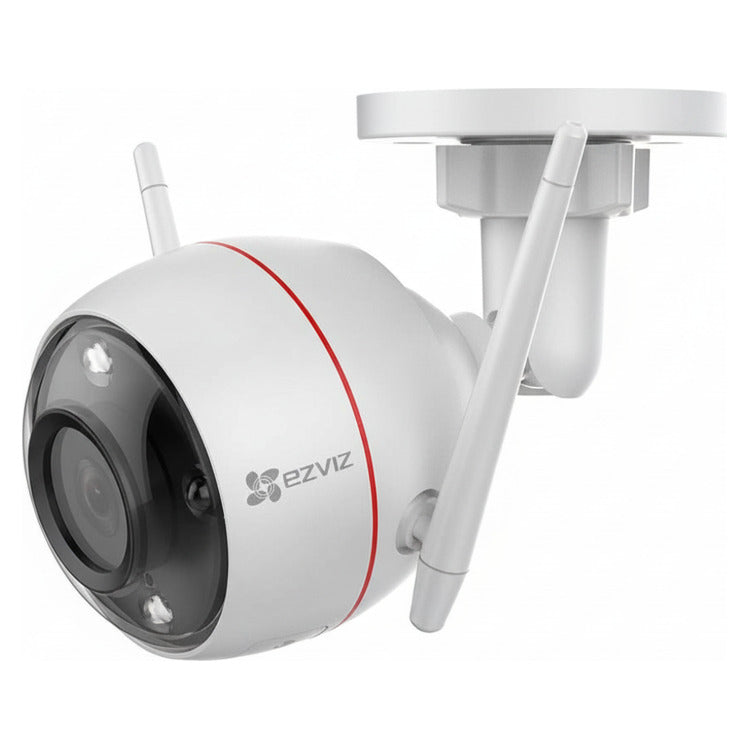

EZVIZ C3W PRO SMART HOME CAM

EZVIZ C3W PRO SMART HOME CAMERA

Specifications:

Image Sensor: 1/2.7”Progressive Scan CMOS

Minimum Illumination: 0.01 lux @(F1.6, AGC ON), 0 lux with IR

Shutter Speed: Self-adaptive shutter

Lens: 2.8 mm @F1.6, view angle: 100° horizontal, 121° diagonal 4 mm @F1.6, view angle: 82° horizontal, 97° diagonal

Lens Mount: M12

DNR: 3D DNR

WDR: Digital WD

Night Vision Distance (Black/White Night Vision Mode): Max. 30 m (98.43 ft.)

Video Compression: H.265 / H.264

Video Bit Rate: Quad HD; Full HD; HD; Standard. Adaptive bit rate.

Max. Resolution: 1920 x 1080

Frame Rate: Max: 30 fps; Self-adaptive during network transmission

Storage: MicroSD card slot (Max. 256 GB)

Wired Network: RJ45 × 1(10 M / 100 M Adaptive Ethernet Port)

User Defined Alarm Tones: Supports

Wi-Fi Pairing: AP Pairing

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol: EZVIZ Cloud Proprietary Protocol

General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Max. Bitrate: 2M

Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth: Supports 20 MHz

Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps

Power Supply: DC 12 V / 1 A

Power Consumption: Max. 6 W

IP Grade: IP67
