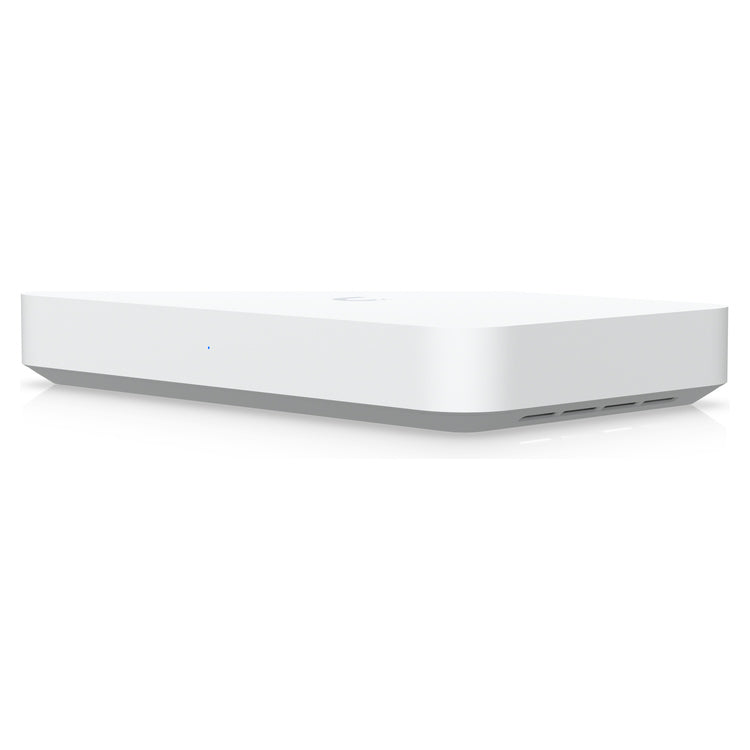

Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
Bring routing and network control into your installation. Check internet handoff, local port requirements and the supported management application when planning your network.
Key features
Default WAN Ports: (1) 10G SFP+ (1) 10 GbE RJ45
2.5 GbE RJ45: 4 (2.5G/1G/100M/10M)
10 GbE RJ45: 1 (10G/2.5G/1G)
10G SFP+: 2 (10G/1G)
Specifications
Model / SKU
UXG-FIBER-EU
Default WAN Ports
(1) 10G SFP+ (1) 10 GbE RJ45
2.5 GbE RJ45
4 (2.5G/1G/100M/10M)
10 GbE RJ45
1 (10G/2.5G/1G)
10G SFP+
2 (10G/1G)
Power Method
DC jack (54V DC/1.1A)
IDS/IPS Throughput
5 Gbps
Dimensions
212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2")
Weight
605 g (1.3 lb)
Supported Voltage Range
100–240V AC
Max. Power Consumption
25W (Excluding PoE output)
Form Factor
Compact desktop
Management
Ethernet Bluetooth
Enclosure Material
Polycarbonate
Voltage Range PoE Mode
50–57V
Power Supply
54V DC/1.1A (Adapter included)
Installation and compatibility
Match your internet handoff and local network connections to the listed interfaces. Port link rates and inspected routing throughput describe different capabilities.
