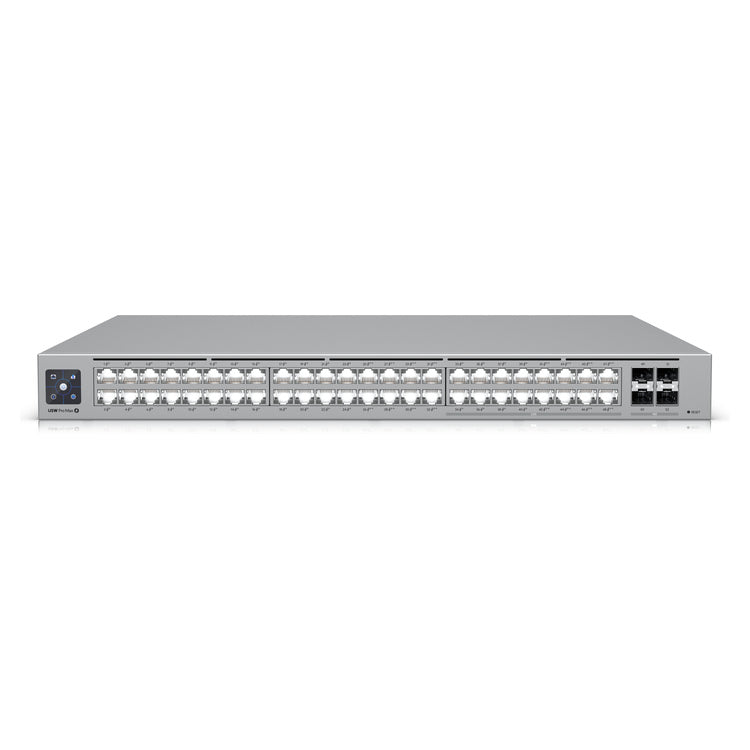

• Ubiquiti USW-Pro-Max-48-PoE (720W) network switch – product overview

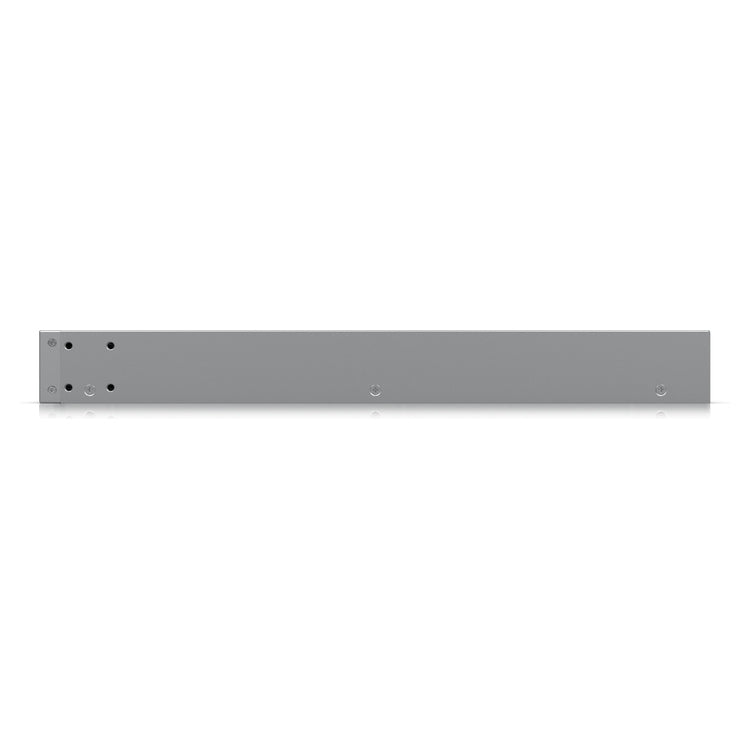

  • Ubiquiti USW-Pro-Max-48-PoE (720W) network switch – detail view

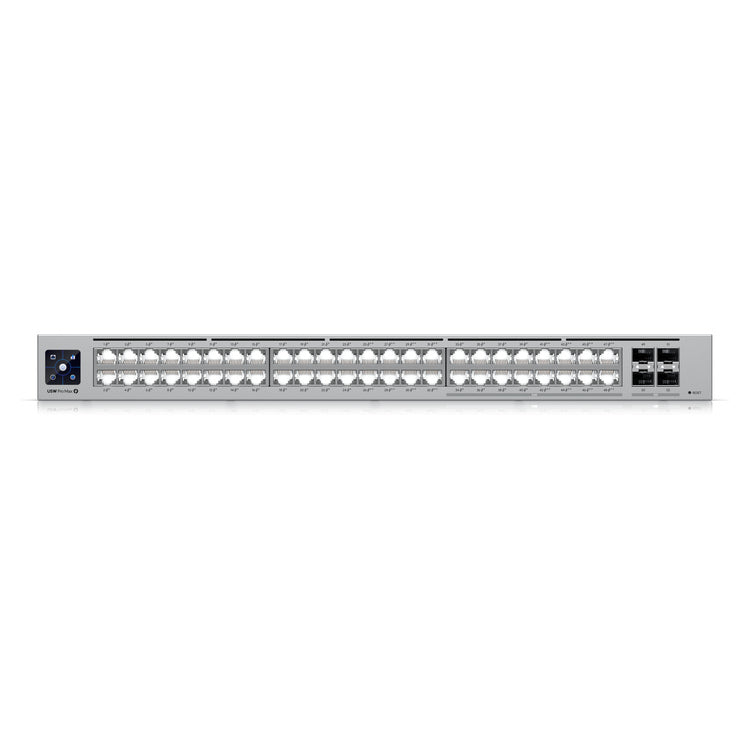

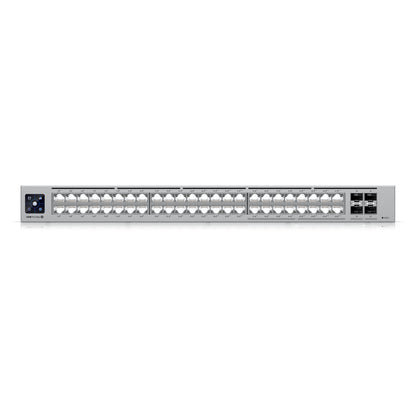

  • Ubiquiti USW-Pro-Max-48-PoE (720W) network switch – alternate view
1 3

Ubiquiti Switch Pro Max 48 PoE – USW-PRO-MAX-48-POE-EU

R 34,270.00
R 34,270.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Complete your setup
Loading recommendations...

Switch Pro Max 48 PoE

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.

Connect network equipment through a dedicated Ethernet switch. Match the port speeds, uplinks and power requirements to your installation before connecting powered devices.

Key features

  • 1 GbE RJ45: 32 (24 PoE+; 8 PoE++) (1G/100M/10M)
  • 2.5 GbE RJ45: 16 (8 PoE+; 8 PoE++) (2.5G/1G/100M/10M)
  • 10G SFP+: 4 (10G/1G)
  • Power Method: (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input

Specifications

Model / SKU USW-PRO-MAX-48-POE-EU
1 GbE RJ45 32 (24 PoE+; 8 PoE++) (1G/100M/10M)
2.5 GbE RJ45 16 (8 PoE+; 8 PoE++) (2.5G/1G/100M/10M)
10G SFP+ 4 (10G/1G)
Power Method (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Max. PoE Output Up to PoE++
Total PoE Availability 720W
Dimensions 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Weight Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb)
Supported Voltage Range 100–240V AC
Max. Power Consumption 100W (Excluding PoE Output) 820W (Including PoE Output)
Form Factor Rack mount (1U)
Management Ethernet AR
Enclosure Material SGCC steel
Total Non-Blocking Throughput 112 Gbps
Power Supply AC/DC, internal, 870W

Installation and compatibility

Check the listed interfaces, power requirements and physical dimensions against your equipment before ordering.
