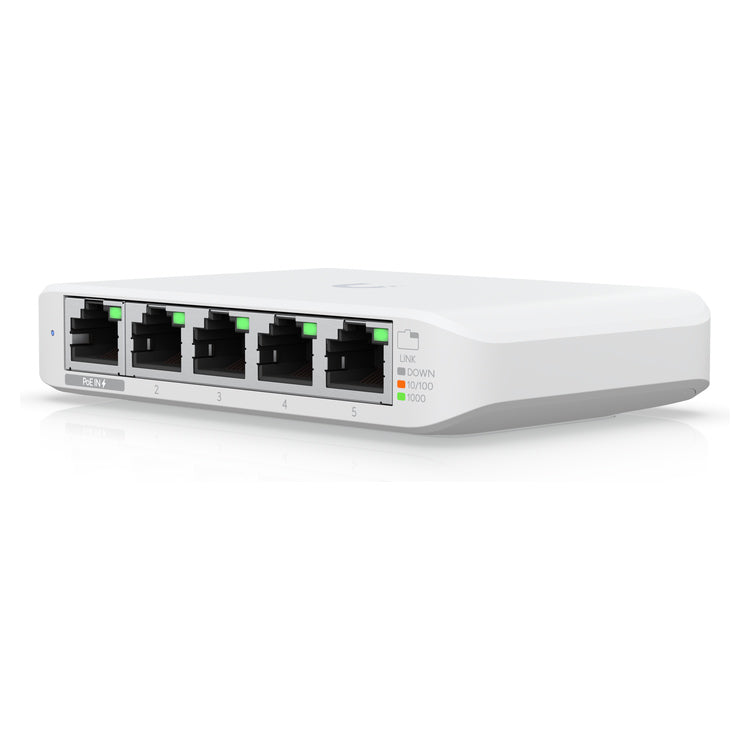

A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.
Connect network equipment through a dedicated Ethernet switch. Match the port speeds, uplinks and power requirements to your installation before connecting powered devices.
Key features
1 GbE RJ45: 5 (1G/100M/10M)
Power Method: (1) USB Type-C, 5V DC, 1A (1) PoE
Supported Voltage Range: 4.8—5.2V DC/USB 44V—57V PoE
Max. Power Consumption: 2.5W
Specifications
Model / SKU
USW-FLEX-MINI-EU
Selected version
Single Unit
1 GbE RJ45
5 (1G/100M/10M)
Power Method
(1) USB Type-C, 5V DC, 1A (1) PoE
Dimensions
107 x 70 x 21 mm (4.2 x 2.8 x 0.8")
Weight
150 g (5.3 oz)
Supported Voltage Range
4.8—5.2V DC/USB 44V—57V PoE
Max. Power Consumption
2.5W
Form Factor
Compact desktop
Management
Ethernet
Enclosure Material
Polycarbonate
Total Non-Blocking Throughput
5 Gbps
Power Supply
AC/DC, external, 5W
Installation and compatibility
Check the listed interfaces, power requirements and physical dimensions against your equipment before ordering.
