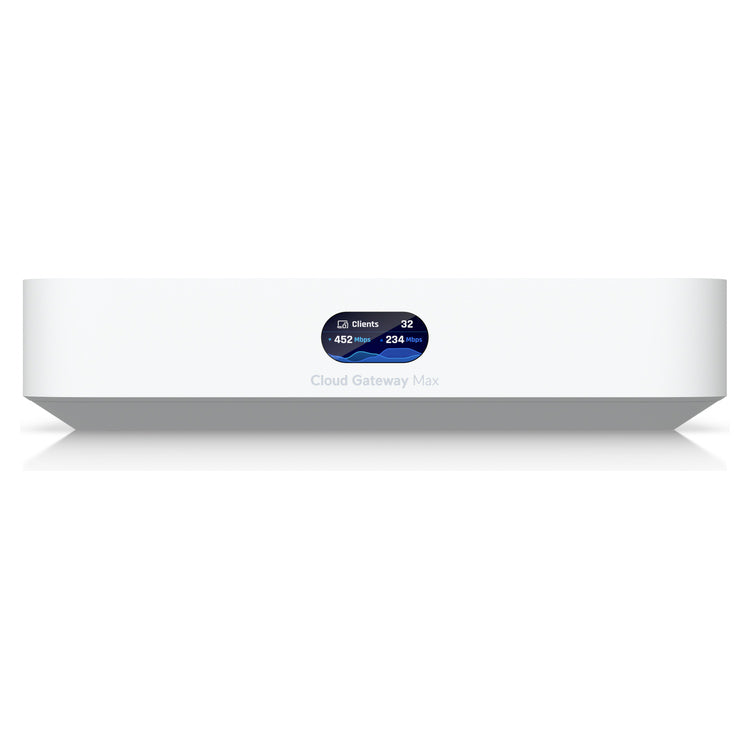

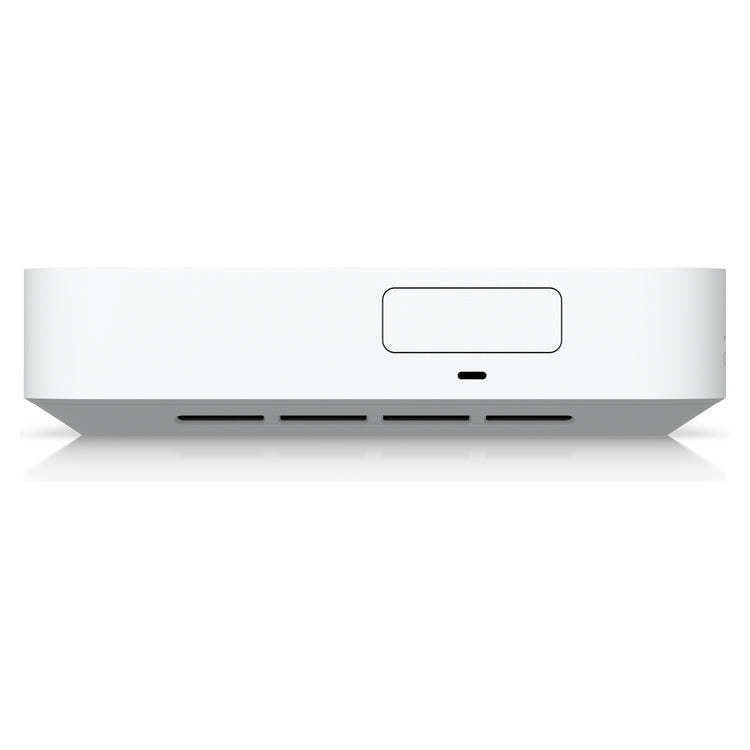

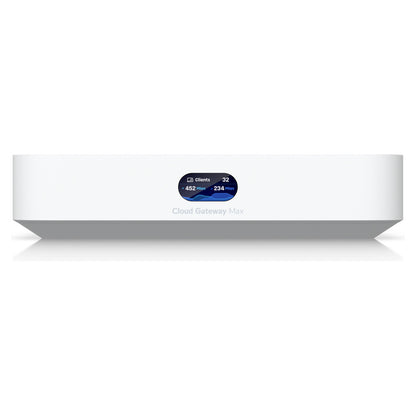

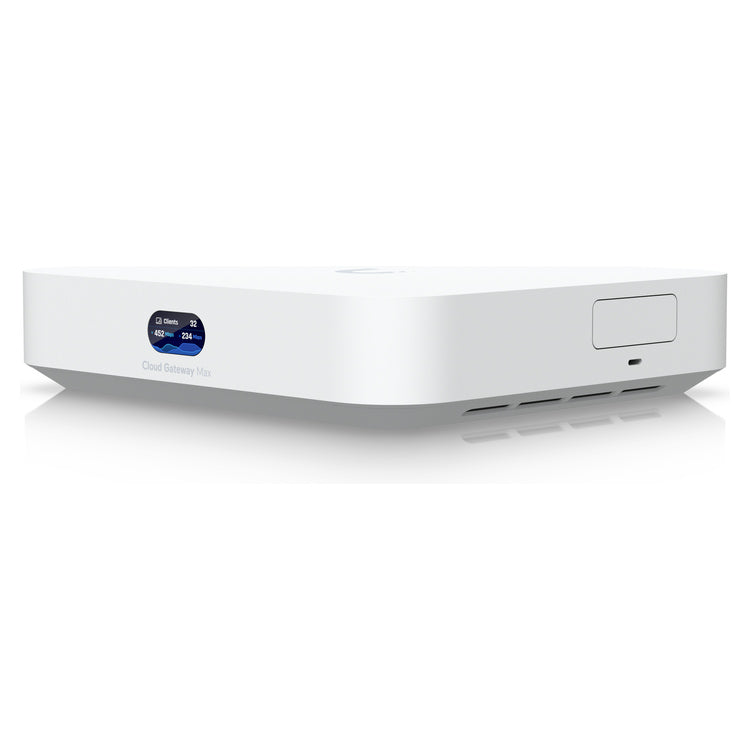

Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 2.3 Gbps IPS routing, and selectable NVR storage.
Bring routing and network control into your installation. Check internet handoff, local port requirements and the supported management application when planning your network.
Key features
Default WAN Ports: (1) 2.5 GbE RJ45
2.5 GbE RJ45: 5 (2.5G/1G/100M/10M)
Power Method: USB type C (5V DC/5A)
IDS/IPS Throughput: 2.3 Gbps
Specifications
Model / SKU
UCG-MAX-EU
Default WAN Ports
(1) 2.5 GbE RJ45
2.5 GbE RJ45
5 (2.5G/1G/100M/10M)
Power Method
USB type C (5V DC/5A)
IDS/IPS Throughput
2.3 Gbps
Dimensions
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight
Without SSD: 460 g (1 lb) With SSD: 519 g (1.1 lb)
Supported Voltage Range
100–240V AC
Max. Power Consumption
16.1W
Form Factor
Compact desktop
NVR Storage
Selectable NVMe SSD up to 2 TB
Management
Ethernet Bluetooth
Enclosure Material
Polycarbonate
Power Supply
USB type C (5V DC/5A) (Adapter included)
Installation and compatibility
Match your internet handoff and local network connections to the listed interfaces. Port link rates and inspected routing throughput describe different capabilities.
