Ubiquiti airFiber 60 Long-Range – AF60-LR-EU
Regular price
R 8,740.00
Regular price
Sale price
R 8,740.00
Tax included.
Shipping calculated at checkout.
Complete your setup
Loading recommendations...

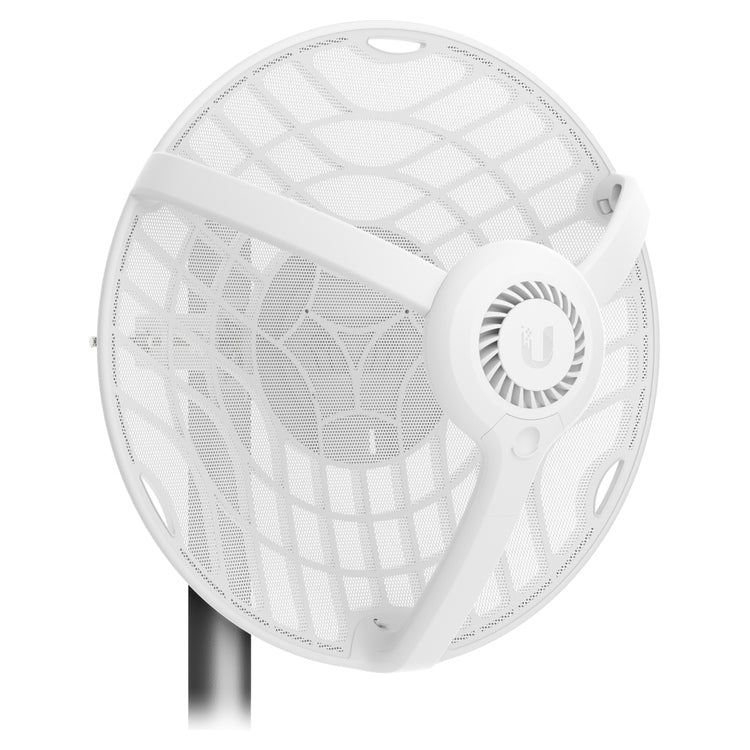

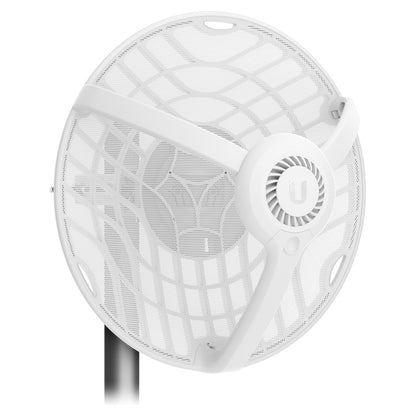

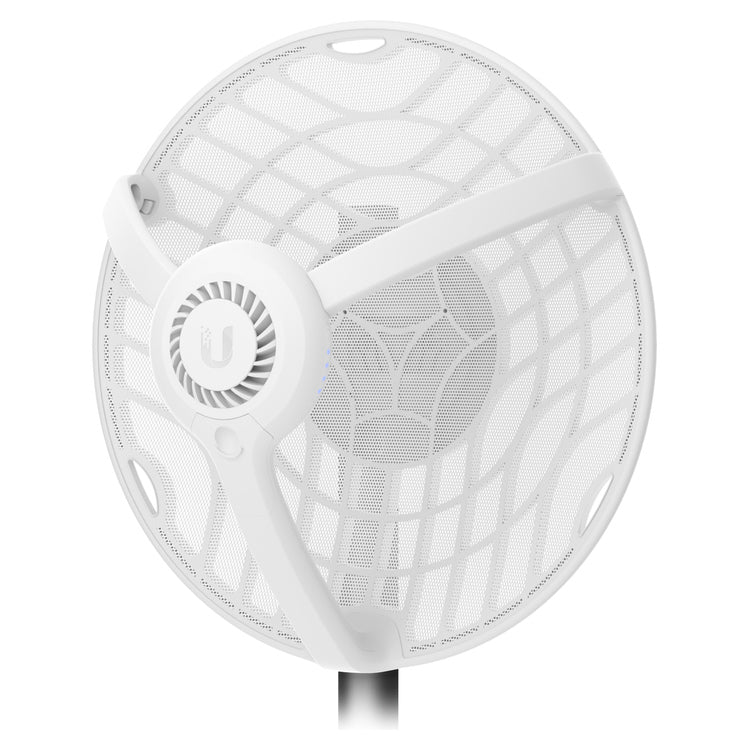

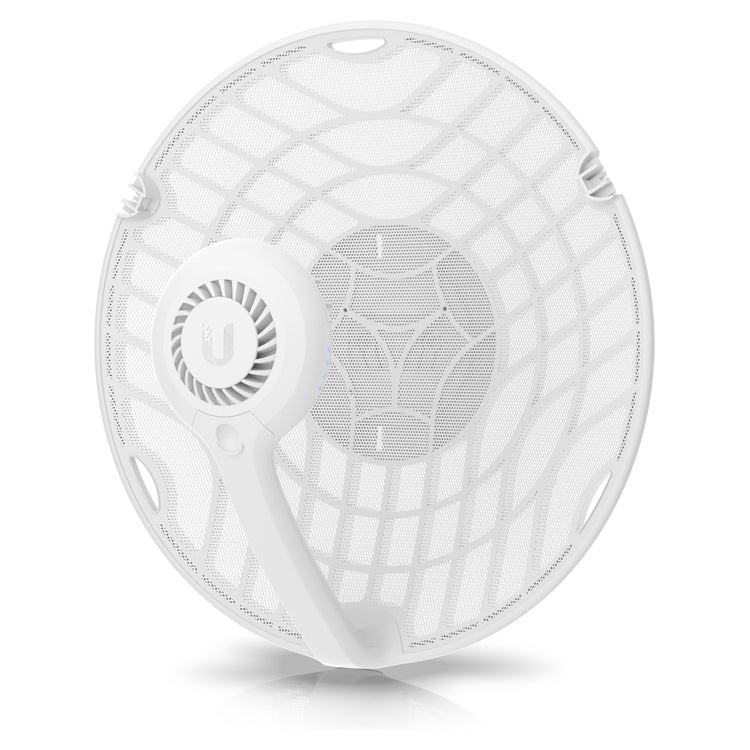

airFiber 60 Long-Range
Long-range 60 GHz radio system that pairs in PtP mode or connects to a Wave AP as a client in PtMP mode.
Build a dedicated outdoor wireless link using compatible equipment. Installation height, alignment, clear line of sight and local radio regulations affect the final link design.
Key features
- Networking Interface: (1) GbE RJ45 port
- Power Method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
- Mounting: Precision alignment kit (included)
- Supported Voltage Range: 44–54V DC 22–27V DC
Specifications
| Model / SKU | AF60-LR-EU |
|---|---|
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Dimensions | ⌀413 x 360 mm (⌀16.3 x 14.2") |
| Weight | Without mount: 1.5 kg (3.3 lb) With mount: 2.7 kg (6 lb) |
| Mounting | Precision alignment kit (included) |
| Supported Voltage Range | 44–54V DC 22–27V DC |
| Max. Power Consumption | 22W |
| Enclosure Material | Aluminum, UV stabilized polycarbonate |
| Power Supply | 48V DC, 0.65A gigabit PoE adapter (Included) |
| Total Throughput | 2 Gbps |
| Operating Frequency – Worldwide | 57–71 GHz |
| Antenna Gain | 38 dBi |
| Polarization | Vertically-Linear |
| Beamwidth | Azimuth: 3 dB 1.6° Elevation: 3 dB 1.6° |
Installation and compatibility
Check the listed interfaces, power requirements and physical dimensions against your equipment before ordering.
