L/I 650VA - TBYTE

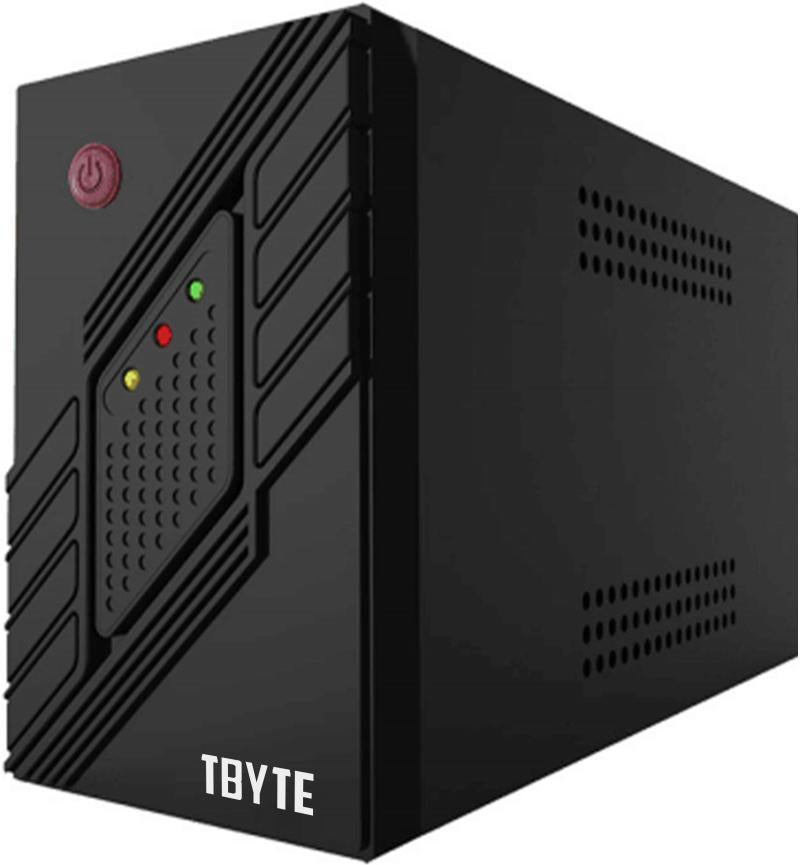

TBYTE 650VA Line Interactive UPS - Reliable Power Backup Solution

The TBYTE 650VA Line Interactive UPS is a dependable power backup solution designed to keep your devices running smoothly during outages. Here are its key features:

• Input Specifications:
  • Voltage: 220Vac ± 25% (5% Adjustable)
  • Frequency: 50Hz or 60Hz ± 6%
• Output Specifications:
  • Voltage: 220Vac (± 5% Adjustable)
  • Frequency: 50Hz or 60Hz ± 1%
  • Transfer Time: < 10msec (10 msec on system check)
  • Waveform: Sine wave under municipal supply, square wave under battery operation
• Protection Features:
  • Load Input: Fuse for overload & short circuit protection
  • Short Circuit: Fuse & current limited & cut off
  • Battery: Auto-inspection, discharge protection, and battery fault caution
• Battery Specifications:
  • Backup Time: 3-10 minutes depending on the load
  • Type: Sealed Lead-Acid battery
  • Charging Frequency: Normally charged every three months; not less than 6 hours each time
• Audible Alarm:
  • Battery Supply Power: Sufficient battery capacity - buzzer rings every 6 seconds, red light flashes
  • Insufficient Battery Capacity: Buzzer rings every 1 second, red light flashing
  • Battery Low Voltage or Overload/Short Circuit: Buzzer continuously rings, red light on
• Physical Specifications:
  • Weight: 4.7 kg

With the TBYTE 650VA Line Interactive UPS, enjoy peace of mind knowing your devices are protected and will continue to operate during unexpected power interruptions.
