L/I 2000VA - TBYTE

TBYTE 2000VA Line Interactive UPS - Reliable Power Backup Solution

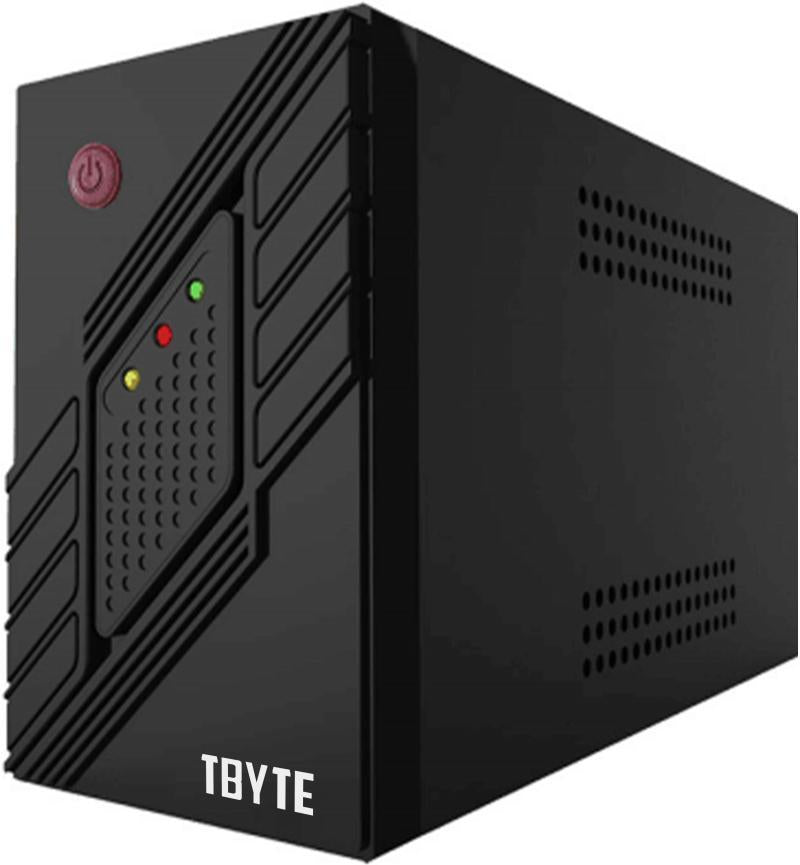

Introducing the TBYTE 2000VA/1200W Line Interactive UPS, your ultimate power backup companion. This device is designed to ensure your devices remain powered during outages and surges. Below are the key features:

Specifications:

• Input Voltage: 220Vac ± 25% (5% Adjustable)
• Frequency: 50Hz or 60Hz ± 6%
• Output Frequency: 50Hz or 60Hz ± 1%
• Output Voltage: 220Vac (±5% Adjustable)
• Transfer Time: < 10 msec (10 msec on system check)
• Wave Form: Sine wave under municipal supply, square wave under battery operation

Protection Features:

• Load input protection with fuse for overload & short circuit
• Short circuit protection with fuse & current limit

Battery Information:

• Backup Time: 15-35 mins depending on load
• Type: Sealed Lead-Acid battery
• Auto-inspection, discharge protection, and battery fault caution
• Normal charging every three months; charge duration not less than 6 hours

Audible Alarm System:

• Battery supply power:
  • Sufficient capacity - buzzer rings every 6 seconds with red light flashing
  • Insufficient capacity - buzzer rings every 1 second, red light flashing
  • Battery low voltage or overload/short circuit - continuous buzzer ringing, red light on

Physical Specifications:

• Weight: 13.1 kg
