SW: 24 PORT 10/100

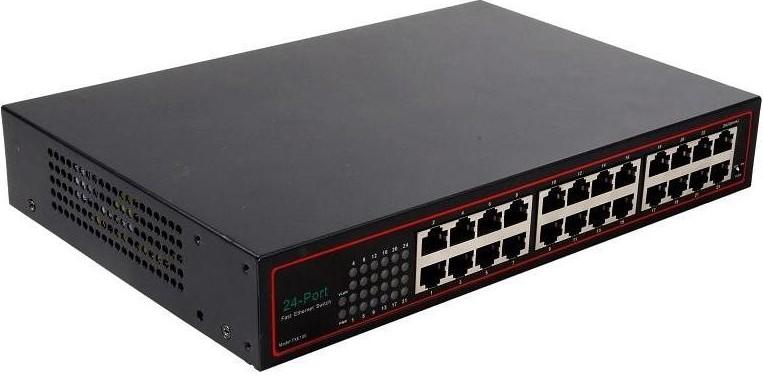

Fast Ethernet Switch 24-port 10/100 200 Mbps per port - TXE100

Easily expand your business or home network with the TXE100 Fast Ethernet Switch by adding Computers and devices in full Duplex mode

Ease of Use: The TXE100 does not require any configuration or software, making installation simple and hassle-free

With Auto-MDI/MDI-X support, there is no need for crossover Cables when you are connection to another switch or to a Computer

Additionally, the TXE100 will automatically sense if the connected network devices are running at 10Mbps or 100Mbps, and adjust accordingly

Equipped with a comprehensive LED display, you can monitor the status and activity of every port at a glance

Model: TXE100

Hardware Features

Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Interface: 24 10/100Mbps RJ45 Ports, Auto Negotiation/Auto MDI/MDIX

Forwarding Mode: Store-and-Forward

Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX: UTP category 5, 5e or above cable (maximum 100m

Power Supply: 100-240VAC, 50/60H

LED: Power, Port Isolation, Link/Act

Fanless: Yes

Performance

Switching Capacity: 4.8Gbps

Packet Filtering/Forwarding Rate:148,800 pps for 100M

14,880 pps for 10M

MAC Address Table: 8K

Certifcation: CE, FCC, RoHS

Environment

Operating Temperature: 0°C - 40°C (32°F-104°F)

Storage Temperature: -40°C-70°C (-40°F-158°F)

Operating Humidity: 10%-90% RH non-condensing

Storage Humidity: 5%-90% RH non-condensing
