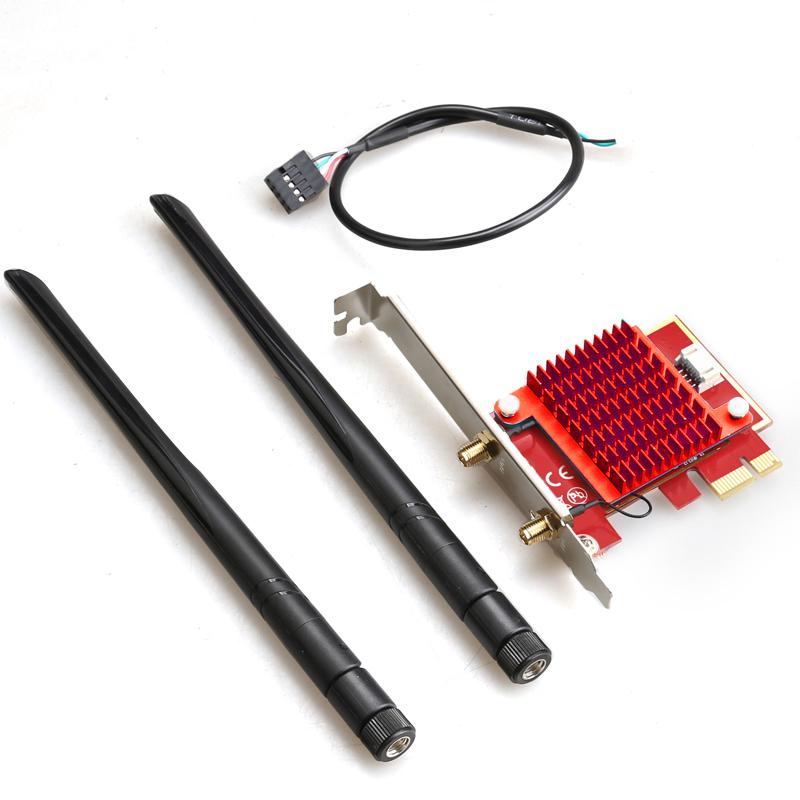

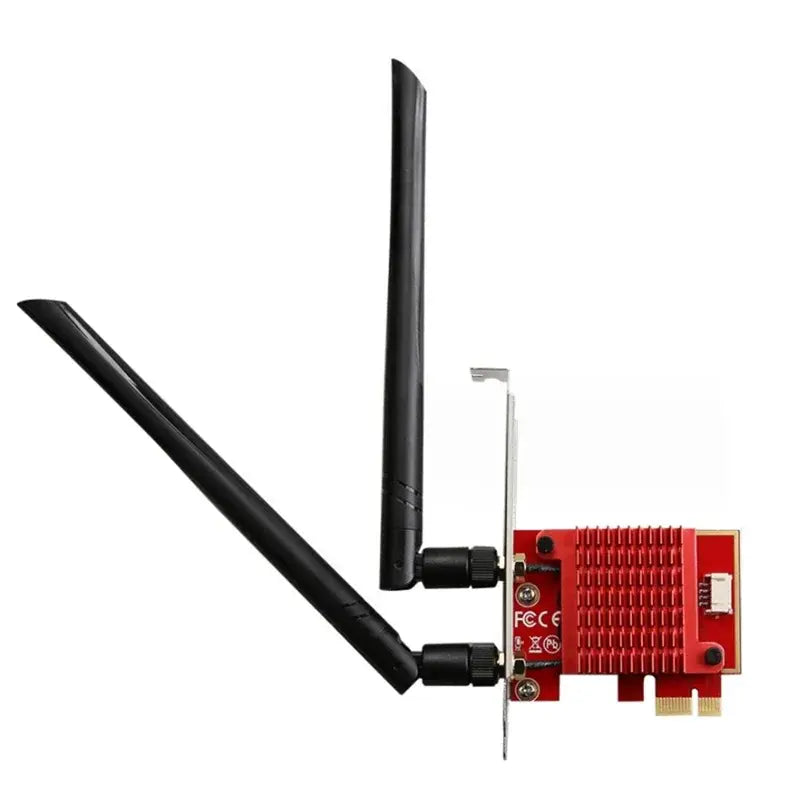

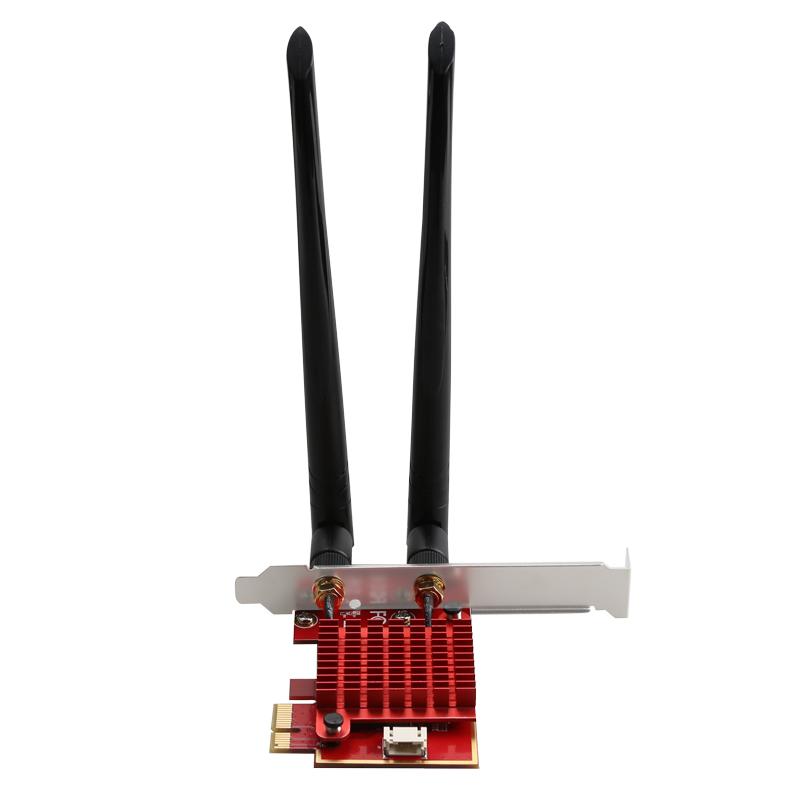

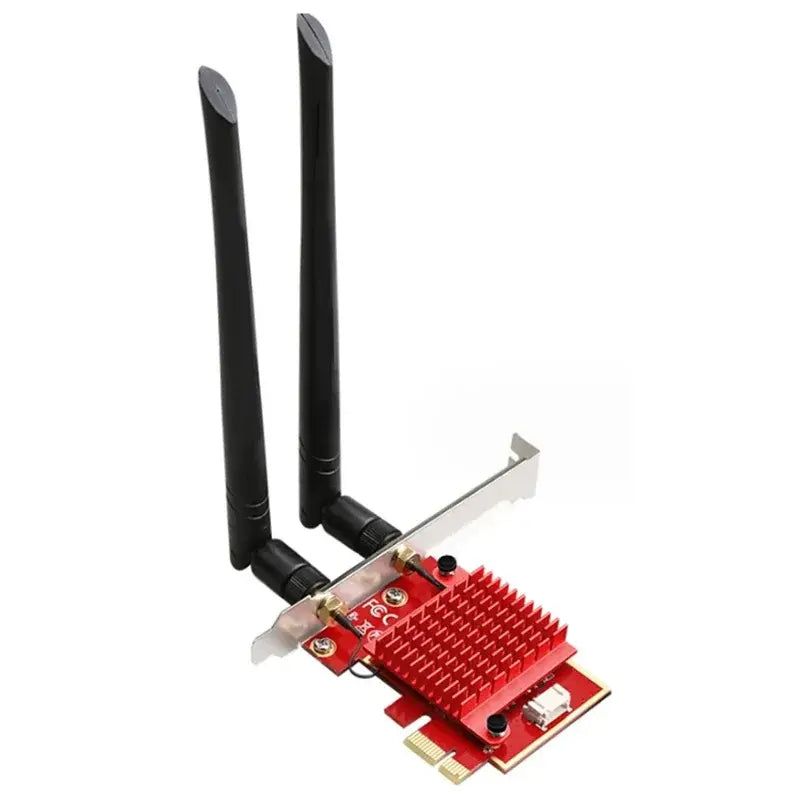

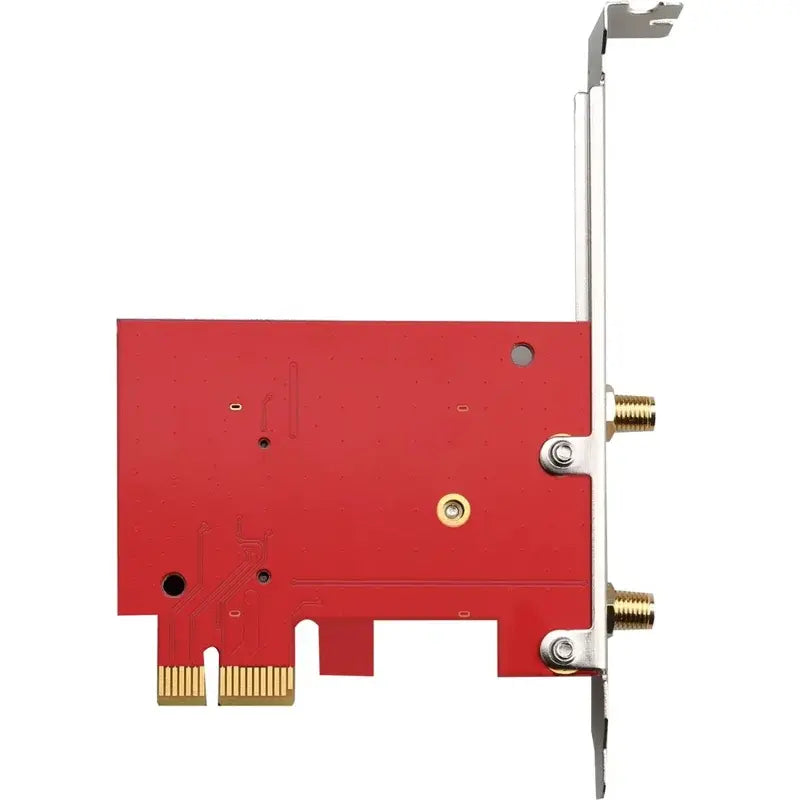

M-Link AX5400 Wi-Fi 6E PCIe Adapter with Bluetooth 5.3
The M-Link TXA116 is a tri-band PCI Express wireless adapter designed to add Wi-Fi 6E and Bluetooth connectivity to a compatible desktop computer. Its Intel AX210 chipset supports the 2.4GHz, 5GHz and less-congested 6GHz wireless bands for responsive gaming, streaming and large file transfers.
The adapter provides speeds of up to 574Mbps on 2.4GHz and up to 2402Mbps on both the 5GHz and 6GHz bands. Two detachable 5dBi antennas help improve wireless coverage, while WPA3, MU-MIMO and OFDMA support efficient and secure connectivity.
Wi-Fi uses the PCI Express interface, while Bluetooth requires the supplied cable to be connected to an available internal USB header. Access to the 6GHz band requires a compatible Wi-Fi 6E router and supported operating system.
Specifications
Brand: M-Link
Model: TXA116
Product Type: PCIe Wireless Network Adapter
Chipset: Intel AX210
Wi-Fi Standard: Wi-Fi 6E, IEEE 802.11ax
Supported Standards: IEEE 802.11a/b/g/n/ac/ax
Wireless Bands: 2.4GHz, 5GHz and 6GHz
Combined Wireless Class: AX5400
Maximum 2.4GHz Speed: Up to 574Mbps
Maximum 5GHz Speed: Up to 2402Mbps
Maximum 6GHz Speed: Up to 2402Mbps
Channel Width: Up to 160MHz
Bluetooth: Bluetooth 5.3
Wi-Fi Interface: PCI Express x1
Bluetooth Interface: Internal USB Header Connection
Antennas: 2 × Detachable 5dBi Antennas
Security: WPA3 Support
Wireless Technologies: MU-MIMO and OFDMA
Compatible Devices: Desktop Computers
Operating-System Support: Windows 10 and Windows 11, 64-Bit
6GHz Requirement: Compatible Wi-Fi 6E Router and Windows 11
