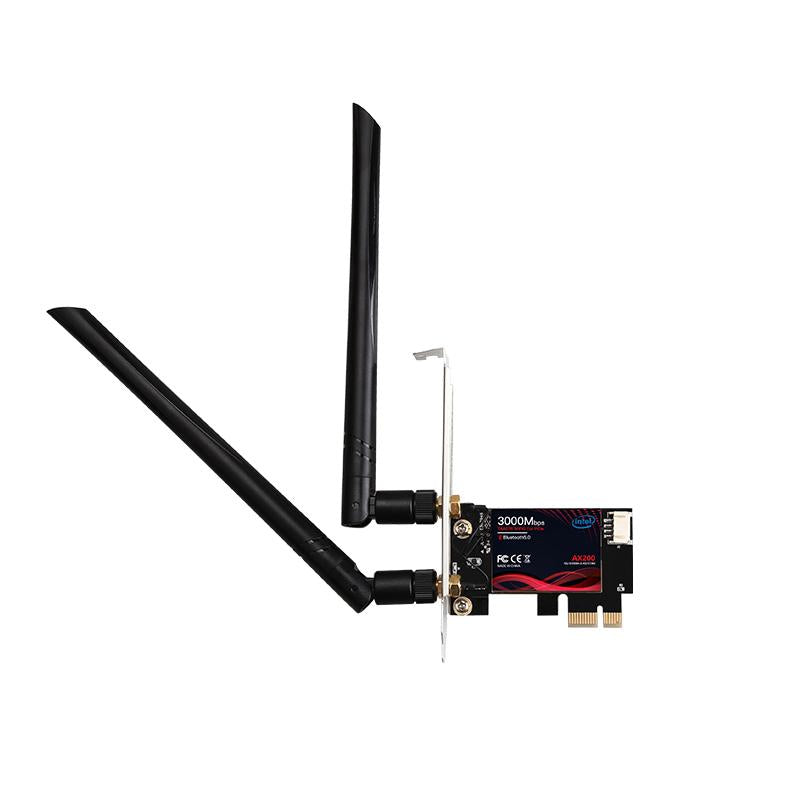

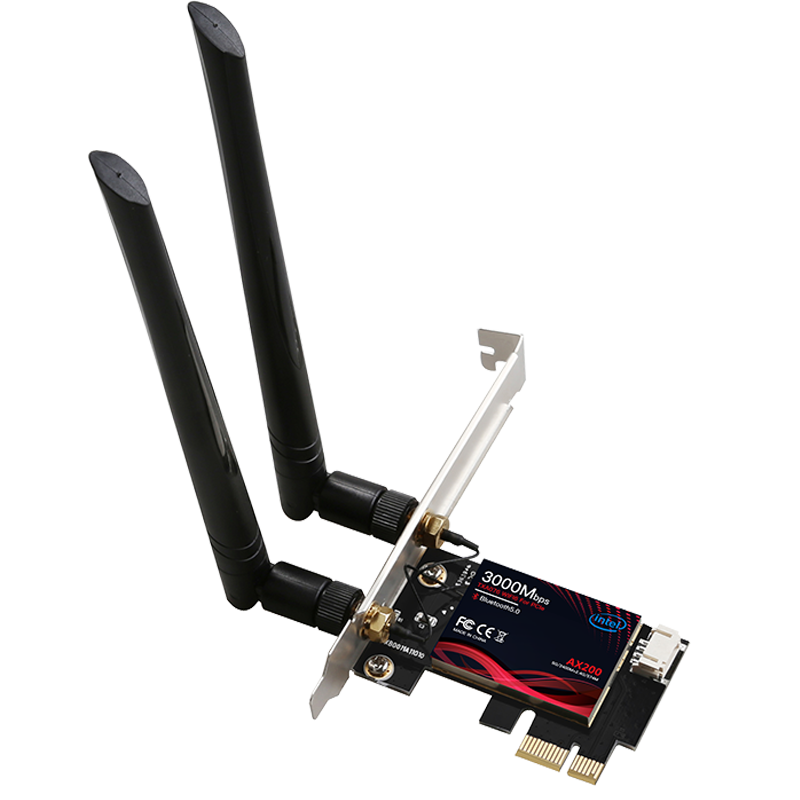

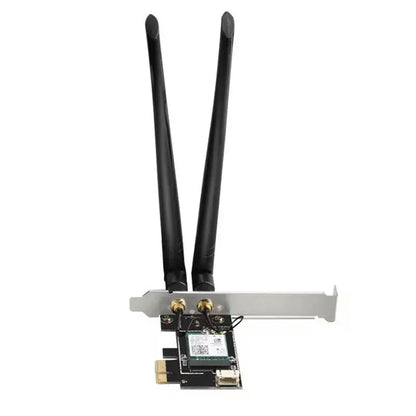

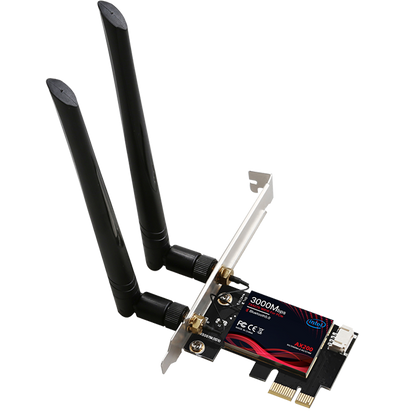

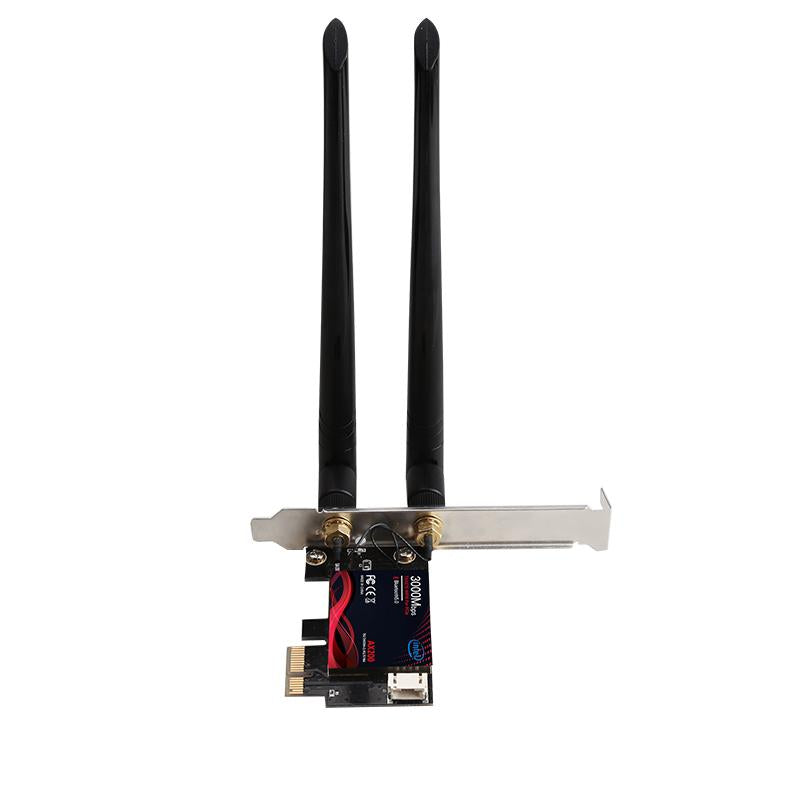

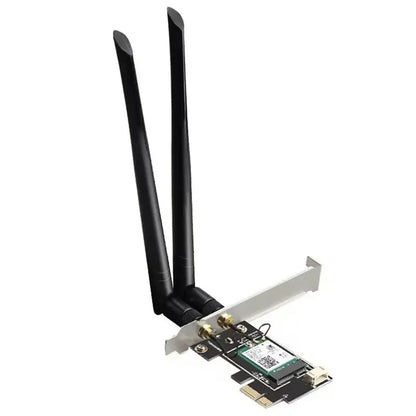

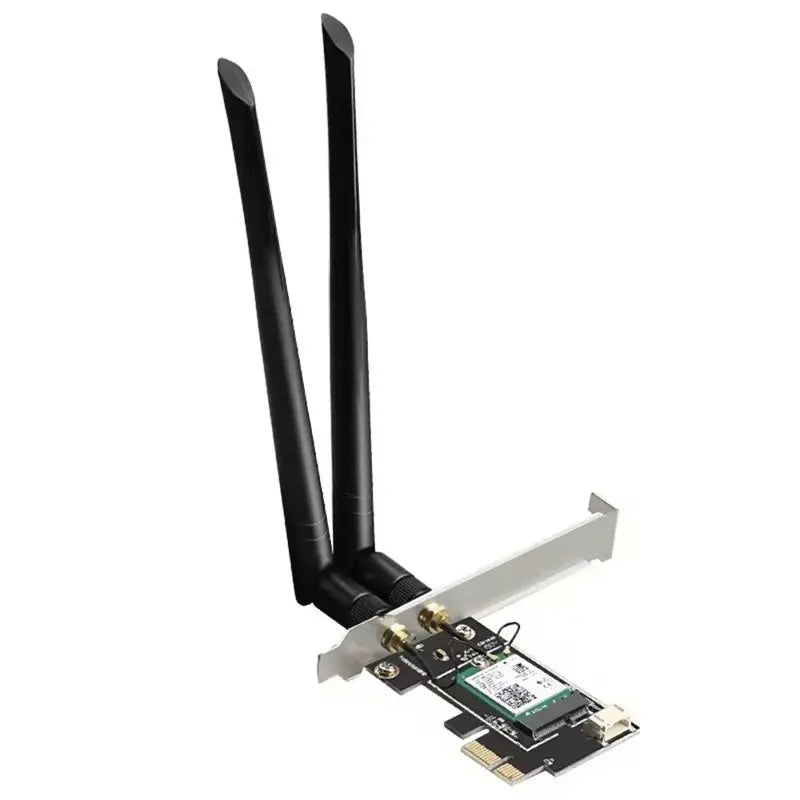

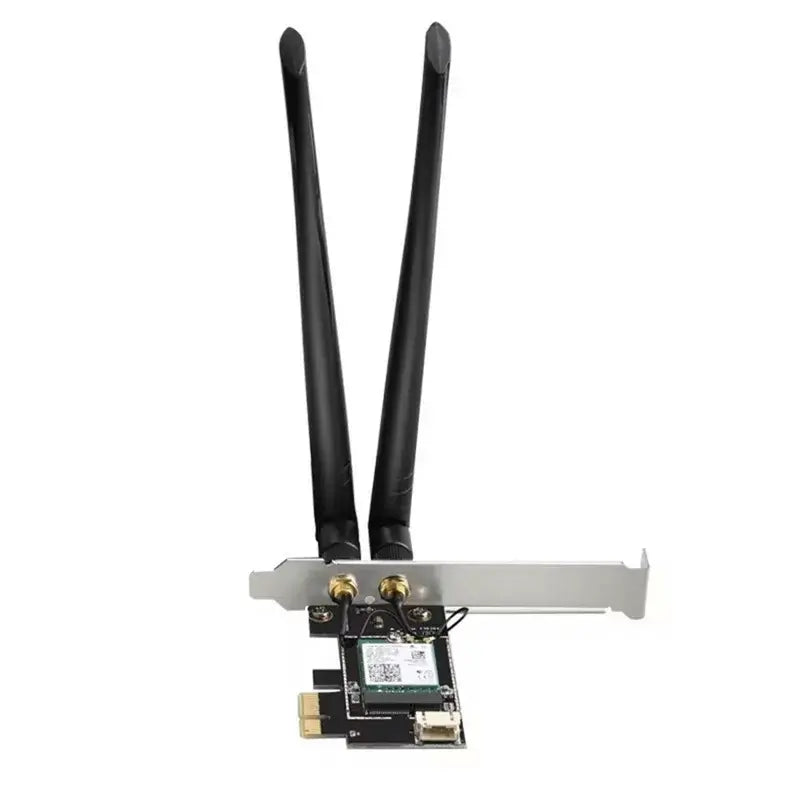

M-Link AX3000 Wi-Fi 6 PCIe Adapter with Bluetooth 5.0
The M-Link TXA076 is a dual-band PCI Express wireless adapter designed to add Wi-Fi 6 and Bluetooth connectivity to a compatible desktop computer. Its Intel AX200 chipset supports demanding activities such as large file transfers, online gaming and high-resolution media streaming.
Wireless speeds reach up to 2400Mbps on the 5GHz band and 574Mbps on 2.4GHz, providing a combined AX3000-class connection. Two detachable 5dBi antennas help extend coverage and provide a stable wireless signal.
The Wi-Fi connection uses a PCI Express slot, while Bluetooth functionality requires the supplied cable to be connected to an available internal USB header on the motherboard.
Specifications
Brand: M-Link
Model: TXA076
Product Type: PCIe Wireless Network Adapter
Chipset: Intel AX200
Wi-Fi Standard: Wi-Fi 6, IEEE 802.11ax
Supported Standards: IEEE 802.11a/b/g/n/ac/ax
Wireless Bands: 2.4GHz and 5GHz
Combined Wireless Class: AX3000
Maximum 2.4GHz Speed: Up to 574Mbps
Maximum 5GHz Speed: Up to 2400Mbps
Channel Width: Up to 160MHz
Bluetooth: Bluetooth 5.0
Wi-Fi Interface: PCI Express x1
Bluetooth Interface: Internal USB Header Connection
Antennas: 2 × Detachable 5dBi Antennas
Security: WPA3 Support
Wireless Technologies: MU-MIMO and OFDMA
Compatible Devices: Desktop Computers
Operating-System Support: Windows 10, 32-Bit and 64-Bit
