MSI Pro B840M P WiFi 6E Micro ATX AM5 DDR5 Motherboard

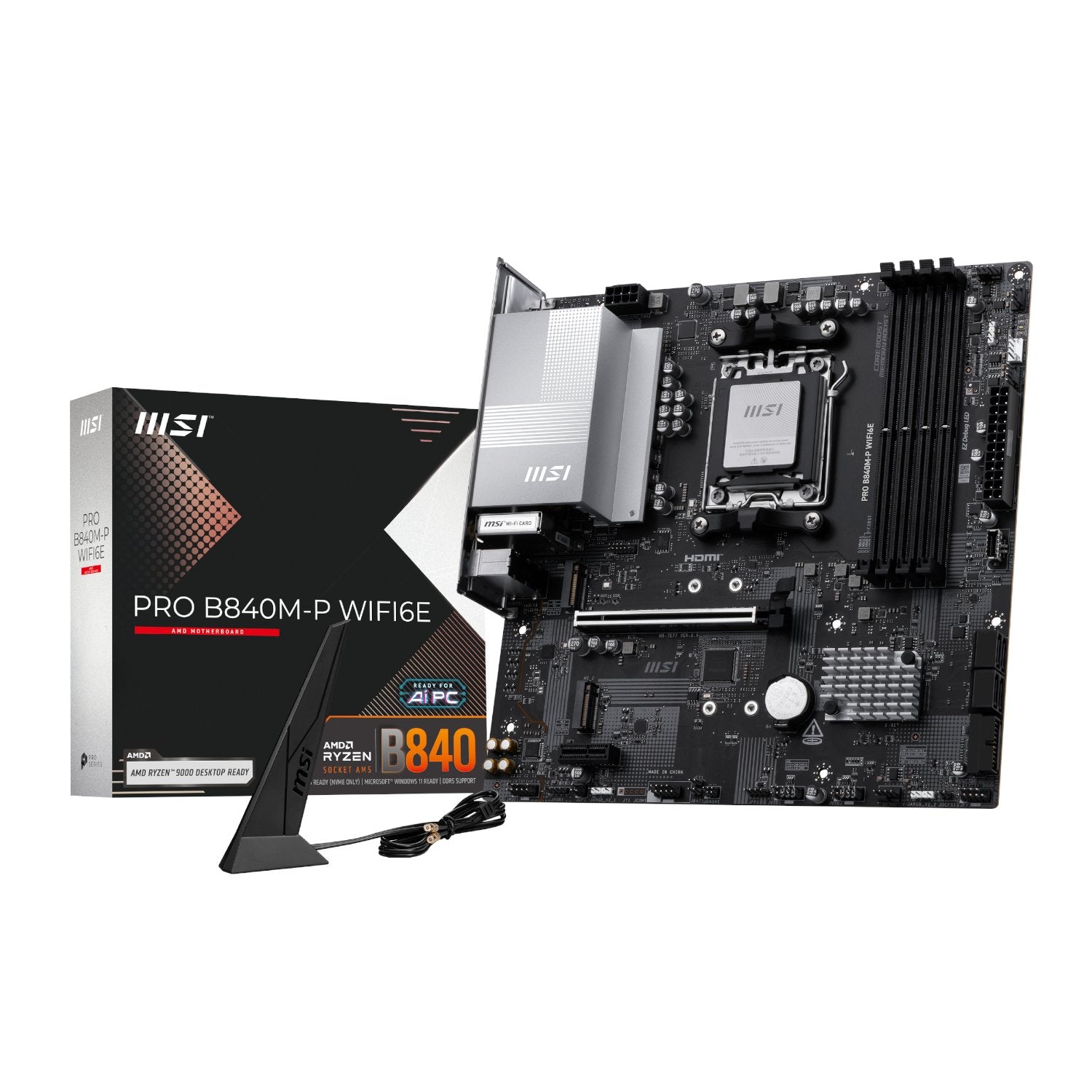

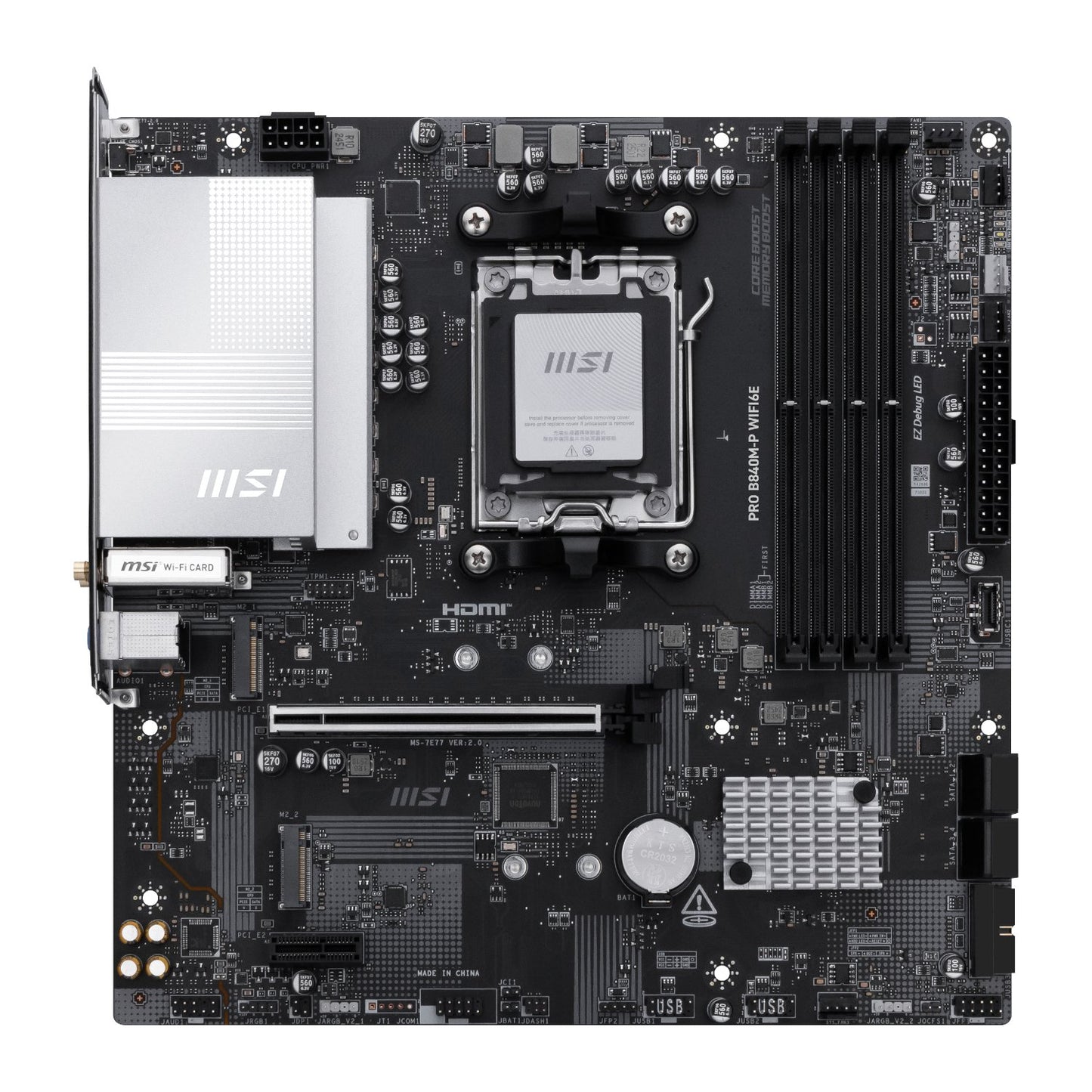

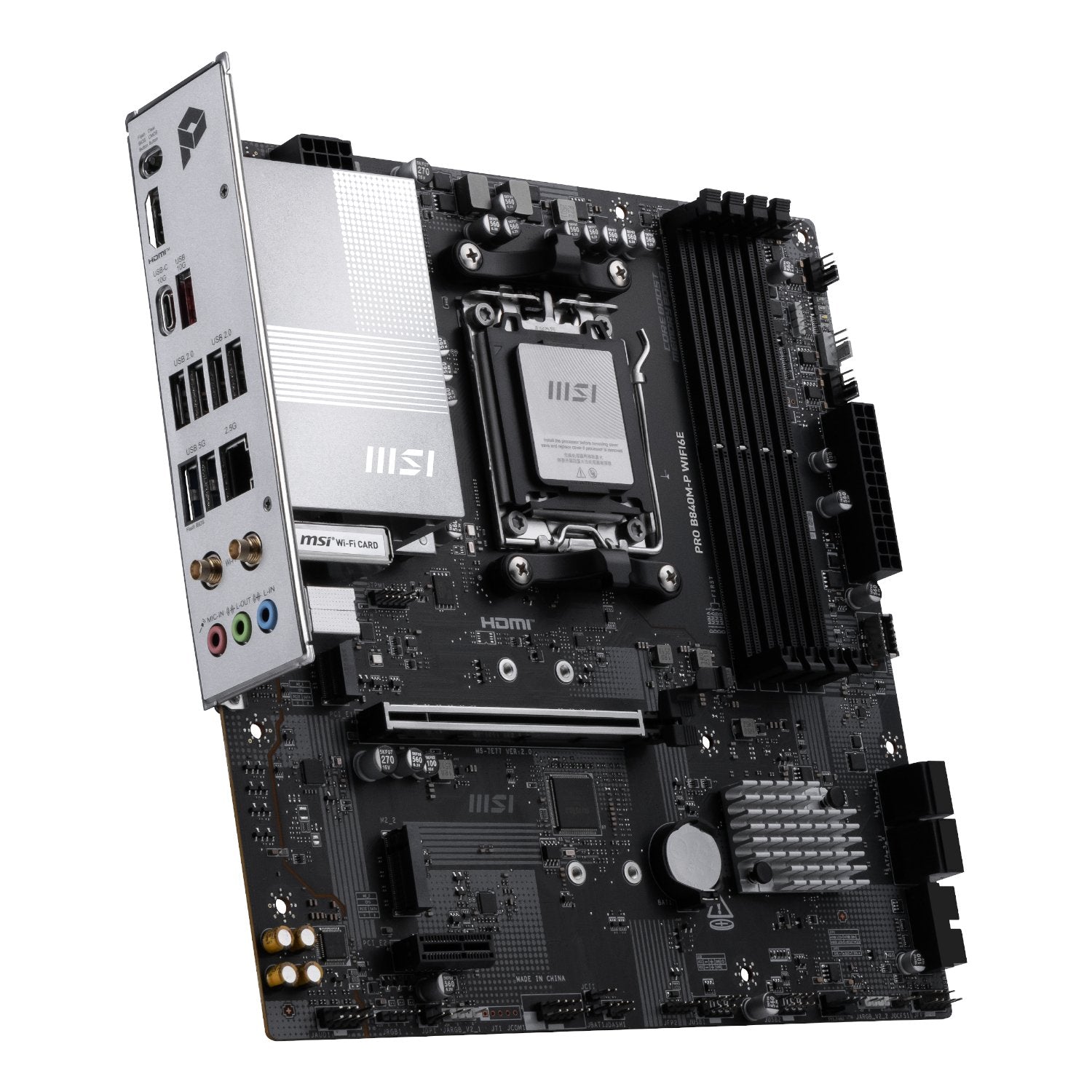

MSI PRO B840M-P WIFI6E is a compact, high‑performance Micro‑ATX motherboard built for the AMD AM5 platform. Designed to unlock the full potential of Ryzen™ 8000 and 7000 series processors, this board combines solid power delivery with forward‑looking features in a space‑efficient package.

Powered by the AMD B840 chipset, it delivers reliable performance for both work and play. The board is optimized for DDR5 memory, offering fast data throughput and efficient multitasking to keep your system responsive under heavy loads.

Key features

• AM5 socket with DDR5 memory support for up to 256 GB across 4 DIMMs, including AMD EXPO for easy memory overclocking.
• PCIe 4.0 connectivity with a PCIe 4.0 x16 slot from the CPU and a PCIe 3.0 x1 slot from the chipset, providing flexible expansion for modern GPUs and add‑in cards.
• M.2 storage support via two PCIe 4.0 M.2 slots, plus four SATA ports for versatile storage configurations.

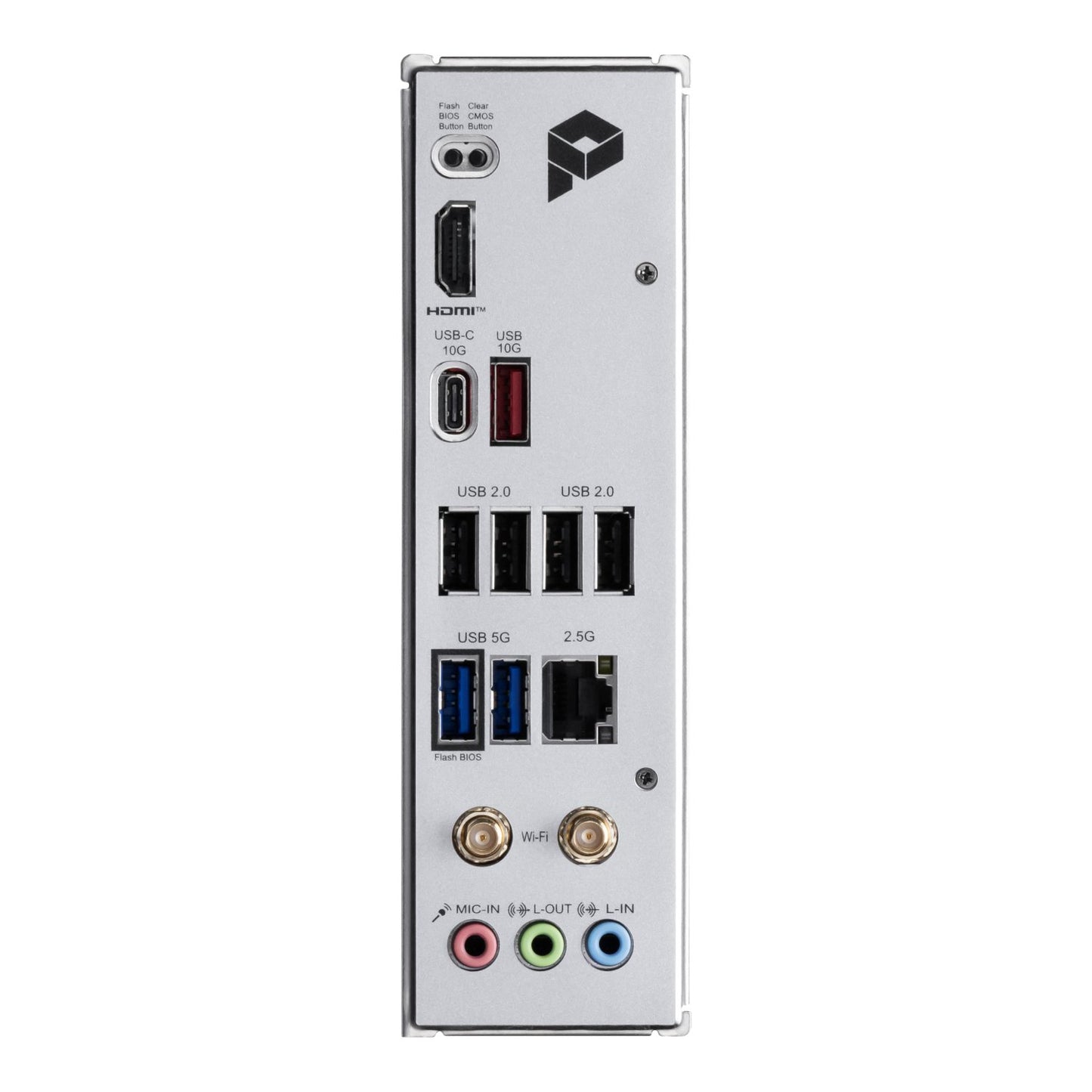

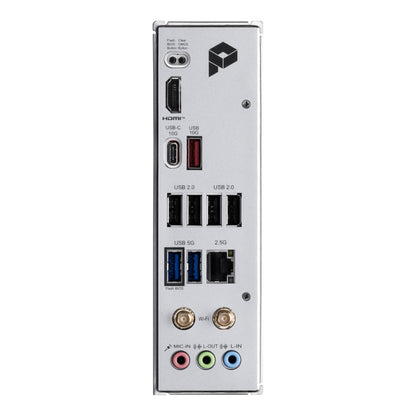

• Video output includes an HDMI 2.1 port for high‑definition display support (4K@60Hz) straight from the motherboard.
• Networking with Wi‑Fi 6E (plus Bluetooth) and a 2.5G LAN option, ensuring fast, stable connectivity for both wired and wireless networks.
• USB connectivity offers modern USB 3.2 options for fast data transfer to external drives and peripherals.
• Ease of use includes a Flash BIOS Button for simple recovery, plus EZ Debug LED indicators to help diagnose boot issues quickly.
• RGB and ARGB headers support for customizable lighting, with user‑friendly single‑sided DIMM latches for easier installation.
