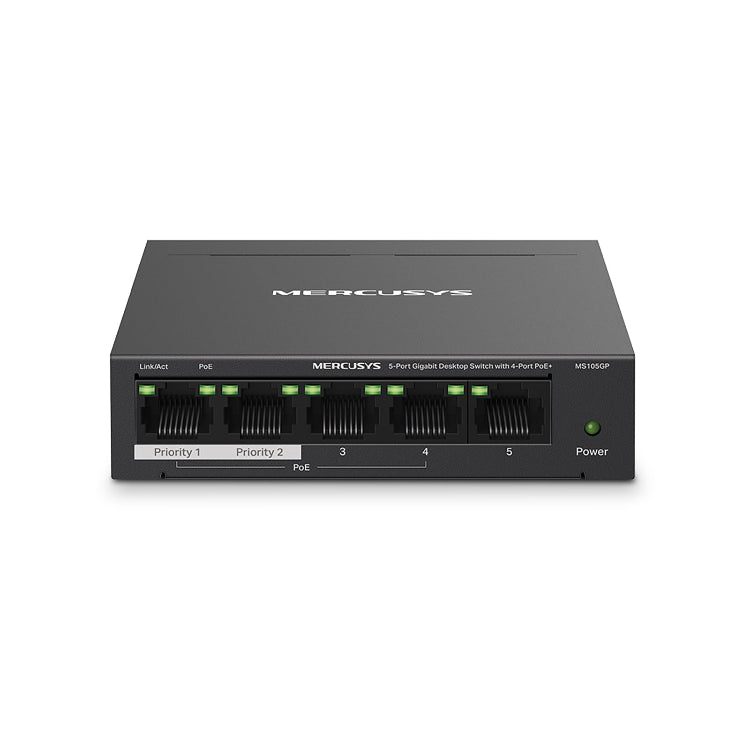

  • Mercusys network switch on a white background
  • Black network switch with multiple ports on a white background
  • Black network swith rear view with Mercusys branding on a white background

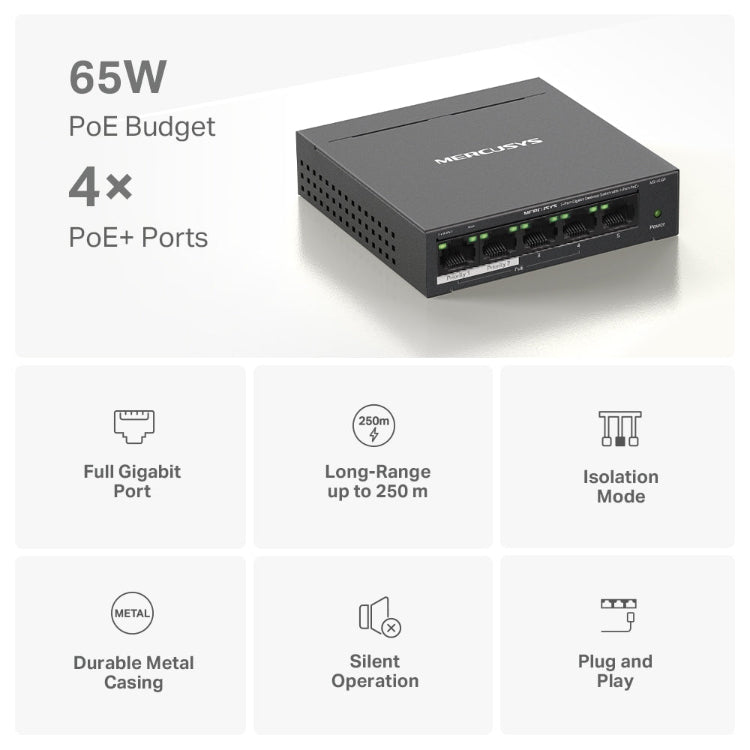

  • Network switch with specifications on a white background
  • Diagram comparing traditional switches to Power over Ethernet switch MS105GP on a white background.
  • Diagram showing a camera and a device with 'Extend Mode' feature on a light gray background.
  • Mercusys network switch with isolation mode feature on a gray background
  • Network switch with prioritized ports labeled 'Priority 1', 'Priority 2', and '3' on a gray background.
  • Network switch with MDI and MDIX labels on a gray background
  • Mercusys network switch with dimensions and features on a light background
1 10

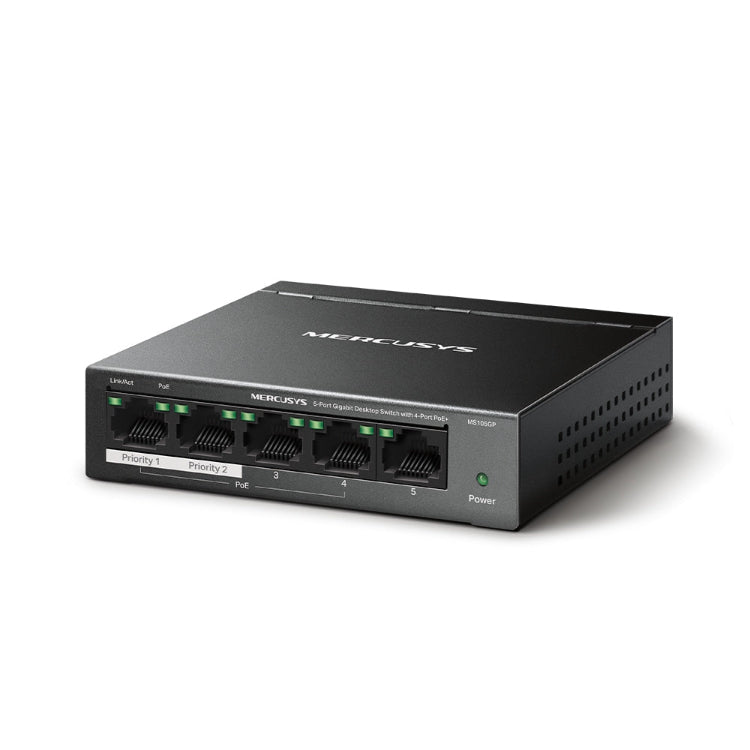

Mercusys MS105GP 5-Port Unmanaged Gigabit PoE Switch | 4× PoE Ports | 65W Budget

The MS105GP 5-Port Gigabit PoE Switch is a compact unmanaged network switch designed to power and connect PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones.

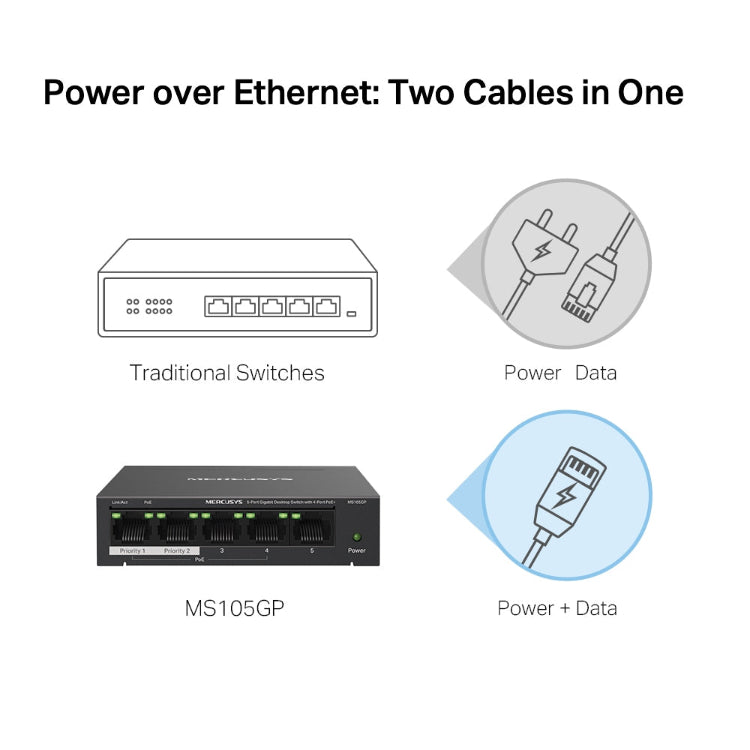

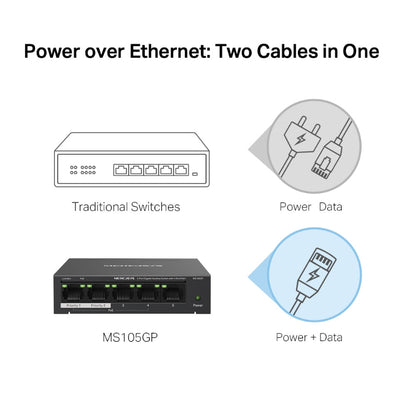

With four Gigabit PoE ports and one Gigabit uplink port, the MS105GP delivers high-speed data connectivity while supplying power over Ethernet, reducing the need for additional power adapters and simplifying installations.

Key Features

  • 5-Port Gigabit Ethernet: 4 × PoE-enabled 10/100/1000Mbps ports plus 1 × Gigabit uplink port.
  • PoE Support: IEEE 802.3af/at compliant for reliable device powering.
  • Total PoE Budget: Up to 65W shared across PoE ports.

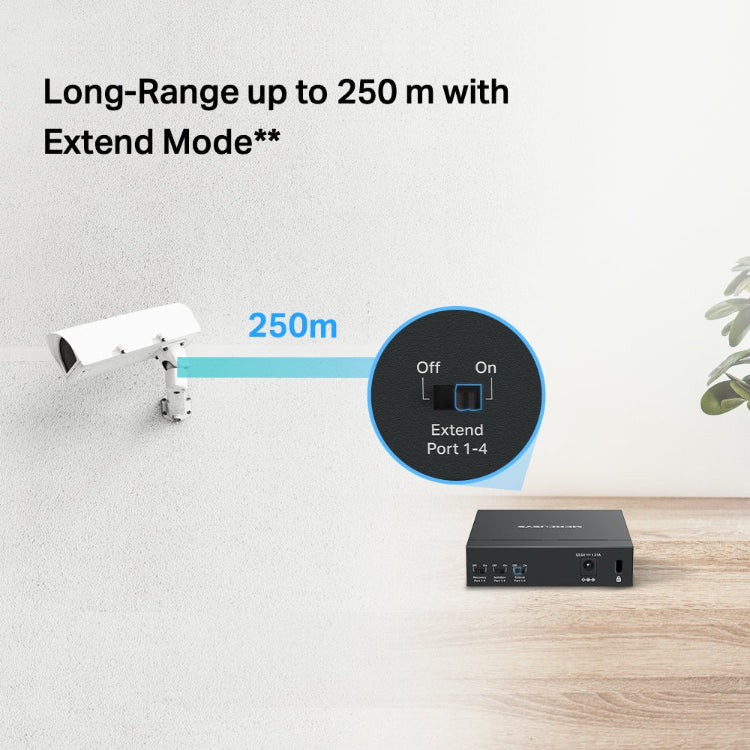

  • Long-Range Mode (Extend): Supports PoE transmission distances of up to 250 m in Extend Mode. When enabled, port speed is reduced to 10 Mbps. Actual transmission distance may vary depending on cable quality, type, and power consumption of connected PoE devices.

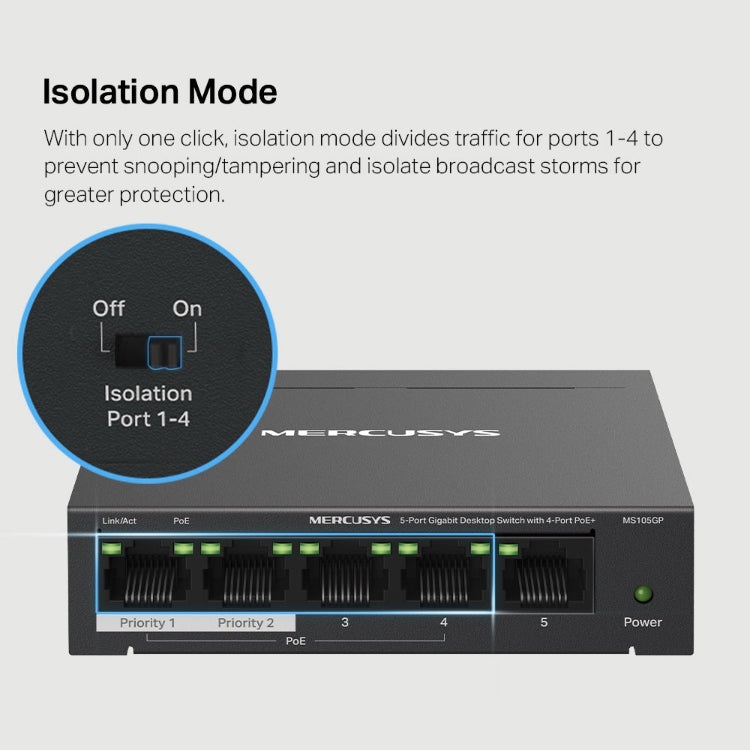

  • Isolation Mode: One-click port isolation helps divide traffic for improved network stability and enhanced security.
  • PoE Auto Recovery: Automatically detects and reboots unresponsive PoE-powered devices to minimise downtime.

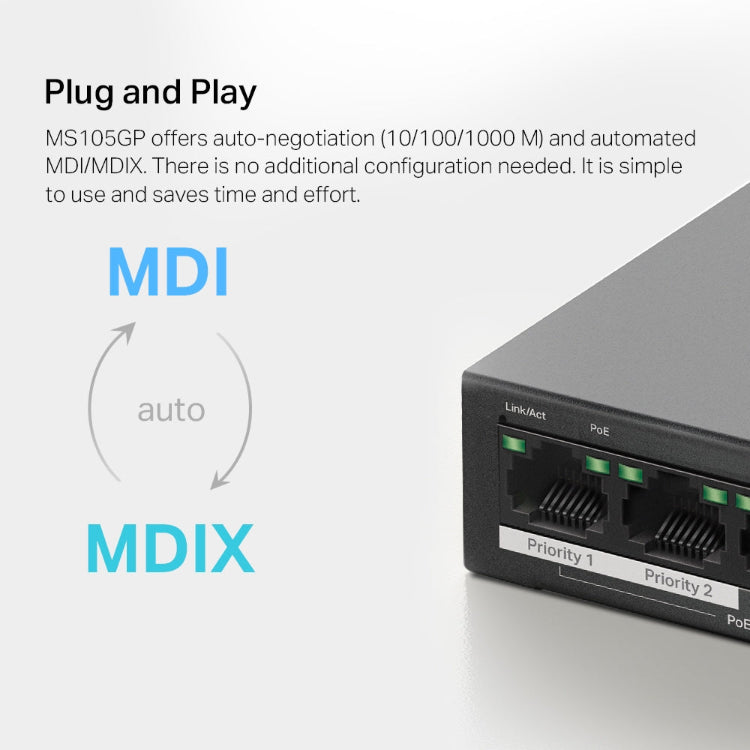

  • Plug-and-Play: Unmanaged design requires no configuration.

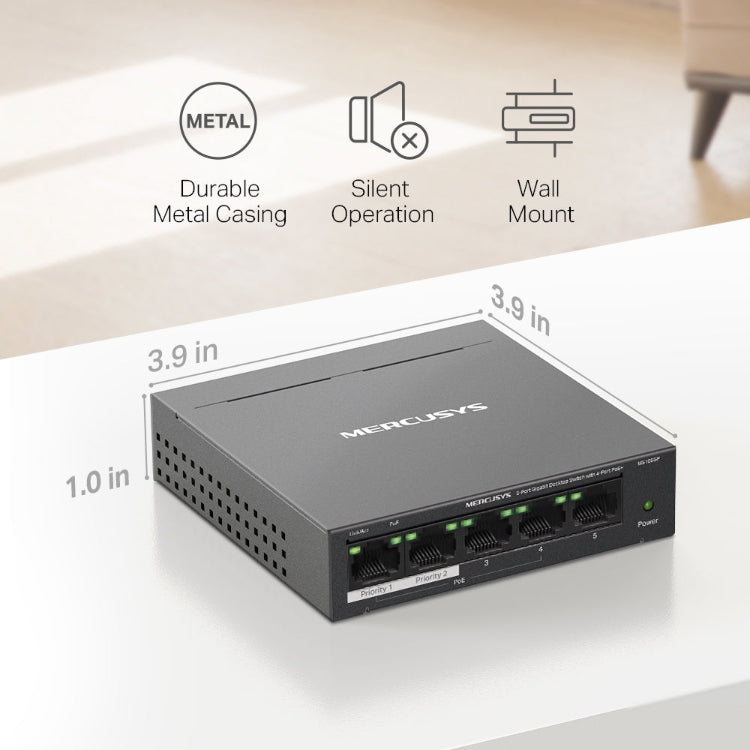

  • Compact Desktop Design: Suitable for small offices and space-limited environments.
  • Durable Metal Housing: Designed for stable operation and effective heat dissipation.

Specifications

  • Ports: 5 × Gigabit RJ45 (4 × PoE, 1 × uplink)
  • PoE Standards: IEEE 802.3af / IEEE 802.3at
  • PoE Budget: 65W
  • Switch Type: Unmanaged
  • Forwarding Mode: Store-and-Forward
  • Housing: Metal chassis

Ideal for: IP surveillance systems, wireless access points, VoIP deployments, and small business networks requiring Gigabit PoE connectivity.
