M-Link TXE104 5-Port Unmanaged Ethernet PoE Switch | 4× PoE Ports | 60W Budget

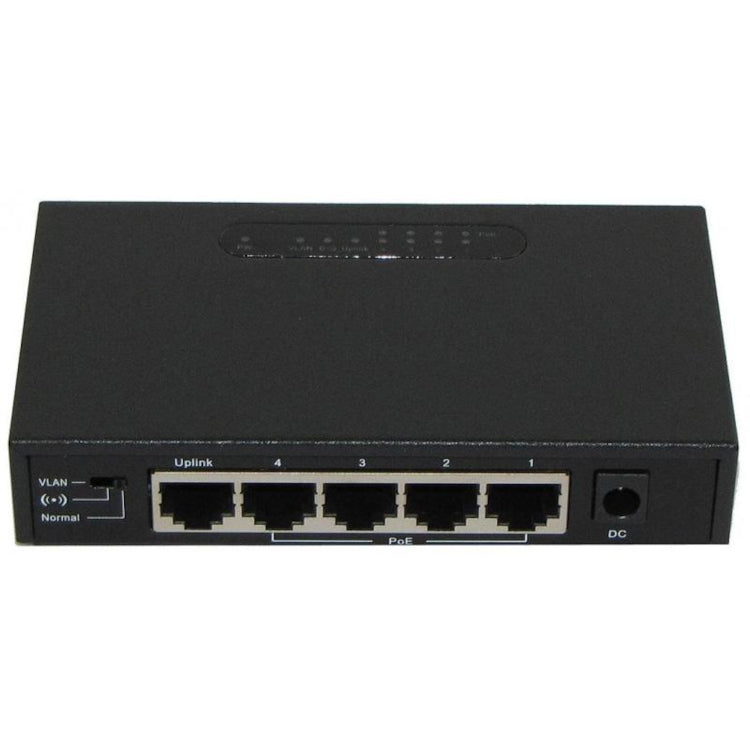

M-LINK TXE104 5-Port Fast Ethernet PoE Desktop Switch is a compact unmanaged switch designed to power and connect PoE-enabled network devices such as IP cameras, VoIP phones, and wireless access points.

Featuring 4 PoE-enabled Fast Ethernet ports and 1 LAN uplink port, the TXE104 provides reliable Power over Ethernet support with simple plug-and-play installation, making it suitable for small offices, security setups, and desktop deployments.

Key Features

• 5-Port Fast Ethernet: 4 × 10/100Mbps PoE ports plus 1 × 10/100Mbps LAN uplink port.
• PoE Support: IEEE 802.3af/at compliant with up to 30W per PoE port.
• Total PoE Budget: 60W maximum output.
• Extended Mode: Supports up to 250m PoE transmission (cable-dependent).
• Unmanaged Design: No configuration required for quick deployment.
• Desktop Form Factor: Compact size suitable for space-limited environments.

Specifications

• Network Interfaces: 5 × RJ45 10/100BASE-TX, Auto MDI/MDIX
• PoE Ports: 4 × PoE ports (Ports 1–4)
• PoE Standards: IEEE 802.3af / IEEE 802.3at
• PoE Power Output: Up to 15.4W per port (802.3af), up to 30W per port (802.3at)
• Switch Architecture: Store-and-Forward
• Switch Fabric: 1Gbps
• Throughput: 0.74 Mpps @ 64 bytes
• MAC Address Table: 1K entries
• Maximum Packet Size: 1536 bytes
• Flow Control: IEEE 802.3x (Full Duplex), Back Pressure (Half Duplex)

Power

• Power Input: DC 52V
• Maximum Power Consumption: 65W
• PoE Pin Assignment: 1/2 (+), 3/6 (–)

Indicators

• System: Power LED
• Ports: Link/Activity (Ports 1–5), PoE Status (Ports 1–4)

Standards & Compliance

• Networking Standards: IEEE 802.3, 802.3u, 802.3x
• PoE Standards: IEEE 802.3af, IEEE 802.3at
• Certifications: CE, FCC
• ESD Protection: 4KV

Physical & Environment

• Dimensions: 124 × 72 × 24 mm
• Operating Temperature: 0°C – 50°C
• Storage Temperature: -10°C – 70°C
• Operating Humidity: 5% – 95% RH (non-condensing)
• Storage Humidity: 5% – 95% RH (non-condensing)

Ideal for: IP surveillance systems, VoIP deployments, wireless access points, and small network installations requiring PoE support.
