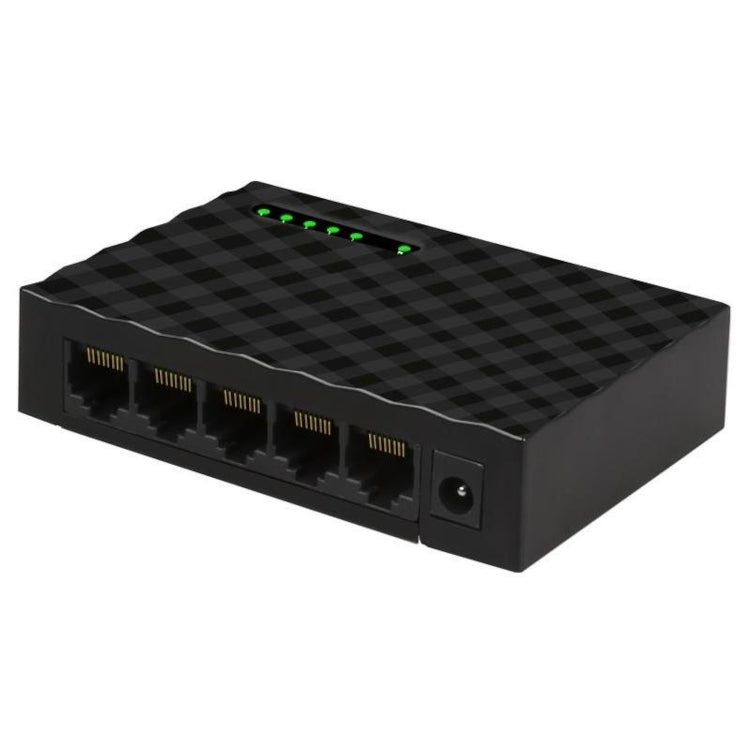

Black network switch with multiple ports on a white background
M-LINK TXE034 5-Port Gigabit Ethernet Switch | Unmanaged | FanlessTXE034
M-LINK TXE034 5-Port Gigabit Ethernet Switch | Unmanaged | FanlessTXE034
R 250.00/ea		 R 0.00
R 250.00/ea R 0.00
  • Black network switch with multiple ports on a white background

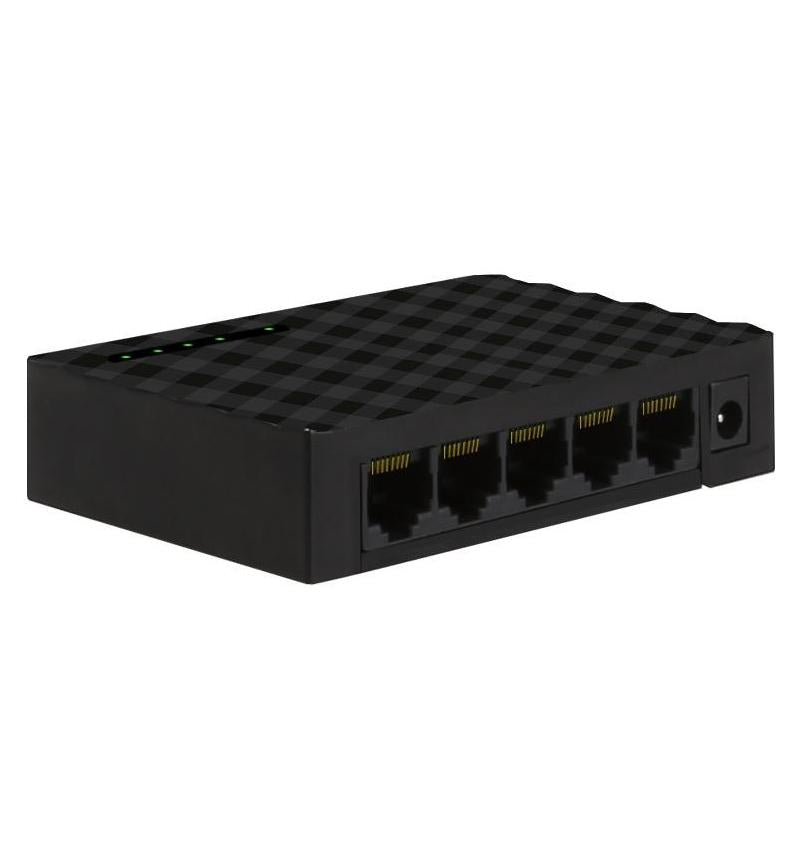

  • Black network switch with multiple Ethernet ports on a white background

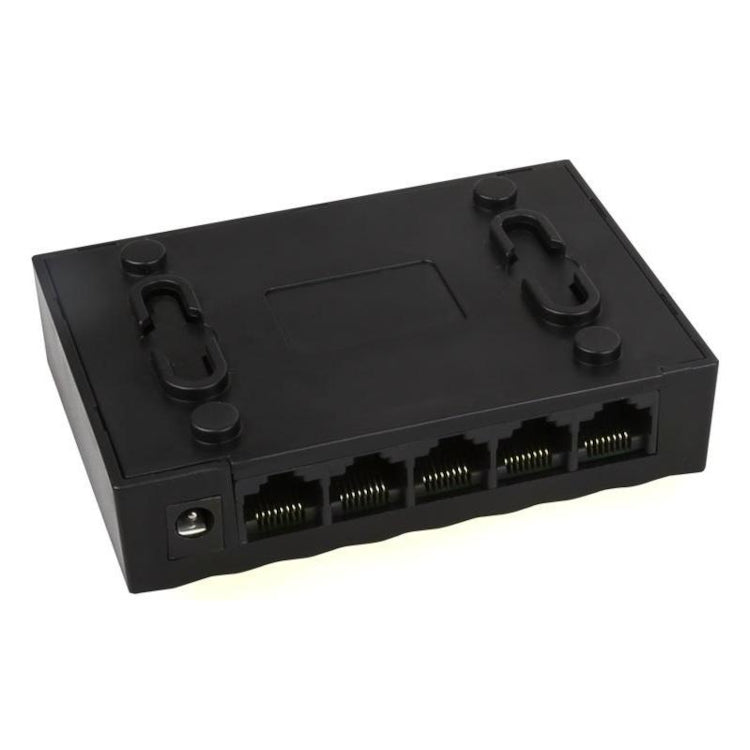

  • Black electronic device with multiple ports on a white background
1 3

M-LINK TXE034 5-Port Gigabit Ethernet Switch | Unmanaged | Fanless

5-Port 10/100/1000 Mbps Ethernet Switch

Overview

With the TXE034 Gigabit Ethernet Switch, you can easily expand your business or home network by adding more computers and devices, each achieving speeds up to 2000 Mbps per port in full-duplex mode.

Specifications

Features & Performance

  • Model: TXE034
  • Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
  • Interface: 5 × 10/100/1000Mbps RJ45 Ports, Auto Negotiation / Auto MDI / MDIX
  • Forwarding Mode: Store-and-Forward
  • Power Supply: External Power Adapter (Output: 5VDC/1A)
  • Dimensions: 100 × 70 × 25 mm
  • Weight: 76g
  • LED Indicators: Power, Link/Act
  • Fanless: Yes

Network Media

  • 10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
  • 100BASE-TX/1000BASE-T: UTP Category 5, 5e or above Cable (Maximum 100m)

Performance

  • Switching Capacity: 10Gbps
  • Packet Filtering/Forwarding Rate: 1,488,000 pps for 1000M
    148,800 pps for 100M
    14,880 pps for 10M
  • MAC Address Table: 2K

Environment

  • Operating Temperature: 0°C – 40°C (32°F – 104°F)
  • Storage Temperature: -40°C – 70°C (-40°F – 158°F)
  • Operating Humidity: 10% – 90% RH (Non-condensing)
  • Storage Humidity: 5% – 90% RH (Non-condensing)
