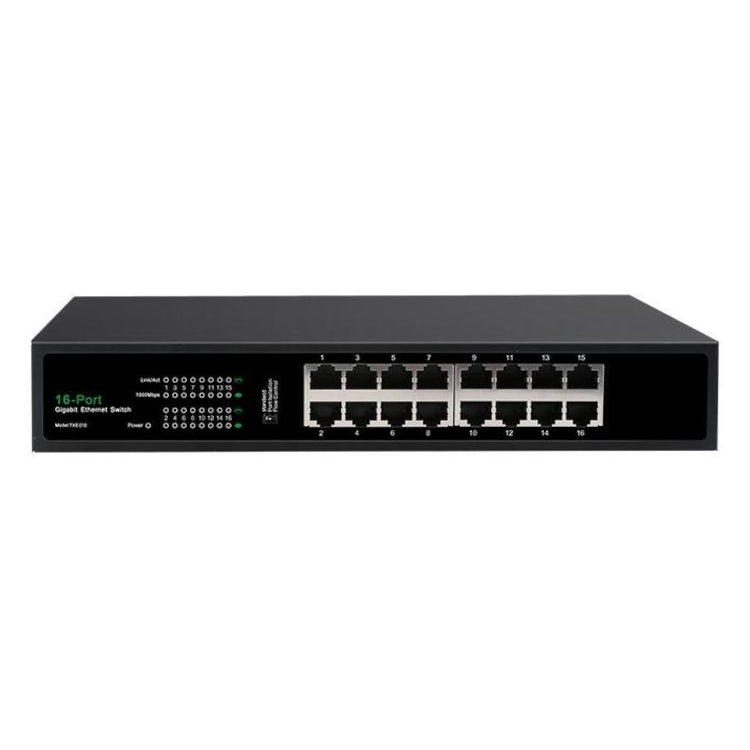

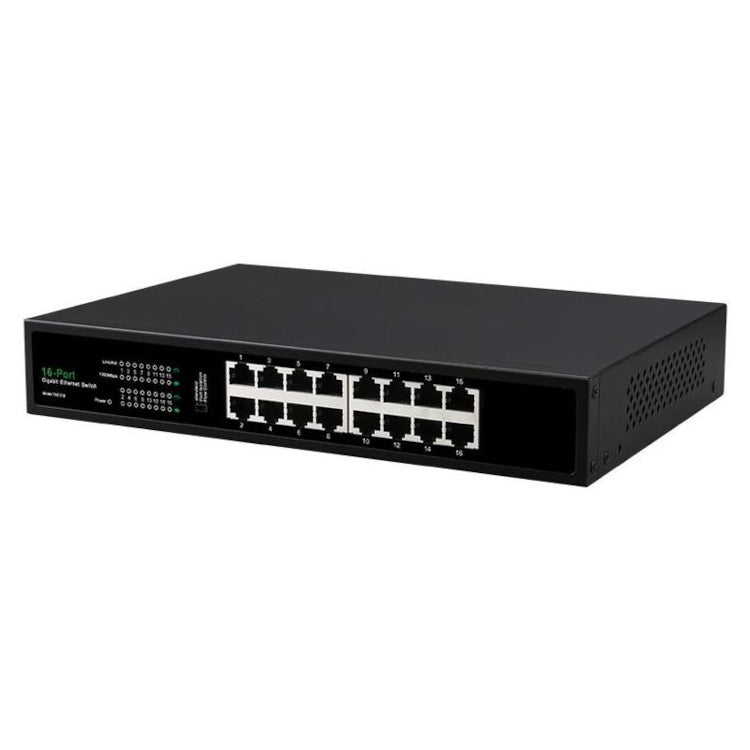

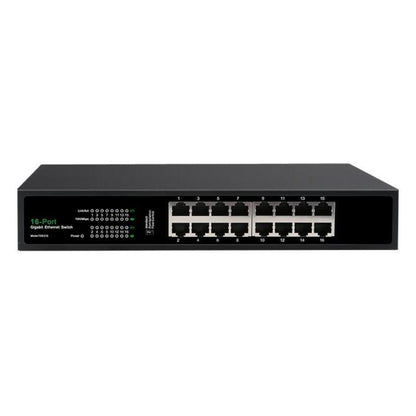

M-LINK TXE018 16-Port Gigabit Ethernet Switch | Unmanaged | Metal Chassis

M-Link TXE018 16-Port Gigabit Ethernet Switch is an unmanaged network switch designed to provide reliable high-speed wired connectivity for business, office, and professional network environments.

Equipped with sixteen Gigabit Ethernet ports, the TXE018 supports fast data transmission for computers, servers, printers, and network storage devices. Its plug-and-play design allows quick deployment without configuration or software installation.

Key Features

• 16-Port Gigabit Ethernet: Sixteen 10/100/1000Mbps RJ45 ports for high-speed wired networking.
• Unmanaged Operation: No configuration required for simple setup.
• Auto-Negotiation: Automatically detects and adjusts port speeds for connected devices.
• Auto MDI/MDIX: Eliminates the need for crossover cables.
• Port Isolation & Flow Control: Helps improve traffic management and network stability.
• Fanless Design: Silent operation suitable for office environments.
• Metal Chassis: Durable iron housing for improved heat dissipation and long-term reliability.

Performance

• Switching Capacity: 32Gbps
• Packet Forwarding Rate: 23.8 Mpps
• MAC Address Table: 8K
• Jumbo Frame: Up to 10KB

Specifications

• Ports: 16 × 10/100/1000Mbps RJ45
• Forwarding Mode: Store-and-Forward
• Power Supply: AC 100–240V, 50/60Hz
• Maximum Power Consumption: 9.26W (220V/50Hz)
• LED Indicators: Power, 1000Mbps, Link/Activity
• Dimensions: 270 × 181 × 44 mm
• Certifications: CE, FCC, RoHS

Environment

• Operating Temperature: 0°C – 40°C
• Storage Temperature: -40°C – 70°C
• Operating Humidity: 10% – 90% RH (non-condensing)
• Storage Humidity: 5% – 90% RH (non-condensing)

Ideal for: Offices, schools, retail environments, and business networks requiring dependable Gigabit Ethernet connectivity.
