M.2 Nvme 960Gb

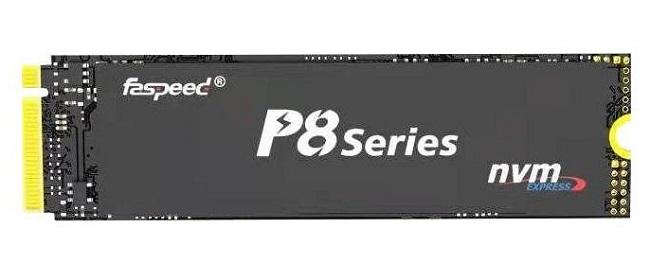

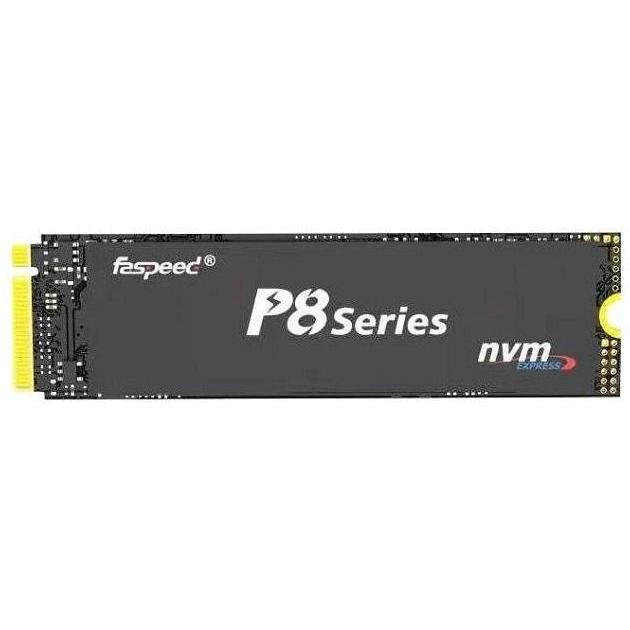

Faspeed P8 Series NVME M.2 SSD (Faspeed P8960GB) - P8960GB

Form factor:M.2

Interface:NVMe

Fully compliant with NVMe 1.3 / PCIe 3.0 x4

Wide operating TEMP range from 0? to +70? and -40? to +70? for storage TEMP

Flash management algorithm global static and dynamic wear-leveling, bad block management algorithm

MTBF:1,200,000 Hours

1.2 Capacity 960GB

Total number of Sectors(512/Sector): 1875385008

Total number of Bytes : 960197124096

Flash Type: 3D NAND Flash

1.3 Supply Voltage

Allowable voltage: 3.3 V + 5%

Allowable noise/ripple: 100mV p-p or less

1.4 Power Consumption

Active (W): 1.8-4.5

Idle (W): 0.32

1.6 Environment

Features : Temperature

Operating: 0? to +70? -40? to +70?

Non-Operating: -40? to +70?

Humidity: 5% to 95%, non-condensing

Vibration : 20G Peak, 10~2000Hz, (15mins/Axis) x3Axis

Shock :1500G, duration 0.5ms, Half Sine Wave

3.1 Physical Dimension

Length (mm) : 80 ±0.15

Width (mm) : 22 ±0.15

Height (mm) : 2.15 ±0.2

Weight(g): = 7.7g
