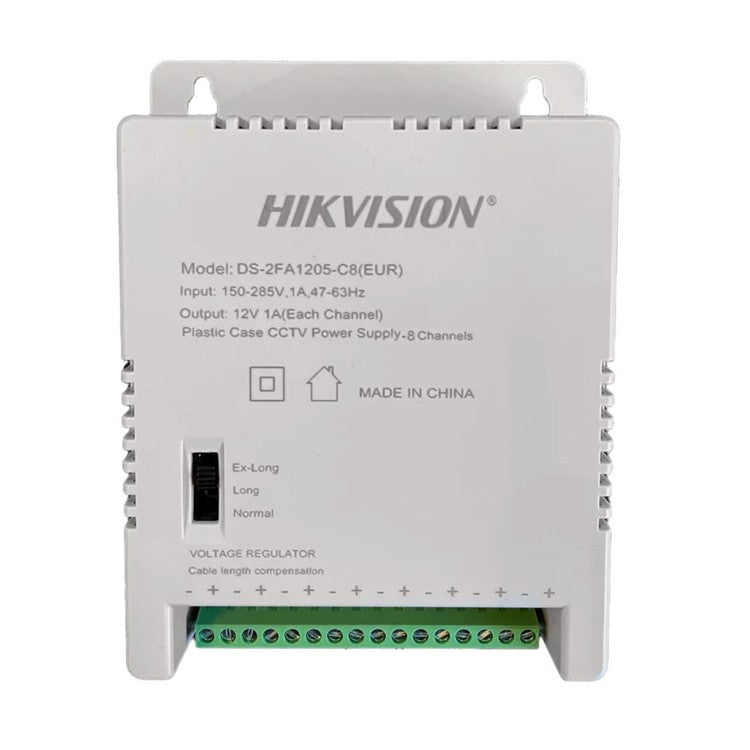

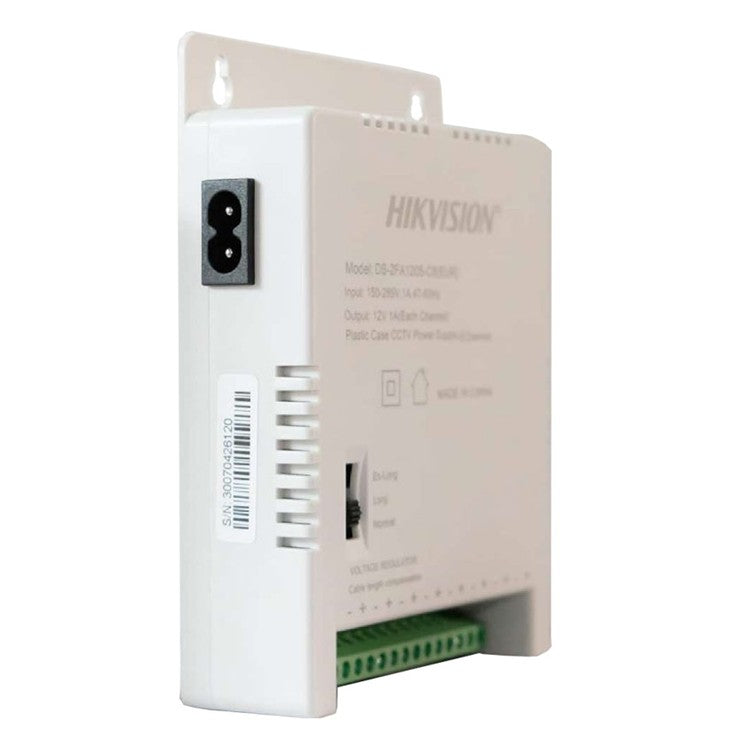

The Hikvision DS-2FA1205-C8 is a 60W switching power supply designed to distribute 12V DC power across up to eight compatible CCTV channels. Each channel supports up to 1A, with a maximum 5A total output.
Key Selling Features
8-channel CCTV power distribution
12V DC output
60W rated power
Up to 1A per channel and 5A maximum total output
Over-current, short-circuit and over-voltage protection
Product Overview
A centralised power solution for compatible surveillance installations, reducing the need for separate adapters while providing protected multi-channel power distribution.
Technical Specifications
Brand: Hikvision
Model: DS-2FA1205-C8
Rated power: 60W
Output: 12V DC
Channels: 8
Maximum output per channel: 1A
Maximum total output: 5A
Input: 150–285V AC
Dimensions: approximately 144 × 109.5 × 33mm
Compatibility / Requirements
Use with compatible 12V DC surveillance devices and ensure the combined connected load remains within the unit's total output capacity.
