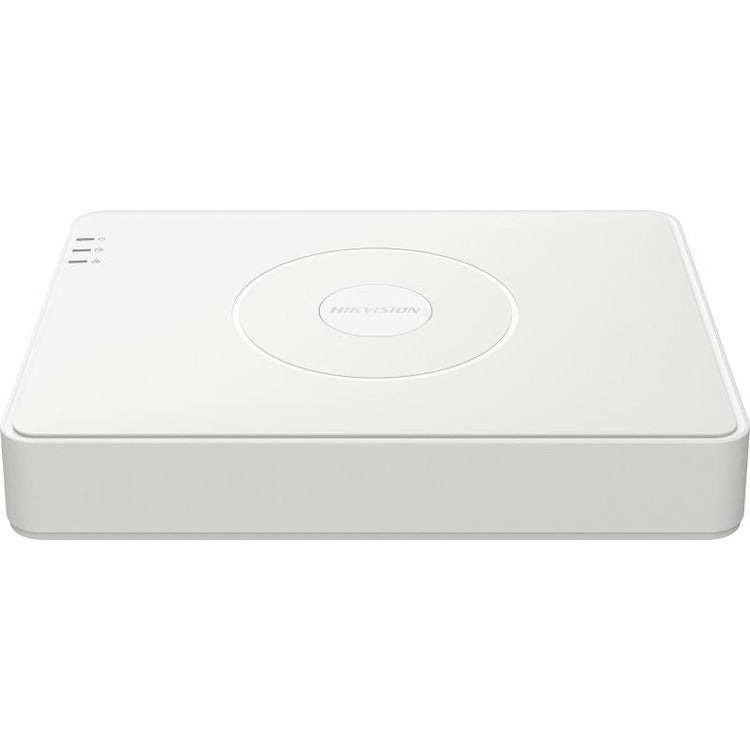

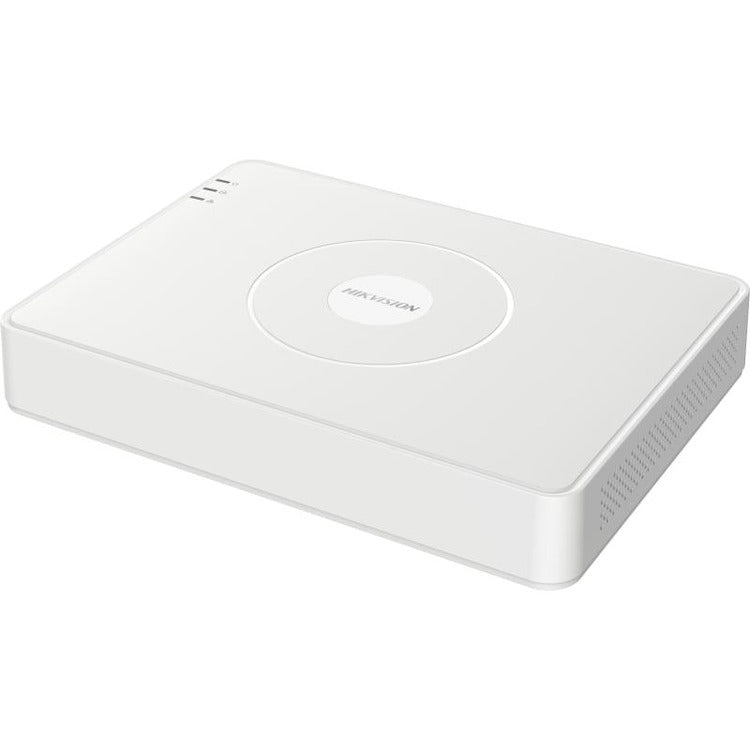

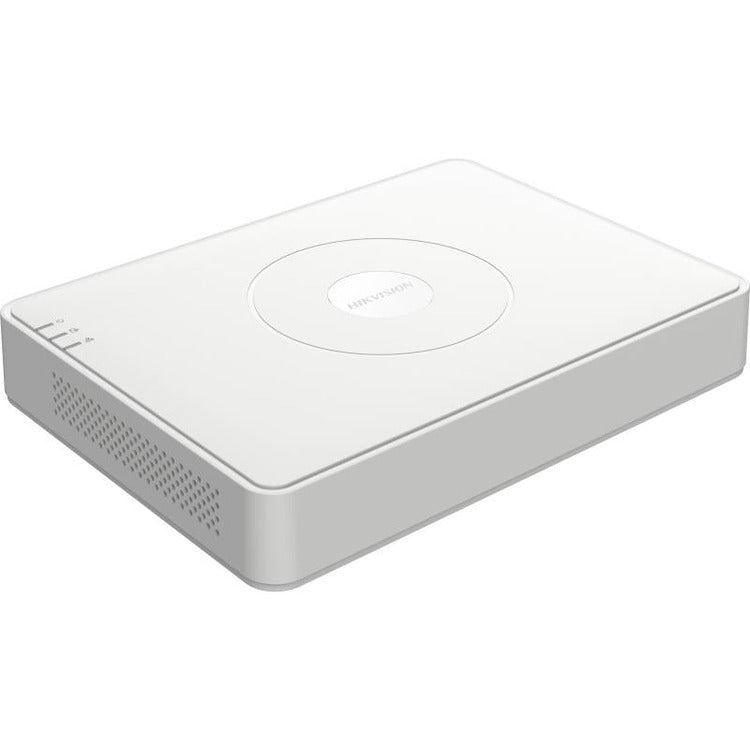

Hikvision DS-7116HGHI-M1 16-Channel Turbo HD DVR

The Hikvision DS-7116HGHI-M1 is a 16-channel Turbo HD DVR for a compatible analogue CCTV installation that needs room to grow. It accepts HDTVI, AHD, HDCVI and CVBS cameras on 16 BNC inputs, while also supporting up to 18 IP camera channels at up to 5 MP. This makes it a practical recorder for shops, offices, warehouses, schools and multi-camera residential sites where an installer needs to retain existing analogue cameras and add IP coverage where appropriate.

Choose it when you need a capable 16-channel CCTV recorder

• Replace or expand an analogue DVR: the 16 BNC inputs support HDTVI, AHD, HDCVI and CVBS signals, helping compatible mixed-camera installations transition without replacing every camera at once.
• Reduce time spent checking nuisance motion events: Motion Detection 2.0 classifies human and vehicle targets using deep learning, helping reduce false alarms caused by objects such as leaves and lights.
• Add network cameras where they add value: use up to 18 IP inputs at up to 5 MP, subject to the recorder's supported configuration and total bandwidth.
• Plan efficient recording: H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 compression options are available; one SATA interface supports a drive up to 10 TB.
• Manage the recorder remotely: Hik-Connect, DDNS, TCP/IP, PPPoE, DHCP, DNS, NTP, SADP, SMTP, UPnP and HTTPS are supported network services.

Recording, playback and camera compatibility

The DS-7116HGHI-M1 supports 1080p Lite, 720p Lite, WD1, 4CIF, VGA and CIF recording resolutions for 1080p-stream access; 720p, WD1, 4CIF, VGA and CIF for 720p-stream access; and WD1, 4CIF, VGA and CIF for standard-definition access. Main-stream recording supports up to 15 fps for the listed 1080p and 720p modes. It provides up to 16-channel synchronous playback, so an operator can review multiple cameras from a single incident window.

For IP expansion, the DVR supports up to 18 total IP camera inputs (2 standard plus up to 16 enhanced channels) at up to 5 MP, with H.265+, H.265, H.264+ and H.264 IP cameras supported. The published total network bandwidth is 96 Mbps. Confirm the final camera mix, resolution, frame rate and bitrate with your installer before ordering.

Connections and on-site setup

• 16 × BNC analogue-video inputs with coaxitron connection support
• 1 × HDMI and 1 × VGA output, usable simultaneously; up to 1920 × 1080/60 Hz output
• 1 × RCA audio input, 1 × RCA audio output and two-way audio using the first audio input
• 16 channels of audio over coaxial cable
• 1 × RJ45 10/100 Mbps self-adaptive Ethernet port
• 2 × rear USB 2.0 ports
• 1 × SATA interface for storage up to 10 TB

Exact-model specifications

Before you order

Confirm camera signal type, number of cameras, IP-camera requirement, desired recording retention and hard-drive capacity. A surveillance hard drive is required for recording, but the official datasheet does not state the sales-package contents; verify included items with Microworld Online before purchase. This product is designed for compatible Hikvision Turbo HD deployments.
