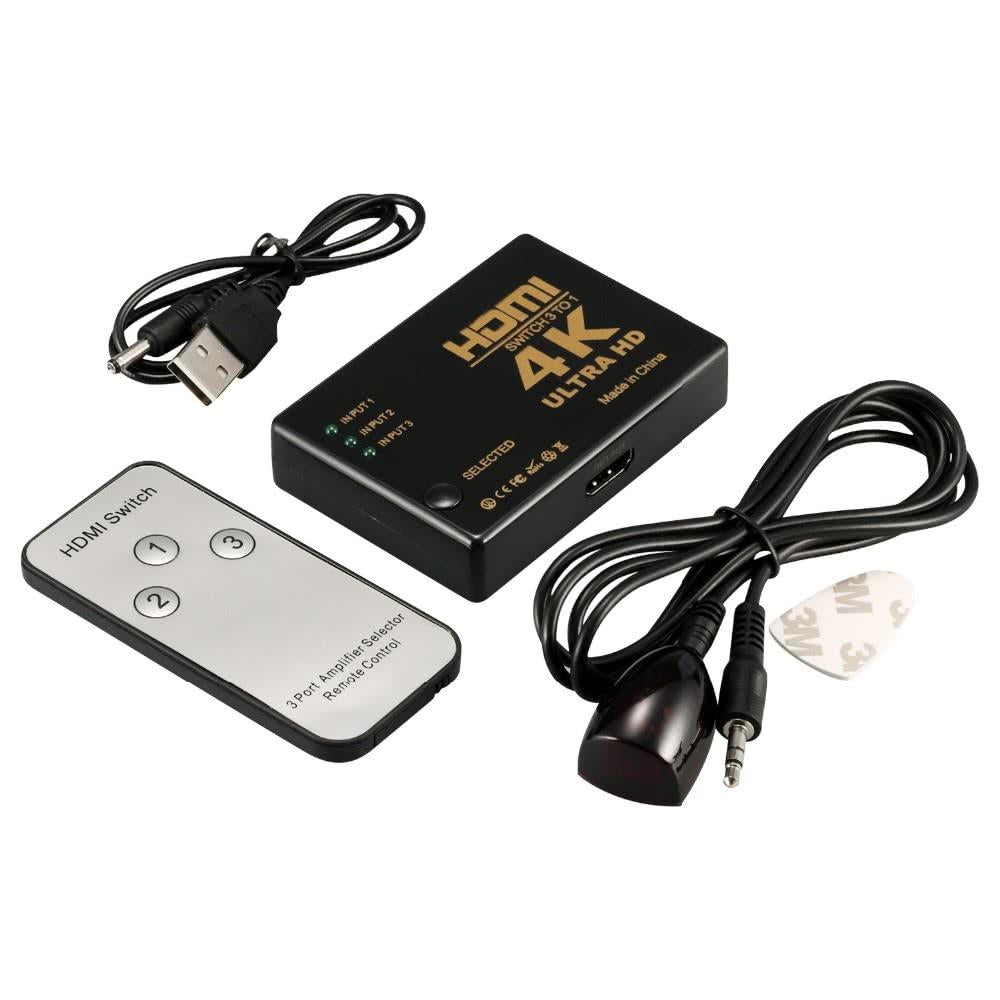

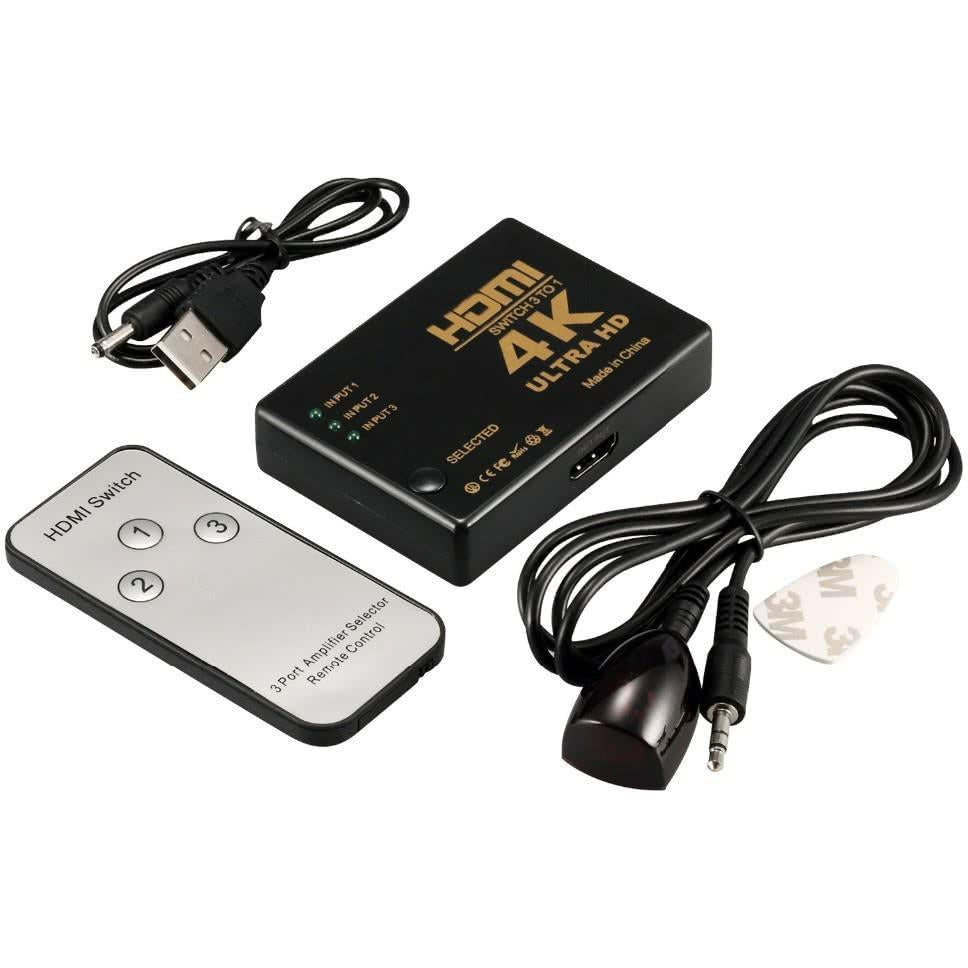

MicroWorld 3x1 HDMI Switch with IR Remote - 4K@60Hz, 3D Support, Auto Switch Function

MicroWorld HDMI Switch with built-in Equalizer & IR Remote Control – Compatible on FullHD Display

This is a high performance 3 HDMI input and 1 HDMI output switch. The system supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K. Furthermore, the remote control is included and you will be able to control which source you would like to be on.

Features:

- Compliant with HDMI2.0, HDCP2.2 and DVI 1.0

- Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:2:0

- Support 3D frame sequential video format up to 1080p@60

- Support high resolution VESA mode video format up to QSXGA@60Hz

- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

- Supports smart auto switch function

- Supports IR and Panel button control

Specifications:

Video Bandwidth – 300MHz/10.2 Gbps

Input Ports – 3 x HDMI (Female type)

Output Ports – 1 x HDMI (Female type)

Output Resolution – 480i ~1080p50/60, 4Kx2K@24/30,

4k2k@60Hz with 12bit YCBCR 4:2:0, VGA~UXGA

ESD Protection

Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)

Power Supply – 5 V/1A DC

Dimensions – 64 mm (W) × 155mm (D) × 17 mm (H)

Weight – 180 g

Chassis Material – Metal

Silkscreen Color – Black

Operating Temperature – 0 °C~40 °C/ 32 °F~104 °F

Storage Temperature -20 °C ~ 60 °C/-4 °F ~140 °F

Relative Humidity – 20~90 % RH (non-condensing)

Power Consumption – 2W

Connect and Operate

- Connect the signal sources such as Blu-Ray Player, Play Station 3, satellite receivers and computers equipped with HDMI output interfaces with a short high-speed HDMI cable to the HDMI Switcher input.

- Connect the HDMI outputs from the HDMI Switcher to high-definition display devices such as HD-LCD, HD-DLP and HD projectors with HDMI input interfaces. Use high-speed HDMI cables that are recommended for the distances that are required for each connection.

- The Switcher is powered by an external power supply which is included.
