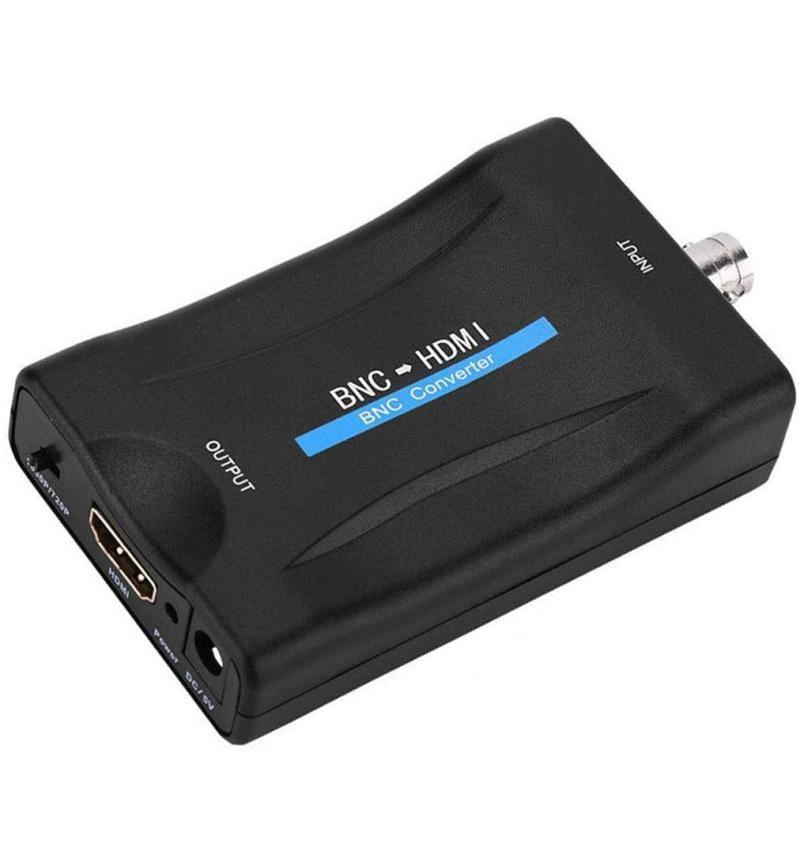

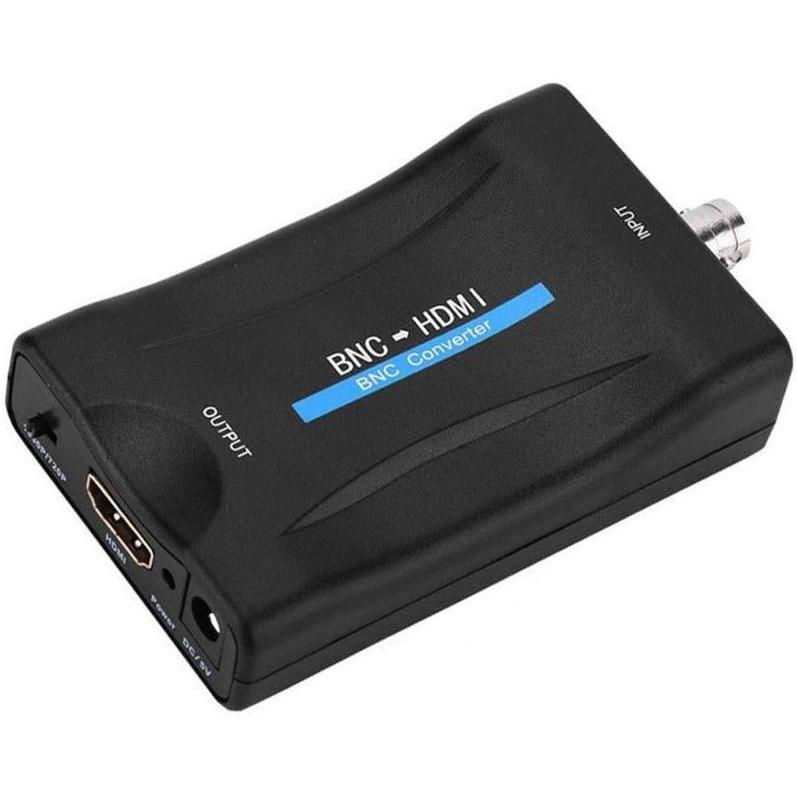

Composite BNC and Audio Input to HDMI Output Adapter with 720P/1080P Switch

Convert CVBS BNC Analog Video Signal and 3.5mm Aux Audio to HDMI Output

Specifications:

• Supports resolutions up to 1080P@50/60Hz and 720P@50/60Hz for vibrant HD displays.
• Includes 3D Compensation Technology for motion, color optimization, and noise reduction.
• Compatible with PAL/NTSC formats and standard HDMI Type A output.
• Features 4:3/16:9 aspect ratio switching and low power consumption for continuous operation.
• Plug-and-play; no driver installation required.
• Not compatible with digital cameras, AHD/TVI/CVI formats, or cable TV signals.

NOTES:

• It is only for CVBS Analog Camera, can NOT fit the Digital Camera or AHD/TVI/CVI Camera
• The Output Port is standard HDMI Type A
• It is NOT an SDI Converter, can NOT Convert Cable TV signal
• Do not use it to connect your Antenna and Cable TV
• If you use a TV set as the Monitor, switch the Input or source button on the TV clicker to the HMID mode

PLUG and PLAY

• Wire CVBS CCTV Camera or DVR with BNC Output - Coax Cable
• This Adapter - HDMI Cable - PC Monitor/ Projector/ Computer
• Works after easy installation without any special settings, no driver Software required
