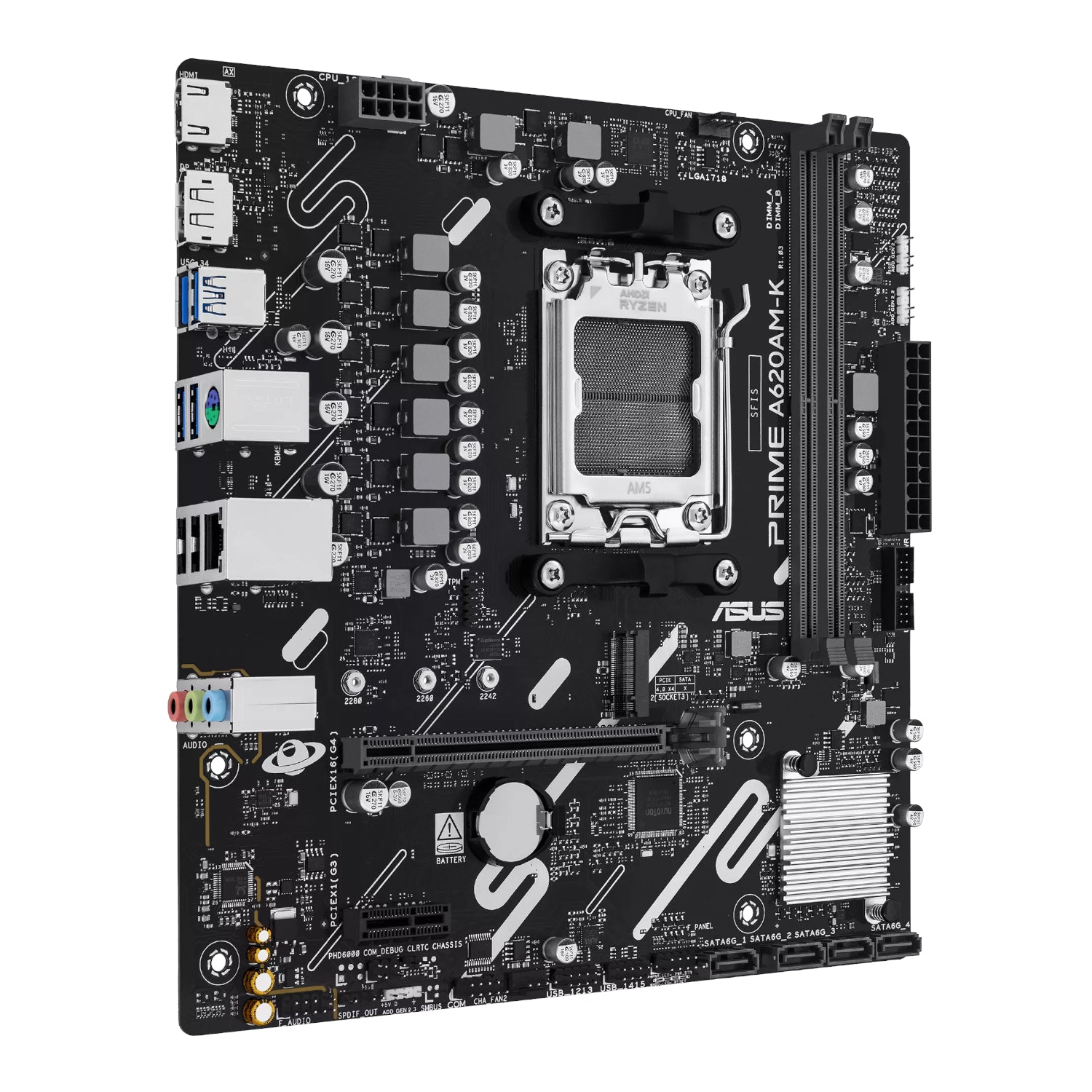

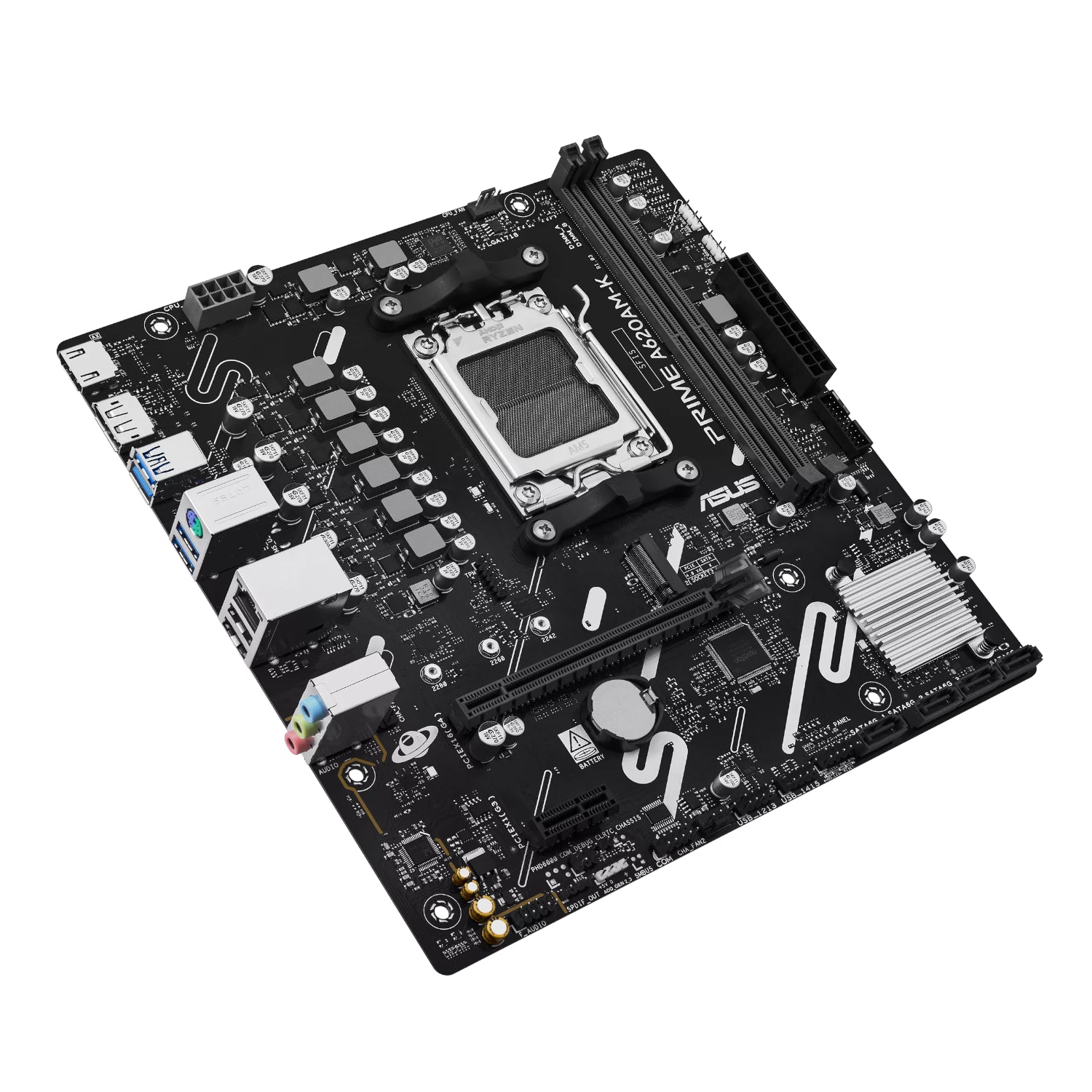

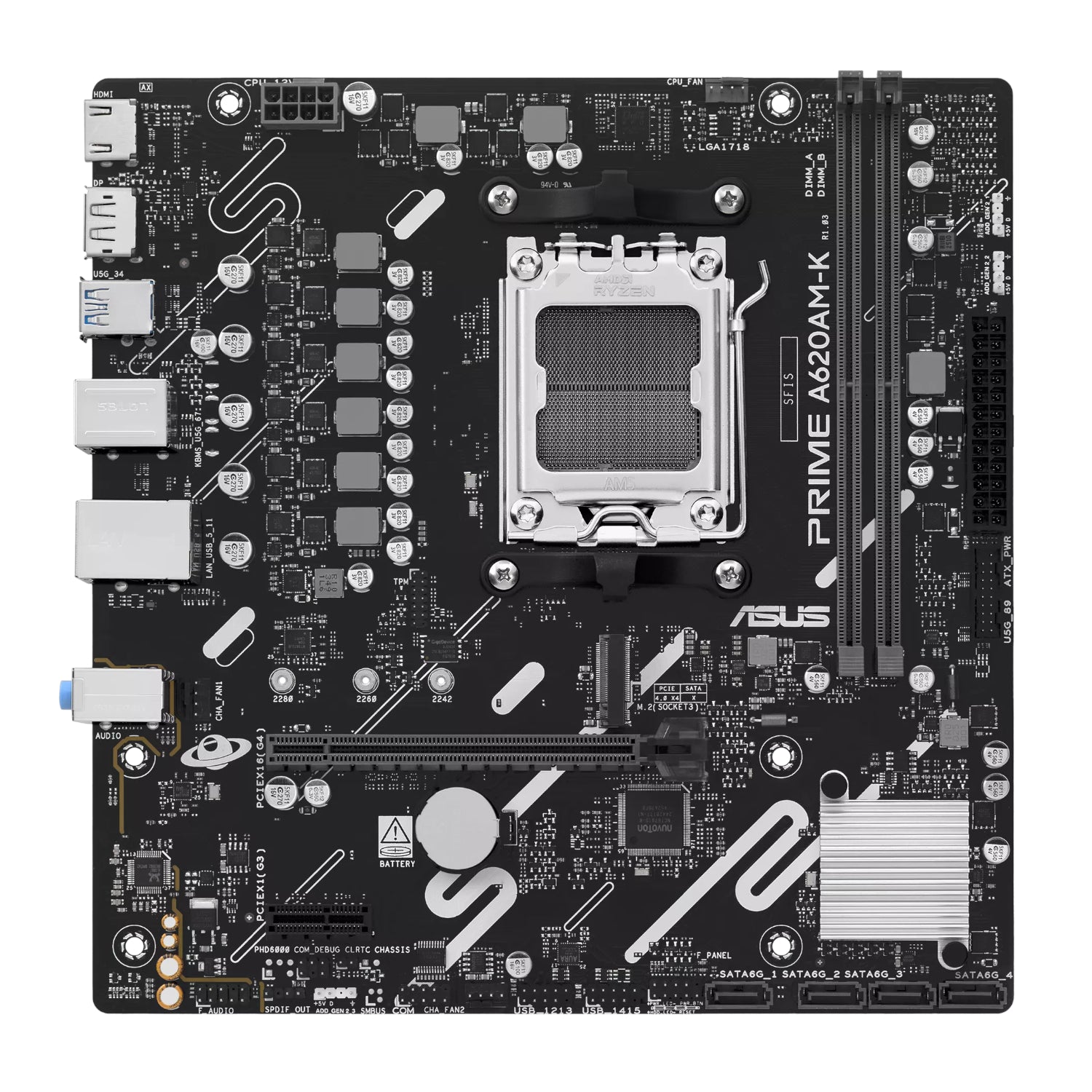

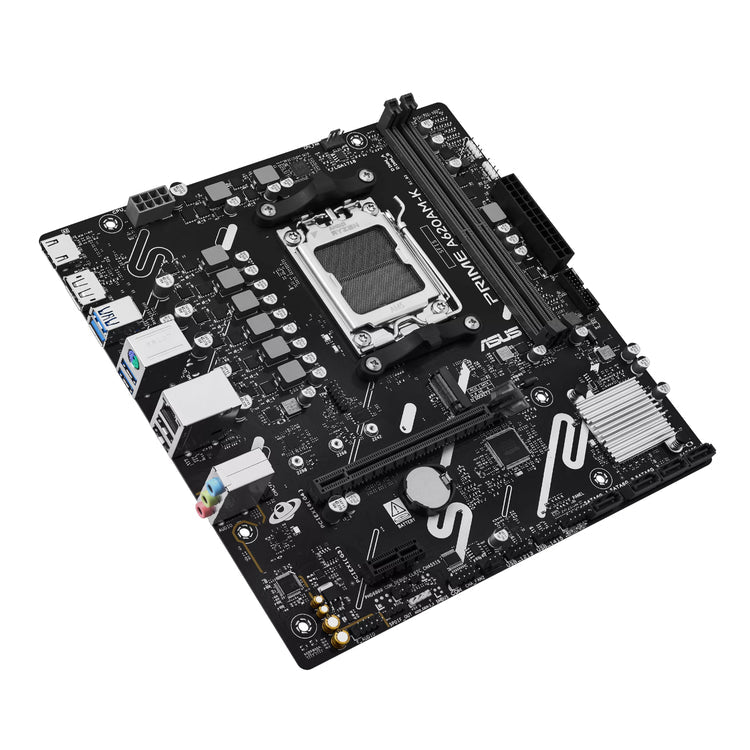

The ASUS PRIME A620AM-K is a compact AM5 micro-ATX motherboard for AMD Ryzen desktop systems. It combines DDR5 memory support, PCIe 4.0 expansion, M.2 NVMe storage and essential wired connectivity in a straightforward platform for home, office and value-focused PC builds.
Key features
AMD AM5 platform: supports compatible AMD Ryzen 9000, 8000 and 7000 Series desktop processors, with support up to 120W CPUs.
DDR5 memory: two DIMM slots with ASUS AEMP and AMD EXPO support.
PCIe 4.0 expansion: a PCIe 4.0 x16 slot for graphics plus PCIe 3.0 x1 expansion.
Fast M.2 storage: one M.2 2242/2260/2280 slot supporting PCIe 4.0 x4 NVMe drives.
Four SATA 6Gb/s ports: connect additional SSDs and hard drives.
Integrated display outputs: DisplayPort 1.4 and HDMI 2.1 for compatible Ryzen processors with integrated graphics.
1Gb Ethernet: Realtek wired LAN for dependable network connectivity.
Specifications
Model / MPN: PRIME-A620AM-K
Chipset: AMD A620A
CPU socket: AM5
Form factor: micro-ATX
Dimensions: 22.6 x 22.1 cm
Memory: 2 x DDR5 DIMM slots
Expansion: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
Storage: 1 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s
Display: 1 x DisplayPort 1.4, 1 x HDMI 2.1
Networking: Realtek 1Gb Ethernet
Audio: Realtek 7.1-channel HD audio

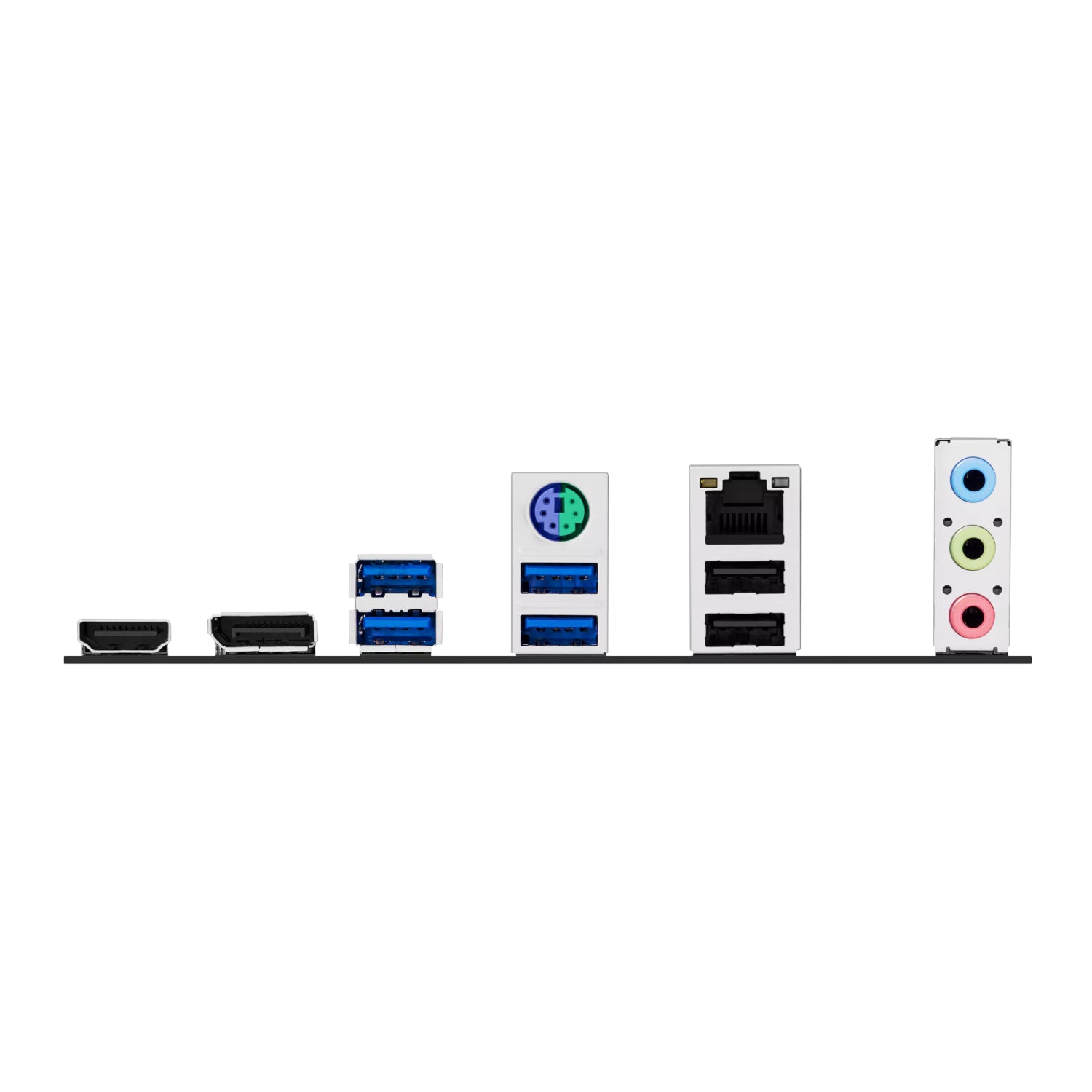

Rear USB: 4 x USB 5Gbps Type-A, 2 x USB 2.0
Lighting: 3 x Addressable Gen 2 headers
In the box

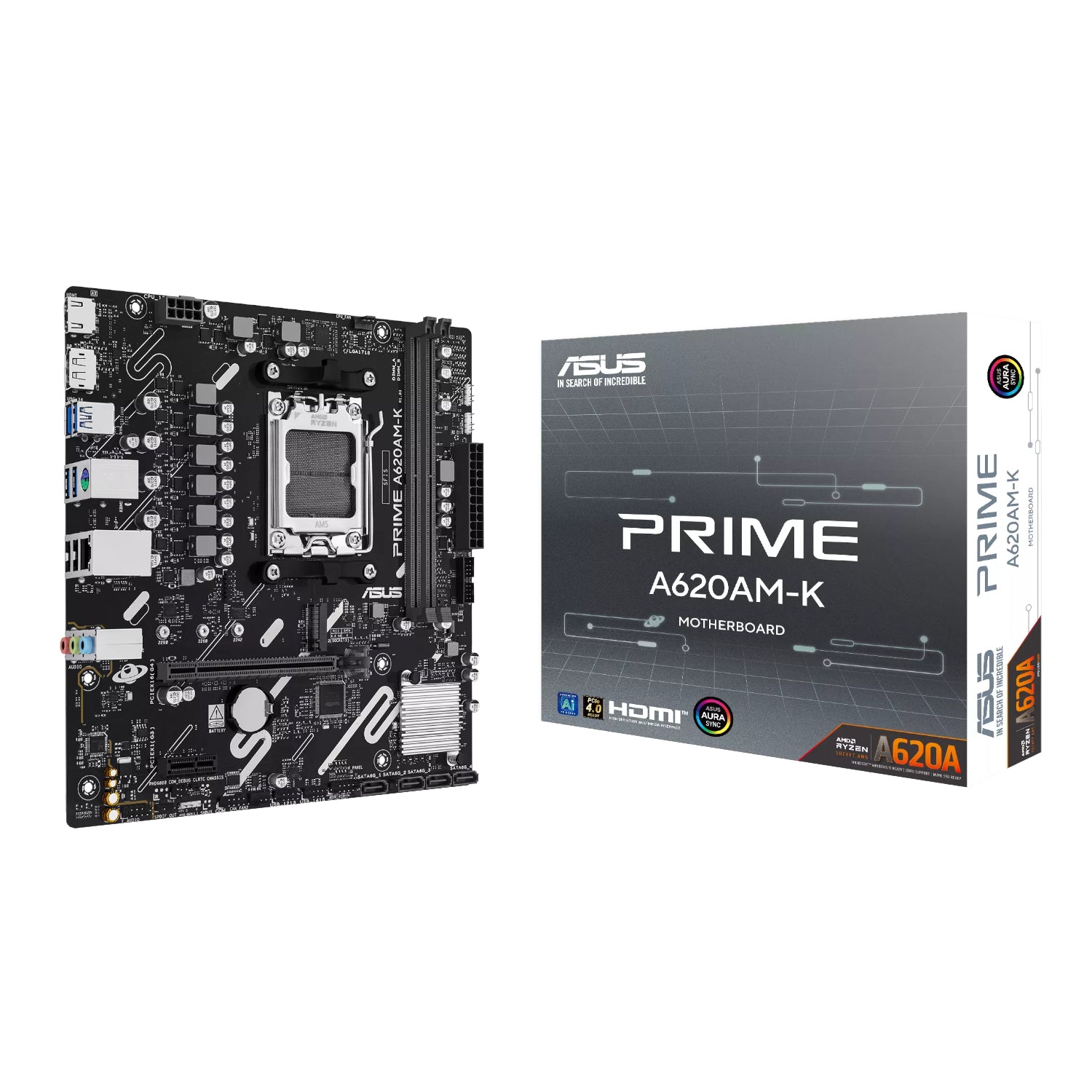

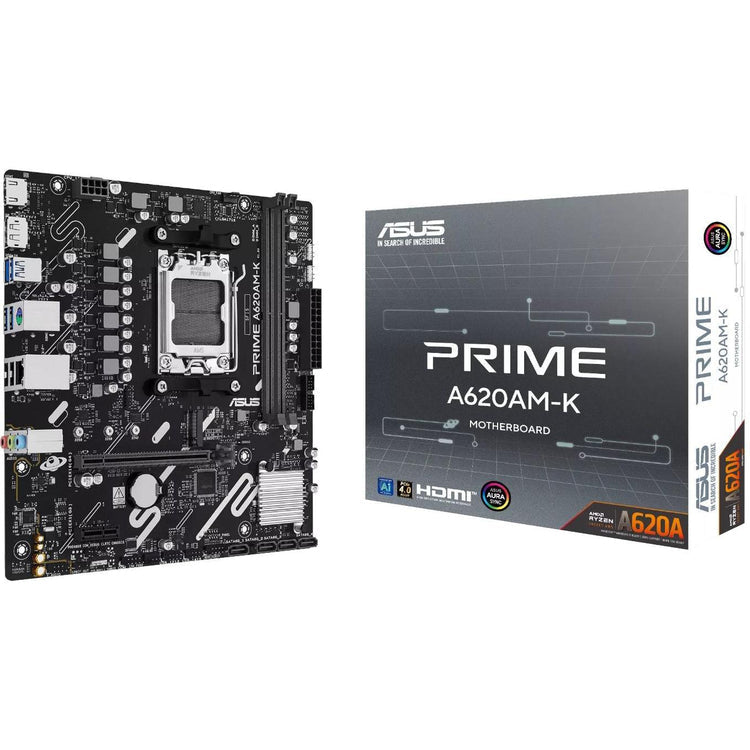

Motherboard, two SATA cables, I/O shield, M.2 screw package and quick start guide.
