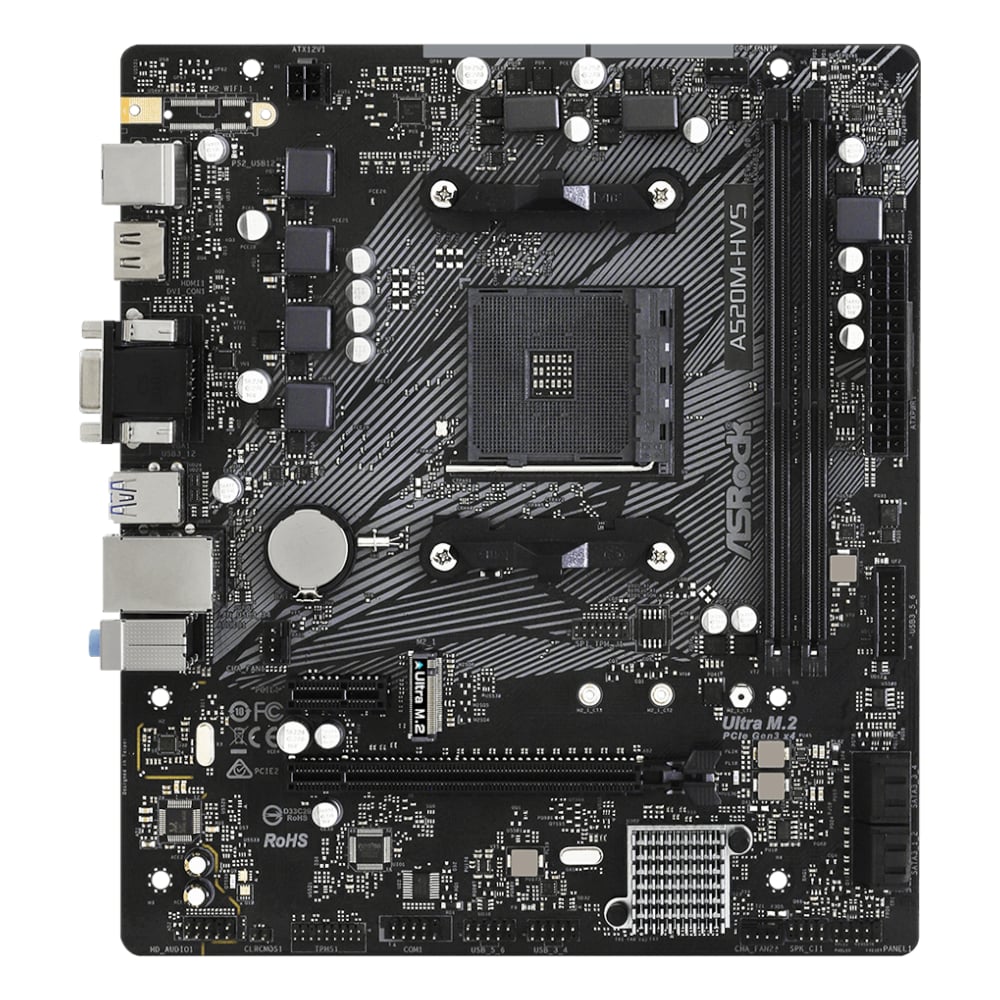

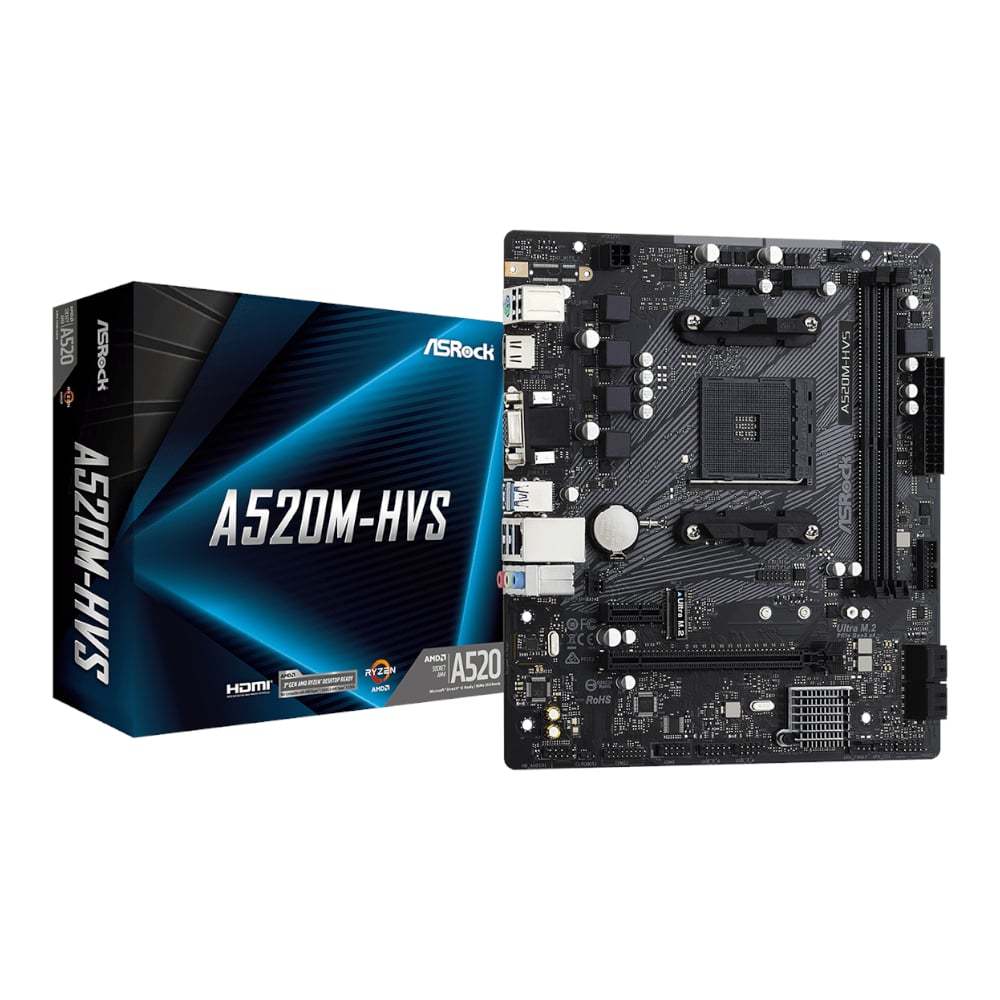

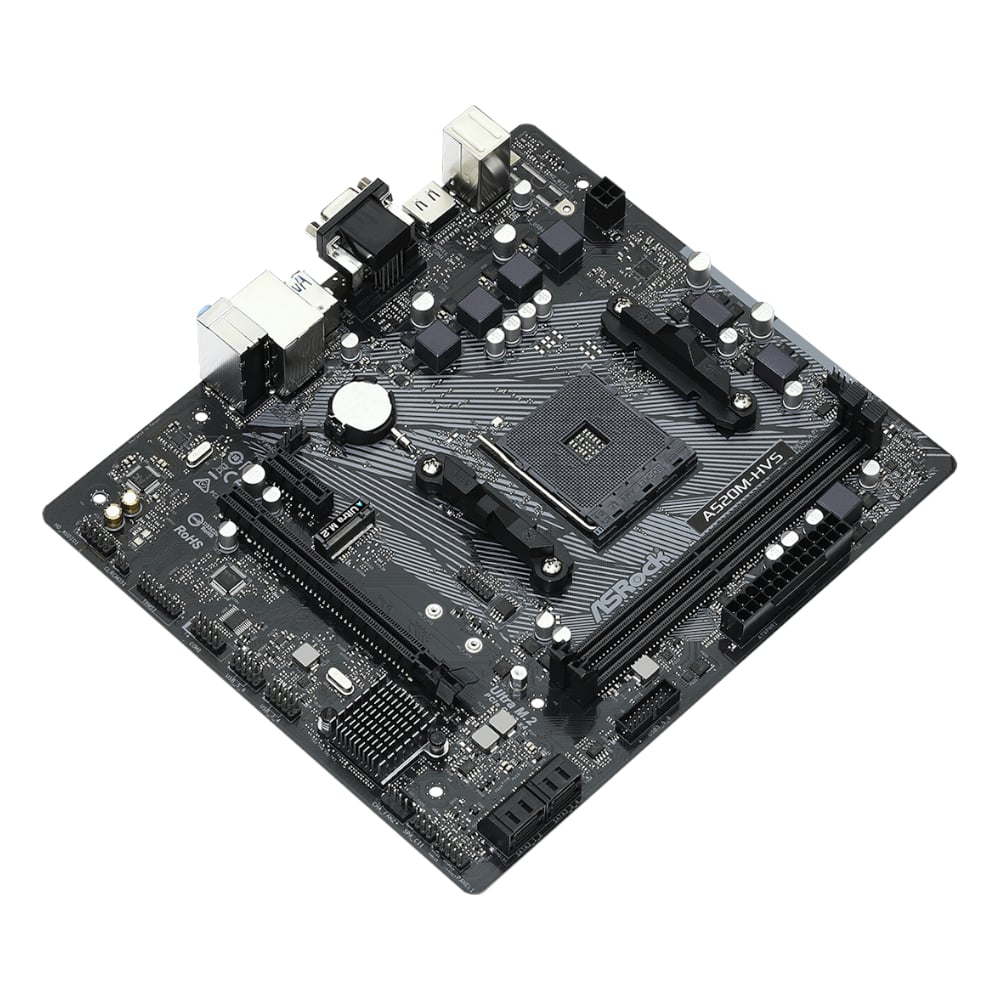

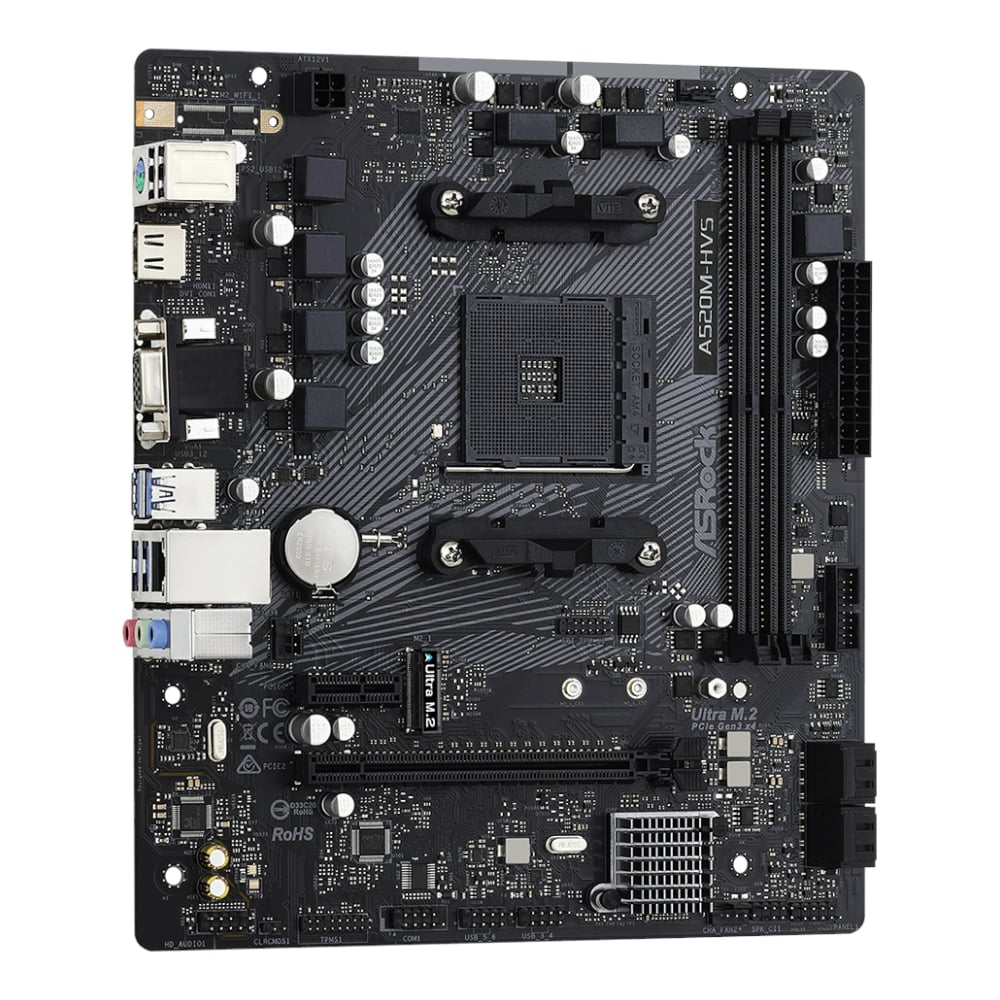

Build a compact AM4 desktop with the core connections needed for everyday productivity and home computing. The AMD A520 chipset pairs compatible Ryzen processors with dual-channel DDR4 memory, while the Micro-ATX format fits suitable compact cases.
An Ultra M.2 socket supports PCIe Gen3 ×4 and SATA M.2 storage, alongside four SATA3 ports for additional drives. Gigabit Ethernet provides wired networking, and PCIe expansion lets you add a graphics card or other compatible hardware.
Key features
AMD AM4 socket with processor support determined by the CPU support list and BIOS.
Two DDR4 DIMM slots and up to 64GB system memory.
One PCIe 3.0 x16 slot and one PCIe 3.0 x1 slot.

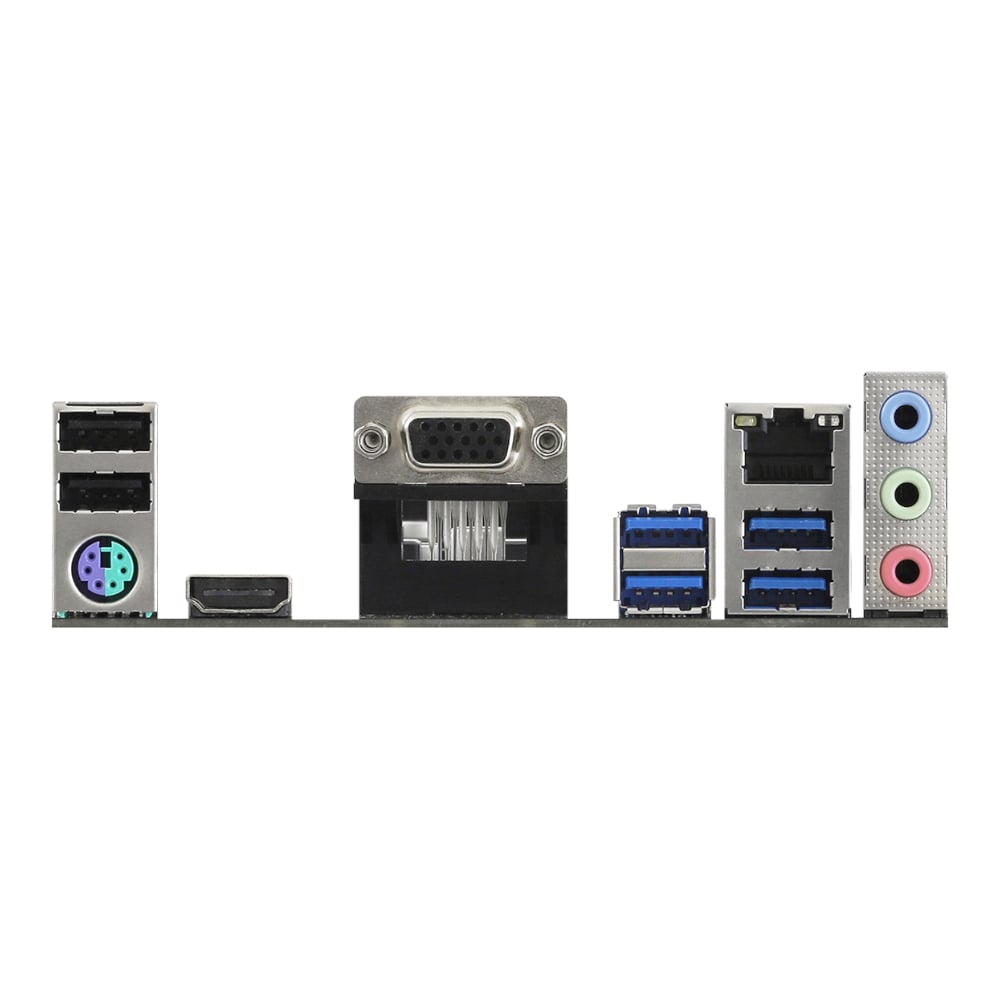

HDMI and D-Sub/VGA display outputs; no DVI output.
Specifications
Chipset
AMD A520
Socket
AMD AM4
Form factor
Micro-ATX
Memory
2 × DDR4 DIMM; dual channel; maximum 64GB
Storage
1 × Ultra M.2 (PCIe Gen3 ×4 / SATA); 4 × SATA3
Expansion
1 × PCIe 3.0 x16; 1 × PCIe 3.0 x1
Display outputs
HDMI and D-Sub/VGA
Networking
Realtek Gigabit LAN
Model
A520M-HVS
Compatibility and use
Check ASRock’s CPU and memory support lists before selecting components. A compatible processor with integrated graphics is required to use the motherboard display outputs; processors without integrated graphics require a discrete graphics card. Ryzen support depends on the exact processor and installed BIOS version.
