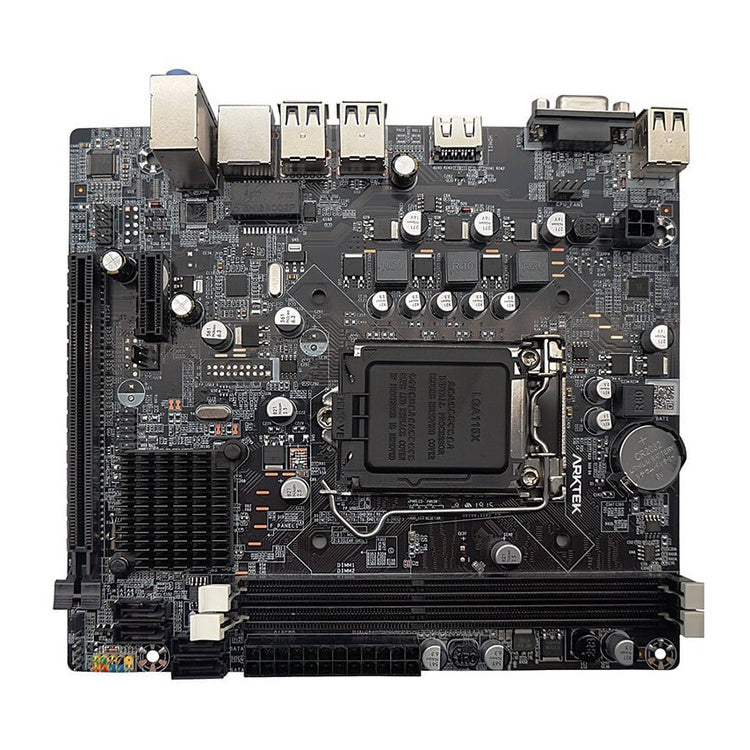

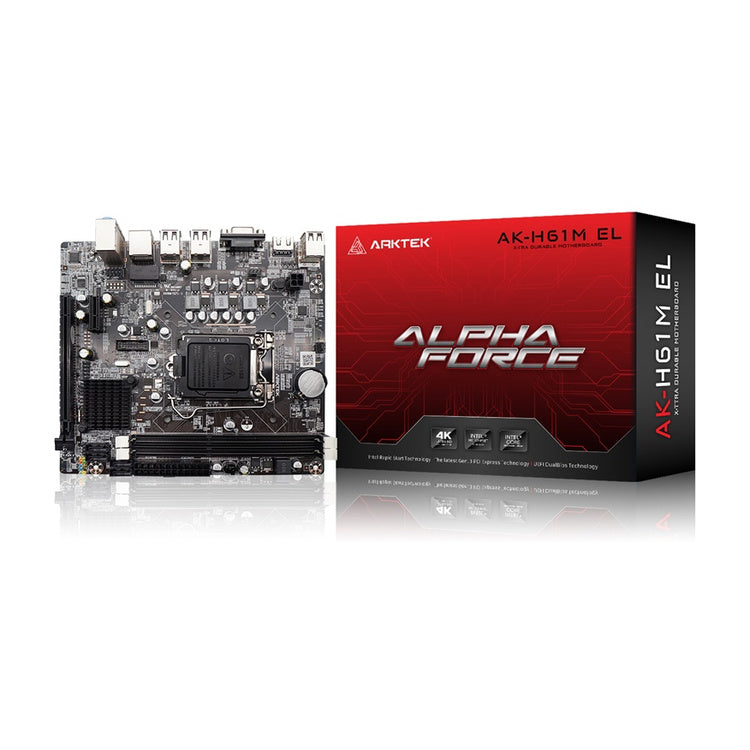

Use this Micro-ATX board for a compact legacy desktop built around a compatible LGA1155 processor and DDR3 memory. The Intel H61 platform provides a practical foundation for replacement, office and home PC builds, with integrated X4500 HD graphics, SATA storage, PCIe expansion and onboard network and audio features.
Key features
Intel H61 chipset with LGA1155 socket.
Compatible with supported 2nd- and 3rd-generation Intel Core, Pentium and Celeron processors.
Dual-channel DDR3 1066/1333/1600 support with two DIMM slots.
Integrated Intel Graphics Media Accelerator X4500 HD.
Four SATA ports, VGA and digital display output, six rear USB 2.0 ports, Realtek LAN/audio, PCIe x16 and PCIe x1 expansion.
Micro-ATX form factor measuring approximately 18.5 x 16.8 cm.
Specifications
Model: AK-H61M EL
Chipset: Intel H61
Socket: LGA1155
Memory: Dual-channel DDR3 1066/1333/1600
Storage: 4 x SATA
Form factor: Micro-ATX, approximately 18.5 x 16.8 cm
Compatibility note: Confirm the supplied revision, processor support and included accessories before installation.
