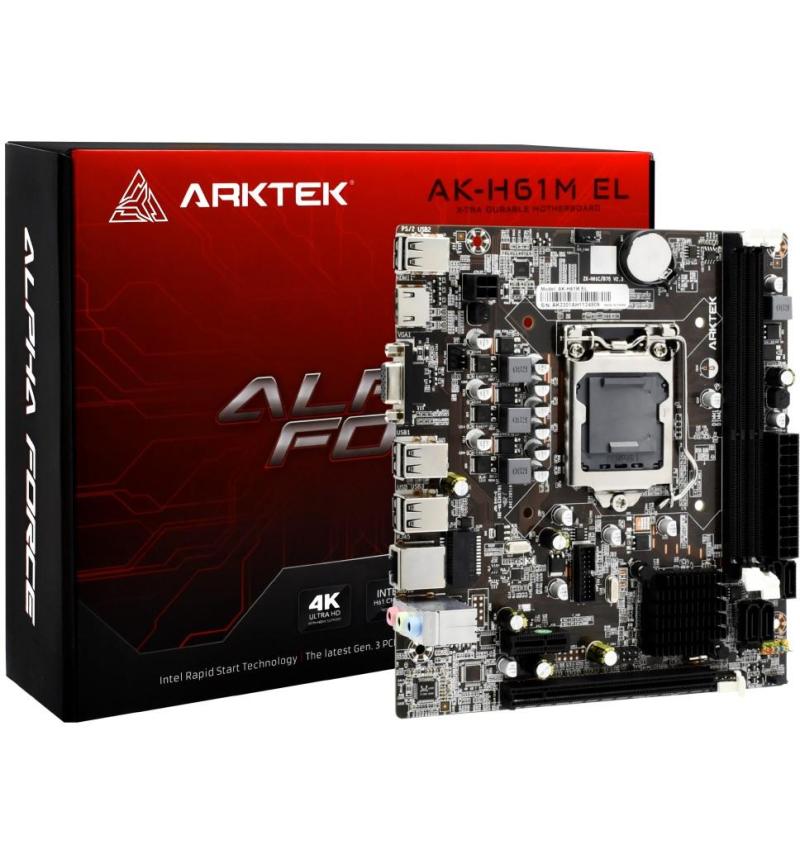

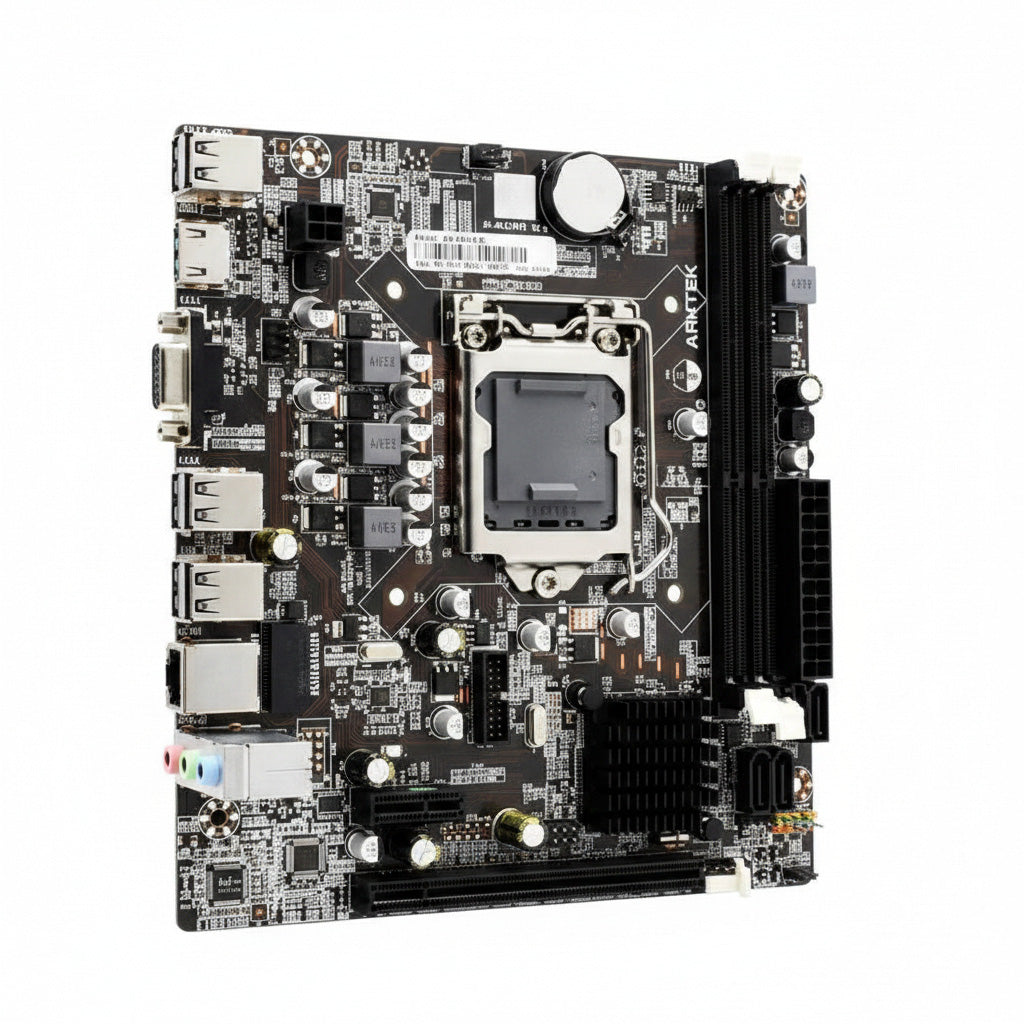

ARKTEK AK-H61M EL LGA1155 DDR3 Motherboard

ARKTEK AK-H61M EL Intel H61 LGA1155 Micro-ATX Motherboard

The ARKTEK AK-H61M EL is a Micro-ATX motherboard designed for compatible second and third-generation Intel LGA1155 processors. It supports dual-channel DDR3 memory, integrated graphics and essential connectivity for home, office and entry-level desktop systems.

Specifications

• Brand: ARKTEK
• Model: AK-H61M EL
• Product Type: Desktop Motherboard
• Form Factor: Micro-ATX
• Dimensions: 18.5 × 16.8cm
• CPU Socket: Intel LGA1155
• Chipset: Intel H61
• Supported Processors: Compatible second and third-generation Intel Core i7, Core i5, Core i3, Pentium and Celeron processors
• Memory Type: Dual-channel DDR3
• Memory Slots: 2 × DDR3 DIMM slots
• Supported Memory Speeds: DDR3 1066/1333/1600MHz
• Maximum Memory: Up to 16GB
• Graphics: Supports integrated Intel graphics from compatible processors
• Display Outputs: 1 × HDMI and 1 × VGA
• LAN: Realtek 10/100/1000Mbps Ethernet
• Audio: Realtek 6-channel audio
• Storage Connections: 4 × SATA ports
• Expansion Slots: 1 × PCI Express x16 and 1 × PCI Express x1
• Rear USB Ports: 6 × USB 2.0
• Internal USB Headers: 2 × USB 2.0 headers supporting up to four additional ports
• Other Rear Connections: RJ45 LAN and three audio jacks

Please note: The processor, memory, storage and other components are sold separately. Display outputs require a processor with integrated graphics. Confirm processor and memory compatibility before purchasing.

What’s in the Box?

• 1 × ARKTEK AK-H61M EL Motherboard
• 1 × SATA Cable
• 1 × I/O Shield
• 1 × User Manual
• 1 × Driver Disc
