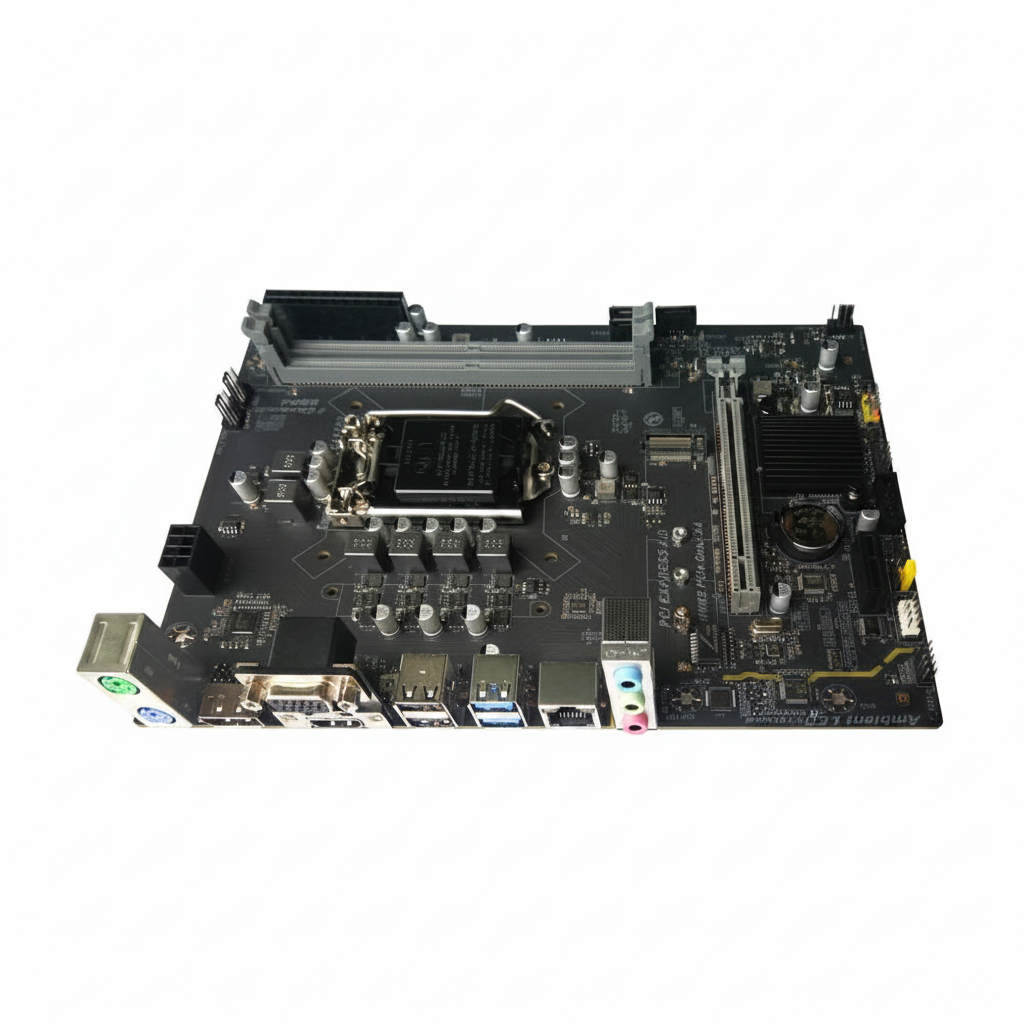

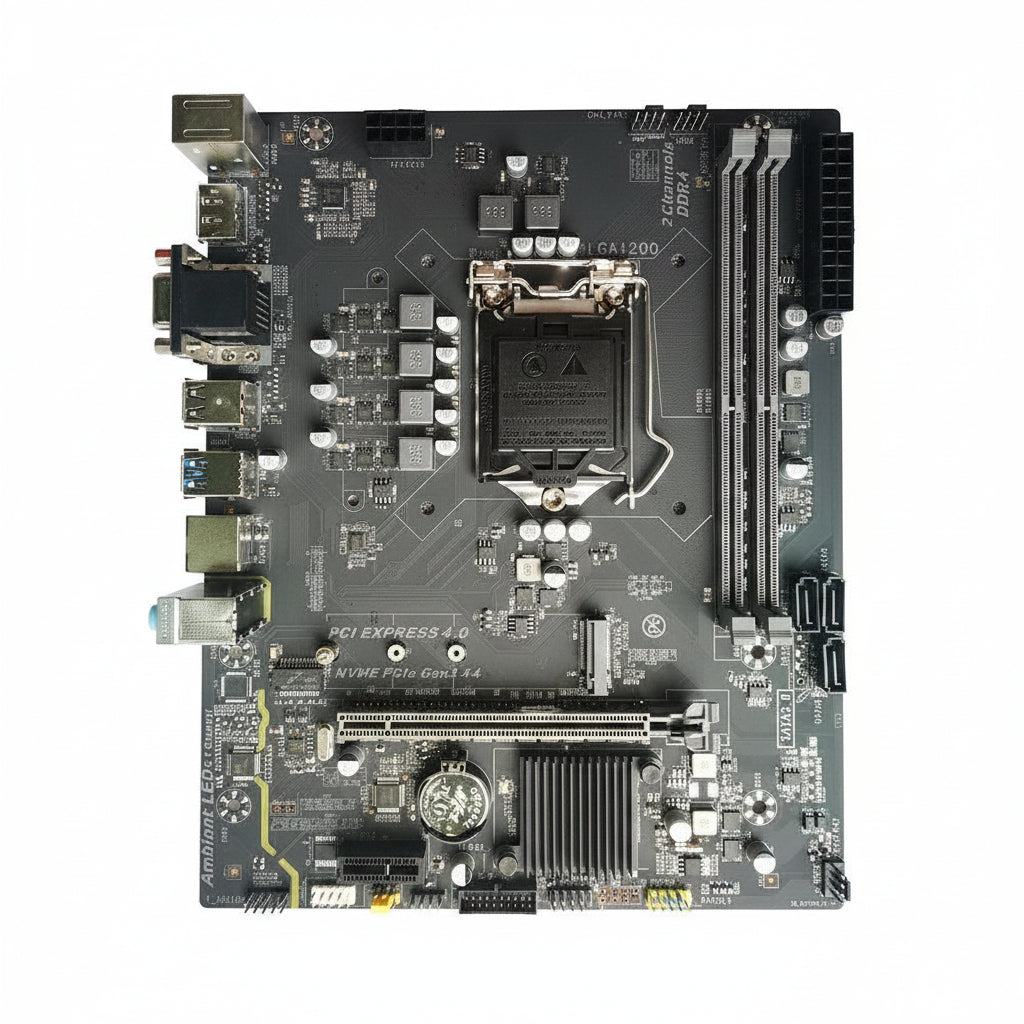

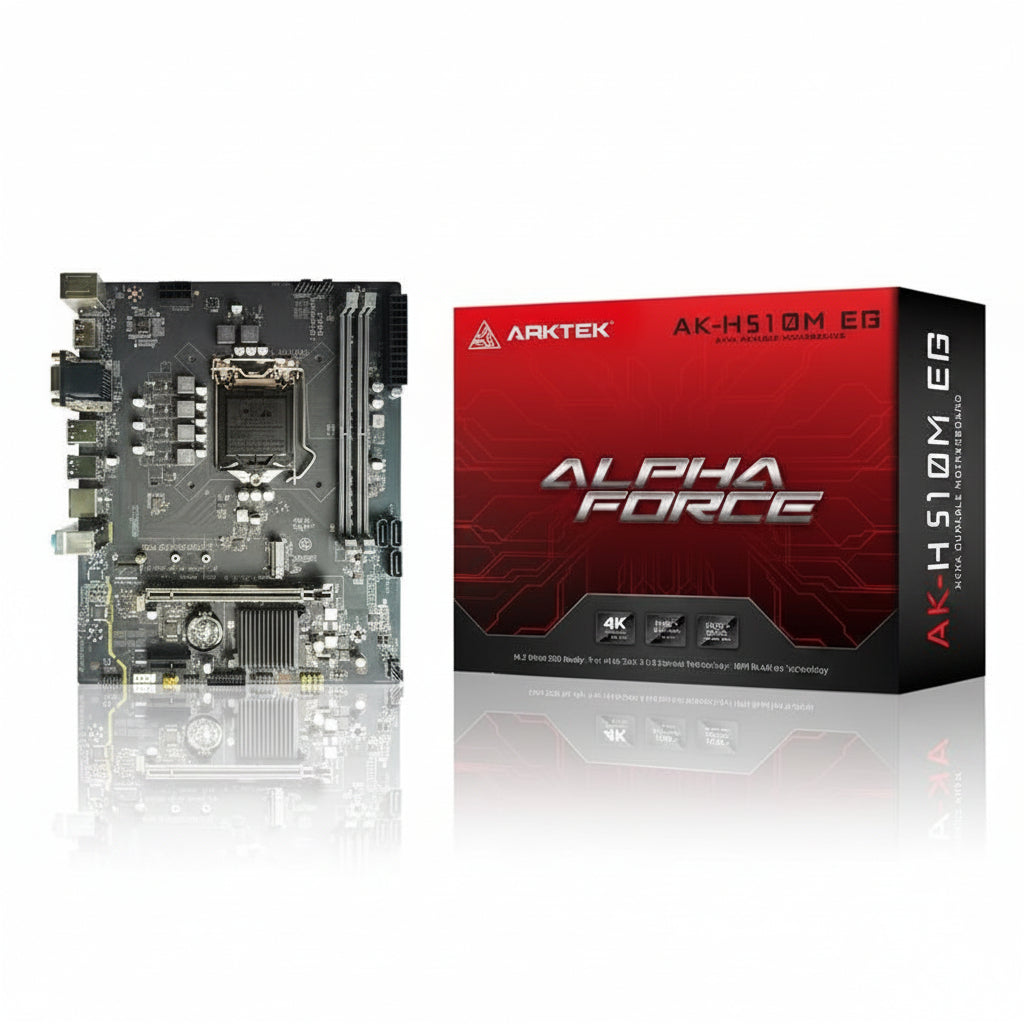

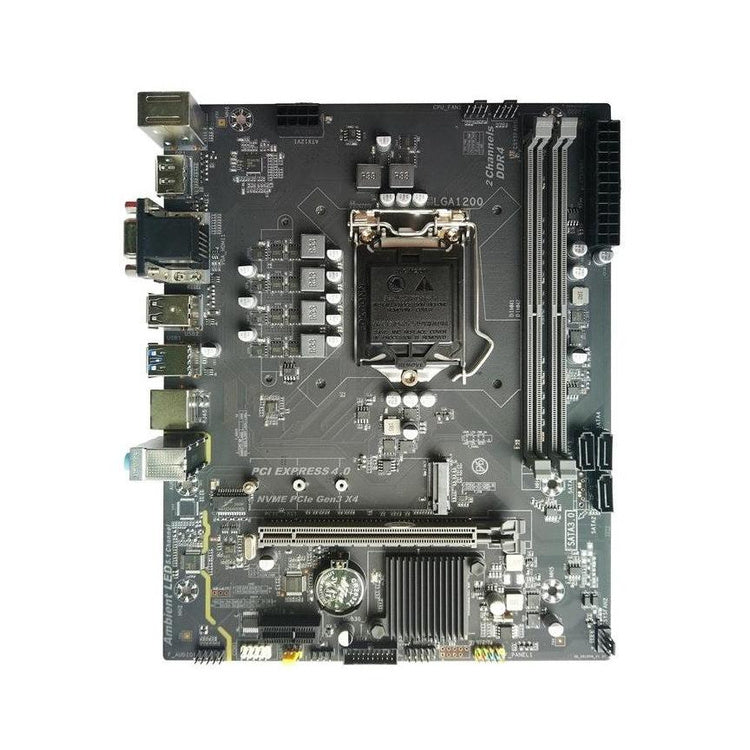

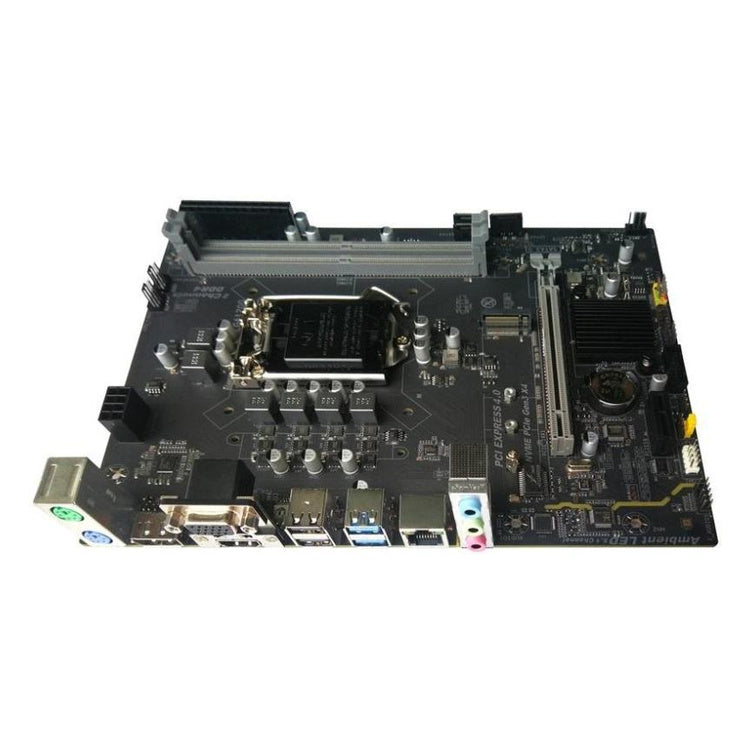

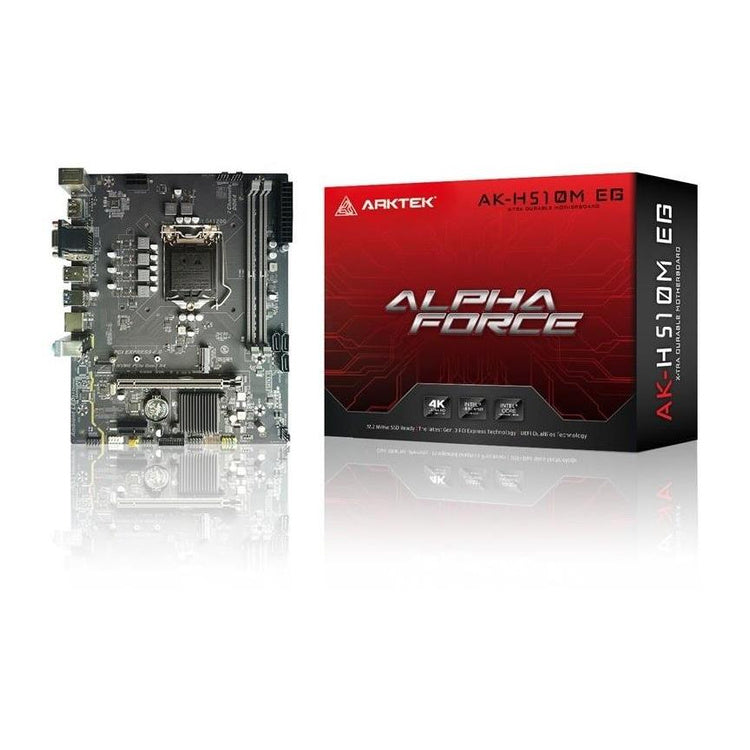

ARKTEK AK-H510M EG LGA1200 DDR4 Motherboard

ARKTEK AK-H510M EG Intel H510 LGA1200 Micro-ATX Motherboard

The ARKTEK AK-H510M EG is a Micro-ATX motherboard designed for compatible 10th and 11th generation Intel LGA1200 processors. It offers dual-channel DDR4 memory, NVMe storage support and essential connectivity for home, office and performance desktop builds.

Specifications

• Brand: ARKTEK
• Model: AK-H510M EG
• Product Type: Desktop Motherboard
• Form Factor: Micro-ATX
• Dimensions: 22 × 17cm
• CPU Socket: Intel LGA1200
• Chipset: Intel H510
• Supported Processors: 10th and 11th generation Intel Core i9, Core i7, Core i5, Core i3, Pentium and Celeron processors
• Memory Type: Dual-channel DDR4
• Memory Slots: 2 × DDR4 DIMM slots
• Supported Memory Speeds: 2133/2400/2800MHz
• Memory Feature: XMP support
• Graphics: Supports integrated Intel graphics from compatible processors
• Display Outputs: 1 × HDMI and 1 × DisplayPort
• LAN: Realtek 10/100/1000Mbps Gigabit Ethernet
• Audio: 5.1-channel audio with three 3.5mm audio ports
• Storage Connections: 3 × SATA 6Gbps ports
• M.2 Slot: 1 × PCIe 3.0 x4 NVMe M.2 slot
• Expansion Slots: 1 × PCI Express x16 and 1 × PCI Express x1
• Rear USB Ports: 2 × USB 2.0 and 2 × USB 3.0
• Internal USB Support: Up to four USB 2.0 and two USB 3.0 ports
• Other Rear Connections: PS/2 keyboard, PS/2 mouse, RJ45 LAN and audio ports

Please note: The processor, memory, storage and other components are sold separately. Display outputs require a processor with integrated graphics.

What’s in the Box?

• 1 × ARKTEK AK-H510M EG Motherboard
• 1 × SATA Cable
• 1 × I/O Shield
• 1 × User Manual
• 1 × Driver Disc
