ARKTEK AK-H110M EG LGA1151 DDR4 Motherboard

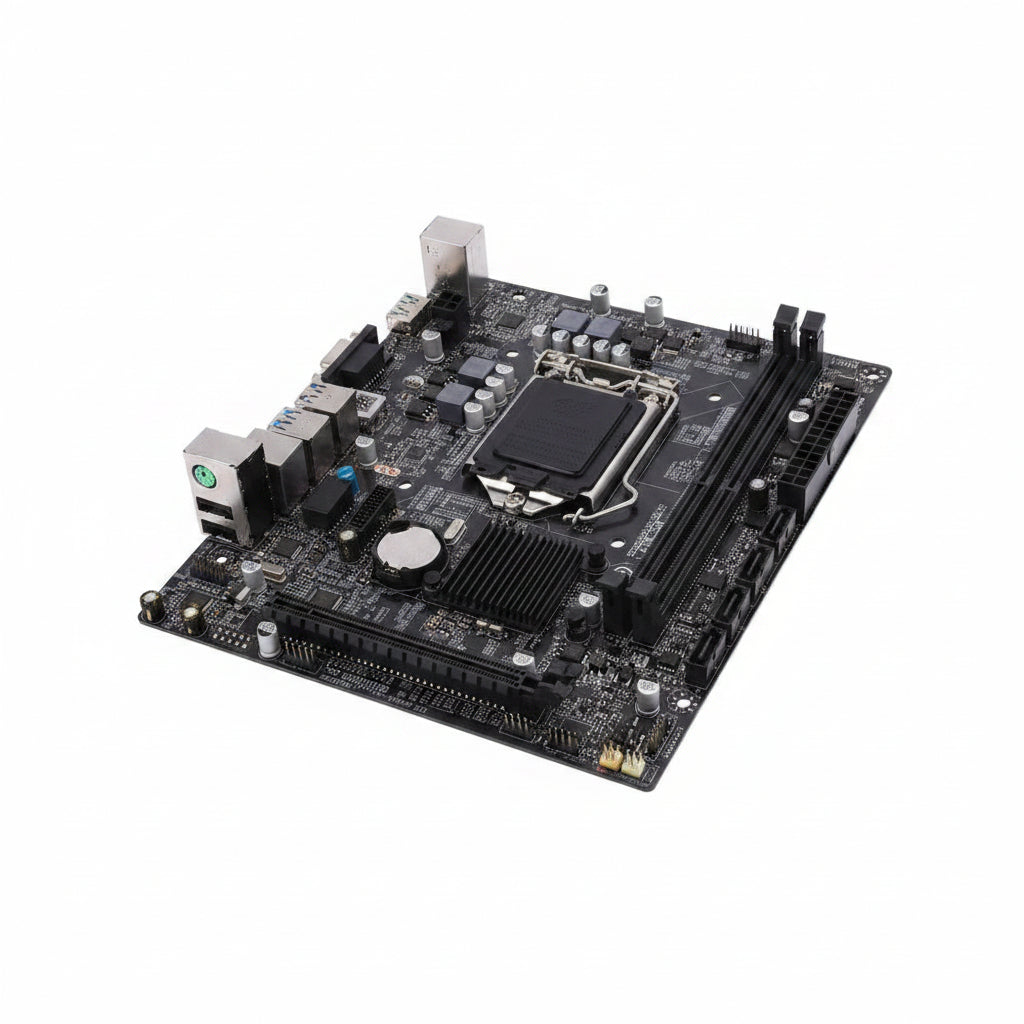

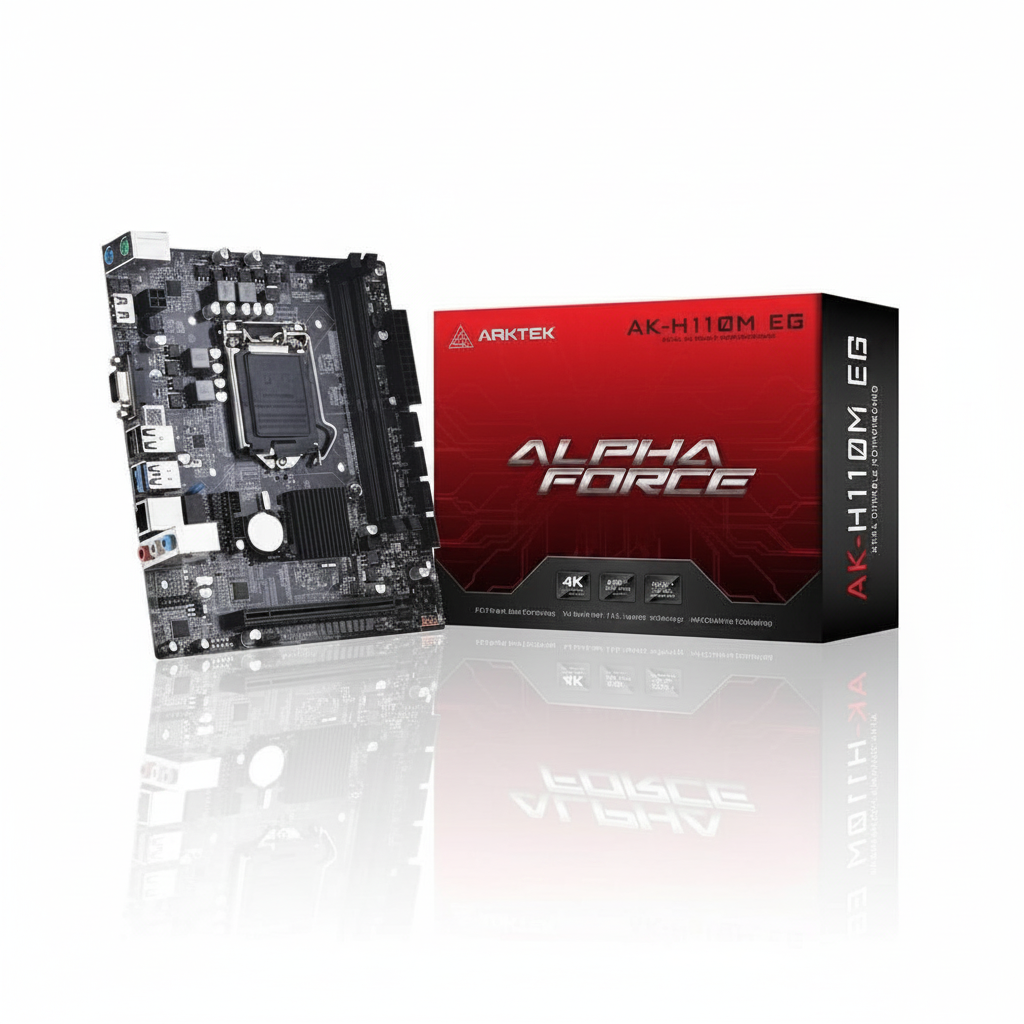

ARKTEK AK-H110M EG Intel H110 LGA1151 Micro-ATX Motherboard

The ARKTEK AK-H110M EG is a Micro-ATX motherboard designed for compatible Intel LGA1151 processors. It offers dual-channel DDR4 memory support, M.2 and SATA storage connections, integrated graphics support and essential connectivity for home, office and entry-level desktop builds.

Specifications

• Brand: ARKTEK
• Model: AK-H110M EG
• Product Type: Desktop Motherboard
• Form Factor: Micro-ATX
• Dimensions: 22 × 17cm
• CPU Socket: Intel LGA1151
• Chipset: Intel H110
• Supported Processors: Compatible Intel Core i7, Core i5, Core i3, Pentium and Celeron processors
• Memory Type: Dual-channel DDR4
• Memory Slots: 2 × DDR4 DIMM slots
• Supported Memory Speeds: 2400/2666/3000MHz
• Maximum Memory: Up to 32GB
• Graphics: Supports integrated Intel HD Graphics from compatible processors
• Display Outputs: 1 × VGA and 1 × HDMI
• LAN: Realtek RTL8105E 10/100Mbps Ethernet
• Audio: Realtek ALC661 6-channel audio
• Storage Connections: 3 × SATA ports
• M.2 Slot: 1 × M.2 supporting PCIe and SATA modes
• Expansion Slot: 1 × PCI Express x16
• Rear USB Ports: 2 × USB 2.0 and 2 × USB 3.0
• Internal USB Headers: USB 2.0 and USB 3.0 headers
• Operating System Support: Windows 7, 8, 8.1 and 10 64-bit

Please note: The processor, memory, storage and other components are sold separately. Processor-generation support may depend on the installed BIOS version, so confirm compatibility before purchasing.

What’s in the Box?

• 1 × ARKTEK AK-H110M EG Motherboard
• 1 × SATA Cable
• 1 × I/O Shield
• 1 × User Manual
• 1 × Driver Disc
