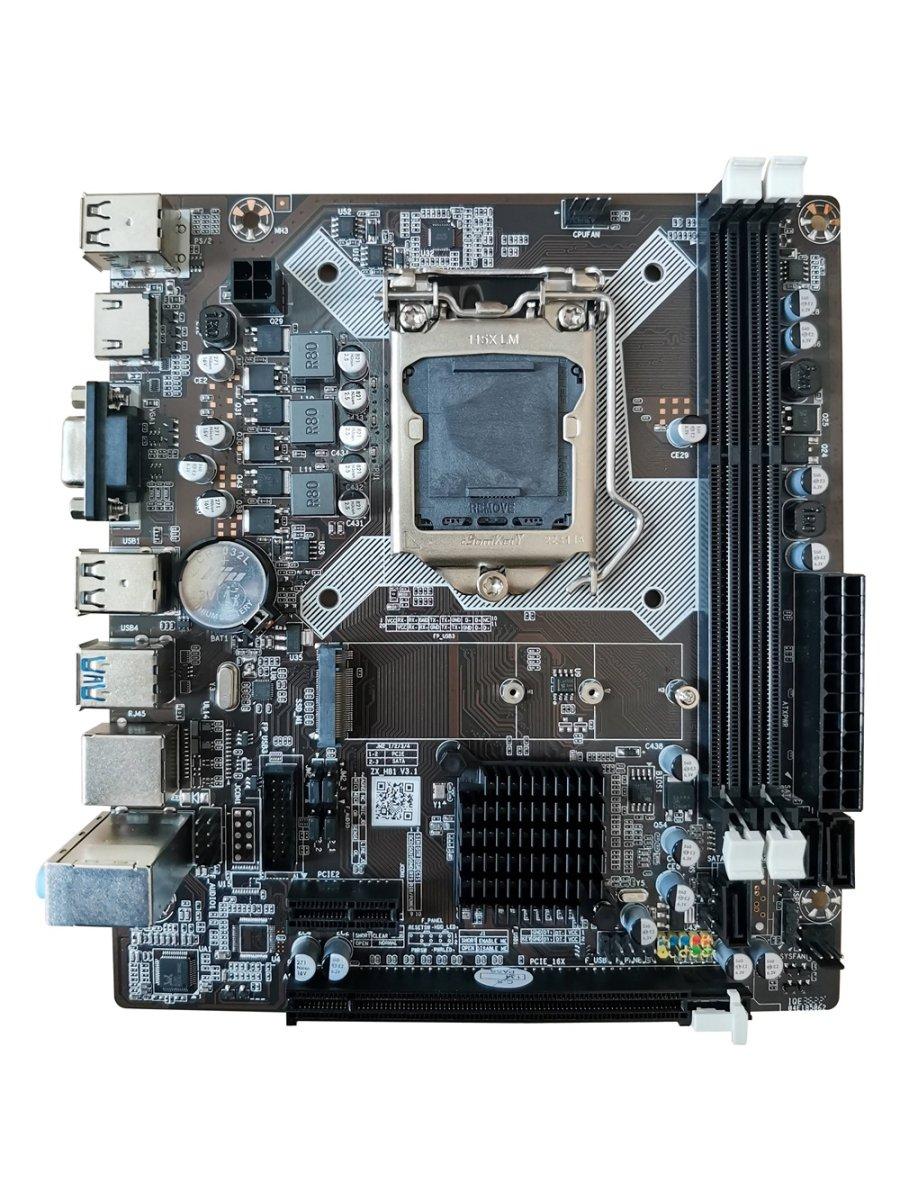

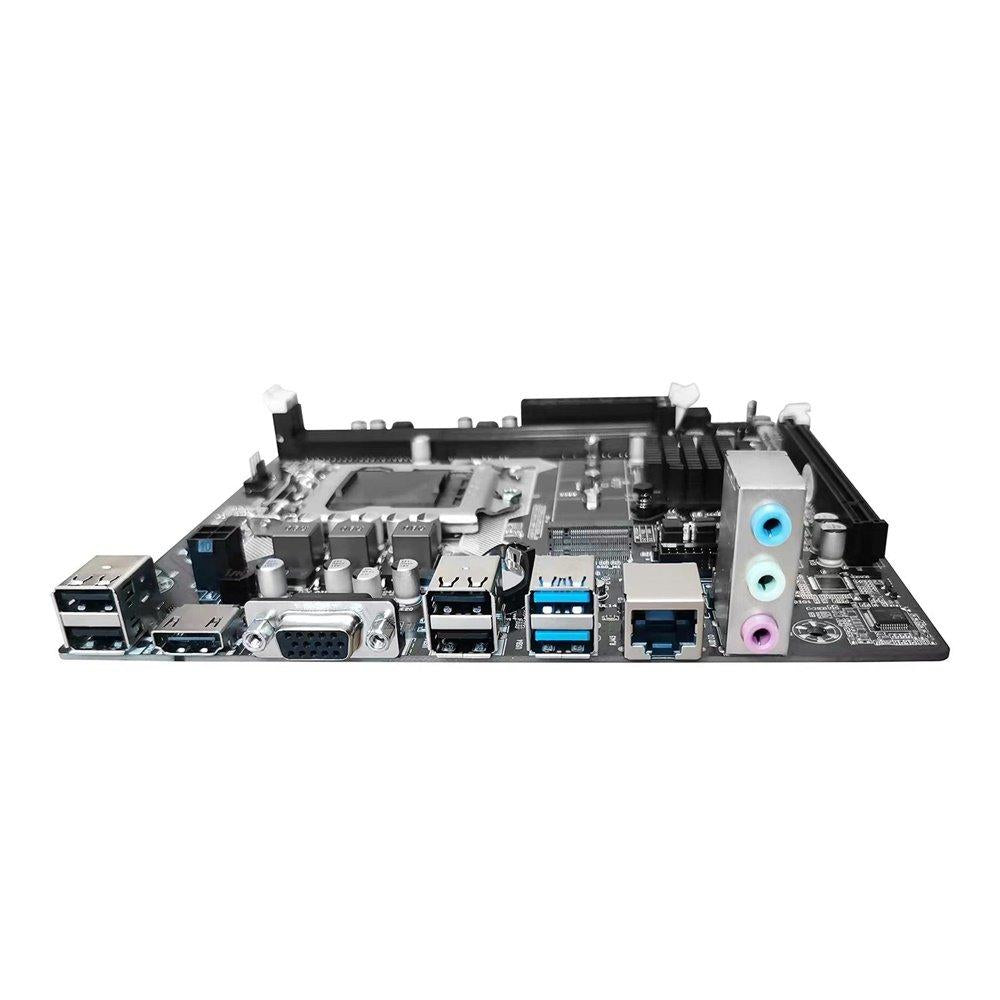

Arktek Intel H81 Motherboard
CPU Support: Support Intel® Core i7/i5/i3/Pentium®/ Celeron® processors in the LGA1150package.
Support Intel 4th generation multi-core processors
Chipset: Intel H81 Chipset
On-Board Graphics: Integrated Graphics Processor
Memory: Dual Channel DDR3 1066/1333/1600MHz, Supports non-ECC, un-buffered memory
DIMM: 2 x Memory Slots (Max. up to 8GB each)
LAN: Onboard Realtek® RTL8105E/8111E Gigabit 100/1000 Mbps (Optional)
Audio: Onboard Realtek® 662 6-channel HD Audio Codec
Front Panel audio-out,mic-in jack
SATA: 3 x SATA, 1xM.2 supports NVME+NGFF
ON-Board Pinheaders /Connectors:
1 x USB 2.0 pinheader supports additional 2 USB 2.0 ports
1 x Front Panel Audio pinheader
Slots: 1 x PCI Express x16 slot
BIOS: UEFI BIOS
Form Factor: Micro-ATX (19 X 17 cm)
Mounting: 6 mounting holes
