2KW 25.6V 100AH LITHIUM + SRG PROTECT

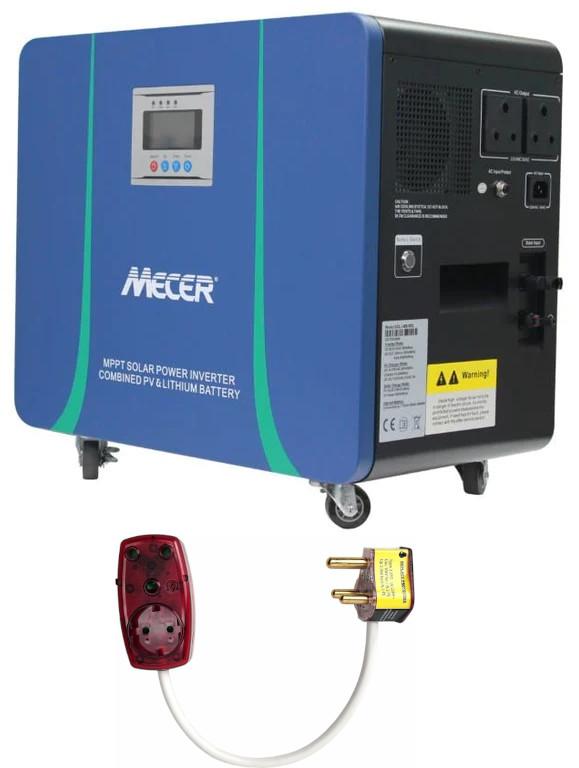

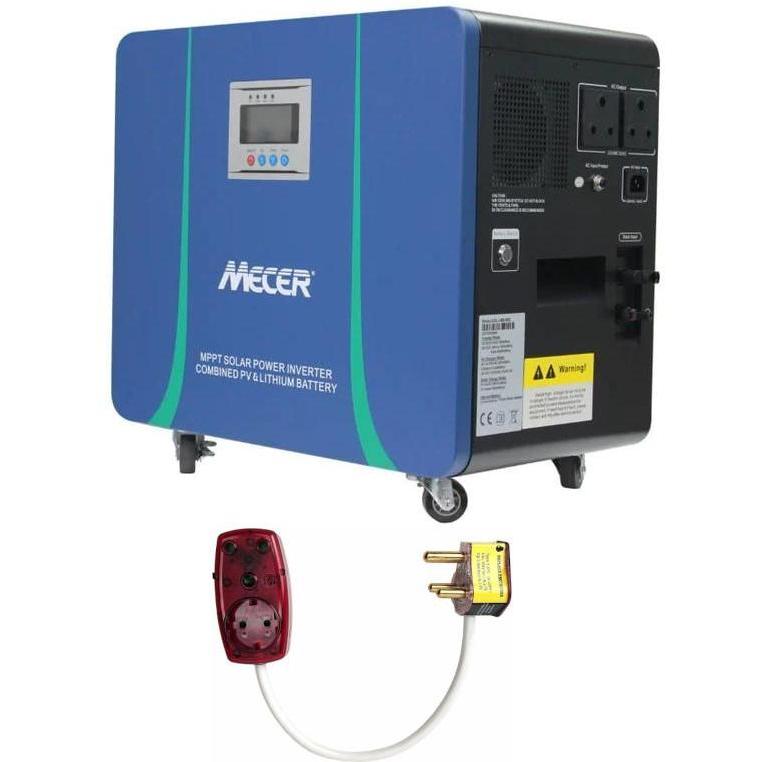

MECER 2KVA 2Kw 25.6V 100Ah LITHIUM BATTERY 820W MPPT TROLLEY INVERTER W/ SURGE PROTECTION PLUG

RATED POWER: 2000VA / 2000W

BATTERY CAPACITY: 1X 100Ah

BATTERY VOLTAGE: 26.5V DC

BATTERY CYCLE LIFE: 2000 CYCLES @ DOD (DEPTH OF DISCHARGE) 80%

INPUT VOLTAGE RANGE: 170-275VA

MAINS CURRENT CHARGE: 10A

FREQUENCY RANGE: 45-65Hz

OUTPUT VOLTAGE: 230V AC

FREQUENCY RANGE: 50/60Hz

OUTPUT WAVE FORM: PURE SINE WAVE w/ SOLAR CHARGE CONTROLLER

SOLAR CHARGER TYPE: MPPT

MAXIMUM PV ARRAY POWER: 840W

NUMBER OF MPPTs: 1

MPPT RANGE @ OPERATING VOLTAGE: 35 ? 100V DC

MAXIMUM SOLAR CURRENT CHARGER: 30A (MAX)

FLOATING CHARGE VOLTAGE: 28.4V DC

DC OUTPUT

LOW VOLTAGE RECOVERY: 26.8V DC

LOW VOLTAGE PROTECTION: 22.4V DC

5V DC USB OUTPUT: 2x USB2.0, MAX 2A

12V DC OUTPUT PORTS: 2x MAX 2A

PHYSICAL SPECIFICATIONS

HEAT DISSIPATION / COOLING: INTELLIGENT EXHAUST FAN (TEMPERATURE CONTROLLED)

DIMENSIONS W x D x H (mm): 480 x 192 x 410

PACKING SIZE W x D x H (mm): 527 x 277 x 475

NET WEIGHT (kgs): 45kgs

GROSS WEIGHT (kgs): 48kgs

Estimated runtimes:

100W = 20h

150W = 13h

200W = 10h

400W = 5h

600W = 3h

1000W = 2h

2000W = Max load

- 6 month carry-in warranty

- Pure Sinewave / Built-in solar charge (Lithium battery)
